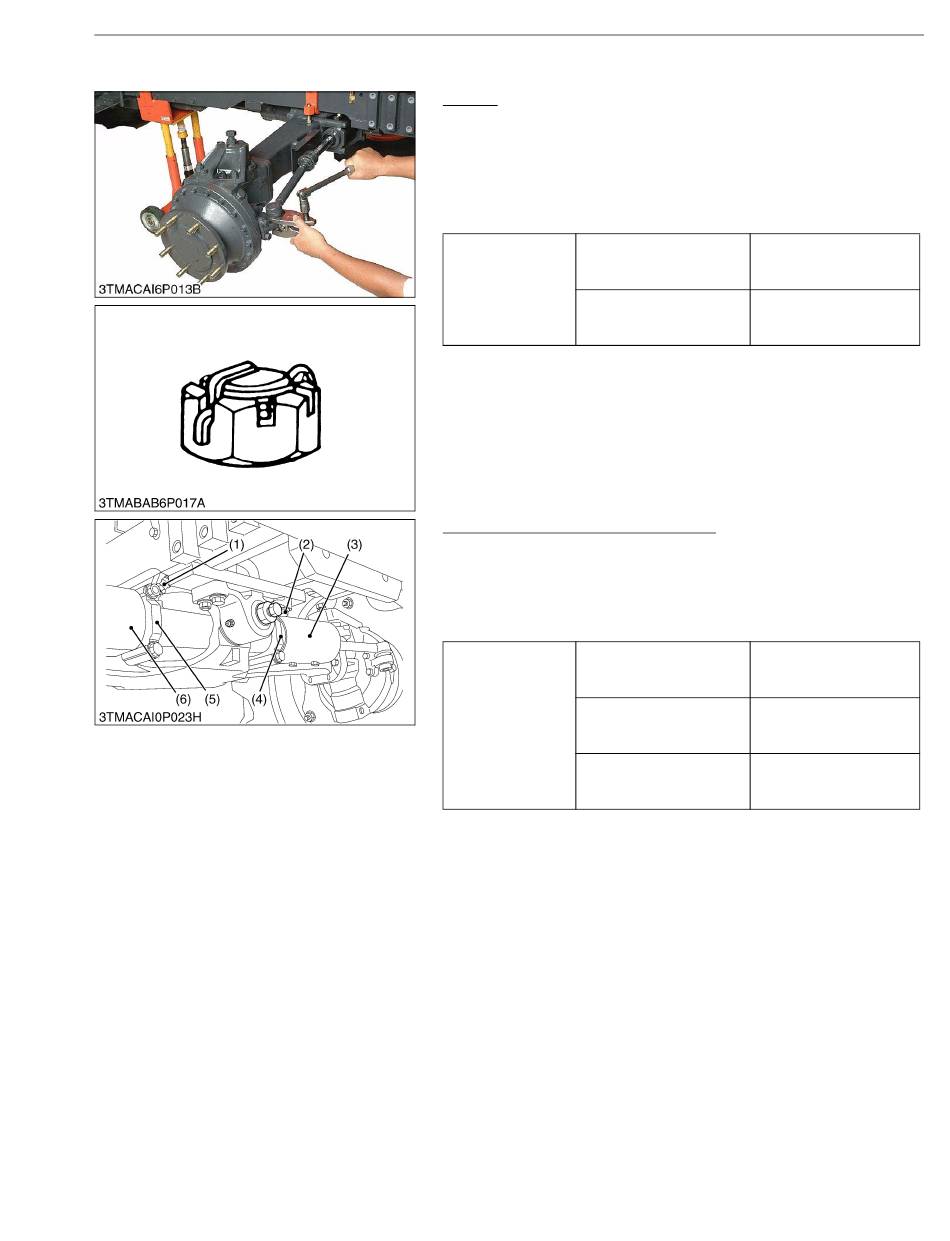

(3) Removing Steering Cylinder

Tie-rod
1. Pull out the cotter pin and remove the tie-rod end slotted nuts.
2. Remove the tie-rod with a tie-rod end lifter (Code No. 07909-
39051).
(When reassembling)
• Replace cotter pin with a new one.
• Bend the cotter pin as shown in the figure.
Tie-rod end slotted nut
Tightening torque
Tie-rod joint lock nut
Power Steering Hoses and Cylinder
1. Remove the cylinder cover (3), (6).
2. Disconnect the turning delivery hose (1), (2).
3. Remove the cylinder bracket (4), (5).
4. Take out the cylinder.
(When reassembling)
Turning delivery hose
retaining nut
Cylinder cover mounting
Tightening torque
screw
Cylinder bracket mounting
screw
(1) Turning Delivery Hose RH
(2) Turning Delivery Hose LH
(3) Cylinder Cover LH
7-S9
STEERING
157 to 176 N·m
16.0 to 18.0 kgf·m
116 to 130 lbf·ft
167 to 196 N·m
17.0 to 20.0 kgf·m
123 to 144 lbf·ft
W1012890
22 to 27 N·m
2.2 to 2.8 kgf·m
16 to 20 lbf·ft
48 to 55 N·m
4.9 to 5.7 kgf·m
36 to 41 lbf·ft
124 to 147 N·m
12.6 to 15.0 kgf·m
91.2 to 108 lbf·ft
(4) Cylinder Bracket LH
(5) Cylinder Bracket RH
(6) Cylinder Cover
W1013465
