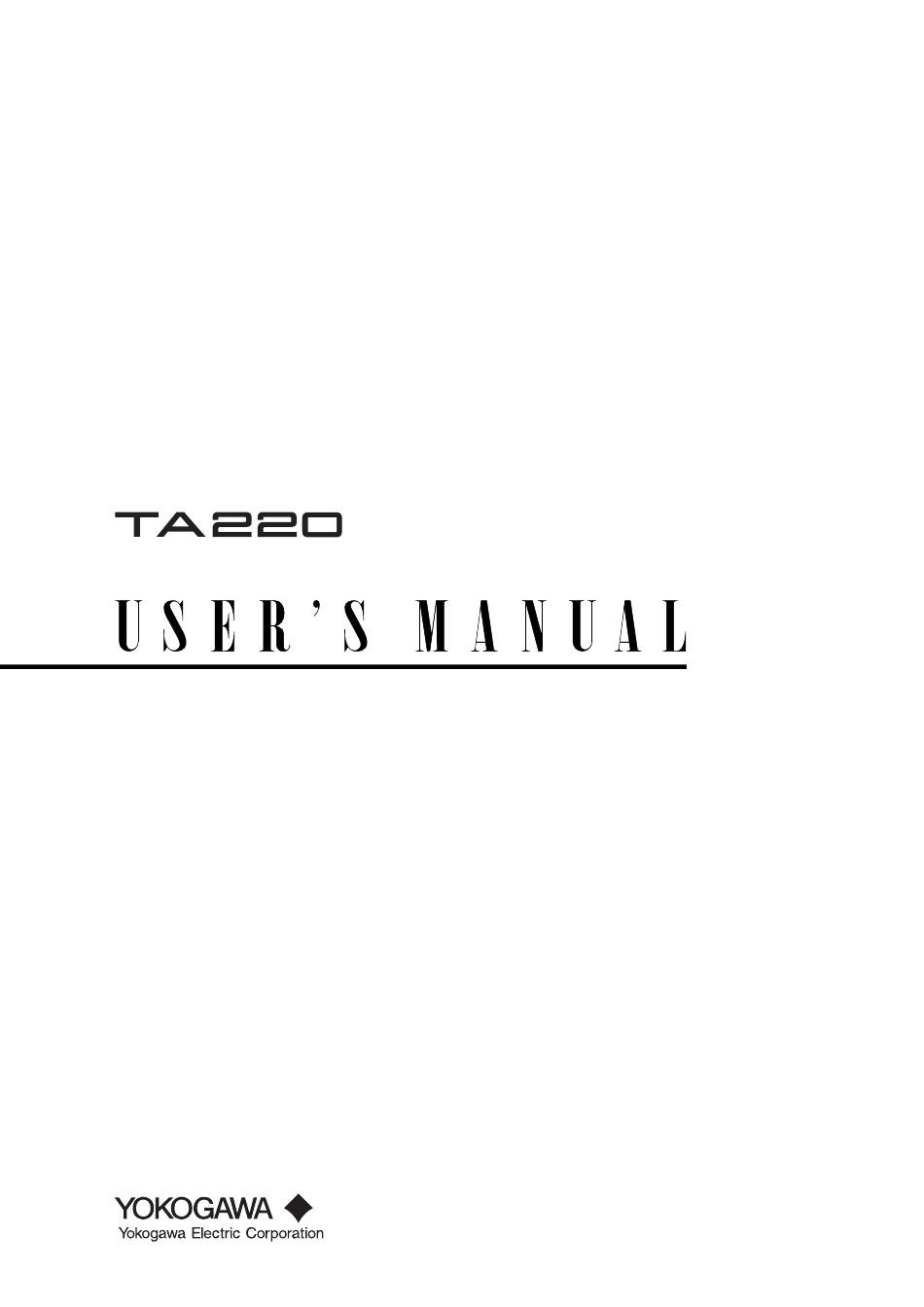

Page 1 Digital Jitter Meter IM 704610-01E 3rd Edition...
Page 2 Product Registration Thank you for purchasing YOKOGAWA products. YOKOGAWA provides registered users with a variety of information and services. Please allow us to serve you best by completing the product registration form accessible from our homepage. http://www.yokogawa.com/tm/ PIM 103-01E...
Page 3: Foreword
After reading this manual, keep it in a convenient location for quick reference in the event a question arises. There are two manuals for the TA220 including this one. If the option function is installed, please read both manuals. Manual Title Manual No.
Page 4: Checking The Contents Of The Package
Option* /LEQ Limit equalizer for BD * For information on the option, see the TA220 Digital Jitter Meter Option Function User’s Manual (IM 704610-51E). Also, the option cannot be selected for products with suffix code - BDS. NO. (Instrument Number) When contacting the dealer from which you purchased the instrument, please give them the instrument number.
Page 5 Checking the Contents of the Package Standard Accessories The following accessories are included in the package. Part Name Model/Part Number Qty. Notes Power cord One of the following power cords is included according to the suffix code on the previous page. Spare fuse for power supply A1114EF 250 V, 5 A, time lag...
Page 6: Safety Precautions
If the instrument is used in a manner not specified in this manual, the protection provided by the instrument may be impaired. YOKOGAWA Electric Corporation assumes no liability for the customer’s failure to comply with these requirements.
Page 7 To prevent the possibility of electric shock or fire, be sure to use the power cord supplied by YOKOGAWA. The main power plug can only be plugged into an outlet with a protective grounding terminal. Do not disable the protection feature of the instrument by using an extension cord without protective grounding.
Page 8: Waste Electrical And Electronic Equipment
With reference to the equipment types in the WEEE directive Annex 1, this product is classified as a ÅgMonitoring and Control instrumentationÅh product. Do not dispose in domestic household waste. When disposing products in the EU, contact your local Yokogawa Europe B. V. office. IM 704610-01E...
Page 9: Conventions Used In This Manual
Conventions Used in This Manual Safety Markings The following markings are used in this manual. Improper handling or use can lead to injury to the user or damage to the instrument. This symbol appears on the instrument to indicate that the user must refer to the user’s manual for special instructions.
Page 10 Conventions Used in This Manual Digital Numbers and Characters Since the instrument’s red-colored display is a 7-segment LED, it displays numbers, alphabetical characters, and mathematical operators in a simplified form as shown below. (Some characters are not used at all by the instrument.) ^(Exponent) Lowercase c Lowercase h...
Page 11: Flowchart Of Operation
Flowchart of Operation The figure below is provided to familiarize the first-time user with the general flow of the TA220 operation. For a more detailed description of each item, see the relevant section. Preparing the Instrument Preparing the Instrument Installing the instrument Section 3.2...
Page 12: Table Of Contents
Contents Foreword ............................i Checking the Contents of the Package ................... ii Safety Precautions .........................iv Waste Electrical and Electronic Equipment ..................vi Conventions Used in This Manual ....................vii Flowchart of Operation ........................ix Chapter 1 Names and Functions of Parts Front and Rear Panels .....................
Page 13 Contetns Chapter 6 Storing and Recalling Setup Information Storing Setup Information ....................6-1 Recalling Setup Information ..................... 6-2 Chapter 7 Signal Output DC Output of Jitter Ratio ....................7-1 Measurement of the RF Signal Voltage Level and DC Output of the Voltage Level ..7-6 Outputting Other Signals ....................
Page 14 Contetns 10.3 Status Report ....................... 10-34 10.3.1 Regarding the Status Report ................. 10-34 10.3.2 Status Byte ....................10-35 10.3.3 Standard Event Register ................10-36 10.3.4 Extended Event Register ................10-37 10.3.5 Output Queue and Error Queue ..............10-38 10.4 Sample Program ......................10-39 10.4.1 Before Programming ..................
Page 15: Chapter 1 Names And Functions Of Parts
Outputs the RF signals input to the measurement input terminal as DC LOCK signals. -> (section 7.2) MODEL SUFFIX 100-120V/200-240V AC YOKOGAWA Made in Japan 100VA MAX 50/60Hz FUSE 250V T 5A Jitter ratio DC output terminal Outputs the jitter ratio as a DC signal. -> (section 7.1) Power connector ->...
Page 16: Keys
Keys Measurement Condition Settings L.MARK R.MARK SHIFT+< (L.MARK) key and SHIFT+> (R.MARK) key -> section 4.1 When using the measurement function PW, these key combinations are used to set the upper and lower limits of the pulse width to be measured. MEDIA key ->...
Page 17 1.2 Keys Displaying Measurement Results MEASURE key -> sections 5.1 to 5.2 L.MARK Changes the displayed measured result. DISP OFF MEASURE SHIFT+MEASURE (DISP OFF) key -> section 5.2 JUDGE Turns OFF displays 1 and 2 (for numerical values) and the unit indicator. BD x1 SCALE key ->...
Page 18: Chapter 2 Explanation Of Functions
Explanation of Functions System Configuration and Block Diagram System Configuration • Remote control • Data acquisition and analysis Communication (GP-IB/Ethernet) TA220 Input inhibit signal Input external arming signal DC output of jitter ratio DC output of the RF signal voltage level...
Page 19 Measurement/computation circuit MONITOR The TA220 is a jitter measuring instrument that utilizes signal processing circuits (auto slicer, equalizer, and PLL) for support of the Blu-ray Disk standard (hereinafter, BD) of next-generation high precision optical discs. When BD-standard RF signals are input to the instrument, the PLL circuit regenerates the clock signal enabling measurement of the data to clock (D-to-C) jitter.
Page 20: Measurement Principle
Measurement Principle Example with Pulse Width Measurement A time shorter than the period of the measurement clock is called the fractional time. In general, since the measured signal and the measurement clock are not synchronized, fractional time exists both at the beginning and at the end of measurements. This instrument generates a “fractional pulse”...
Page 21: Measurement Functions (Measurement Items)
Measurement Functions (Measurement Items) Pulse Width Jitter <<For procedures, see section 4.1>> Pulse Width Measurement You can measures the pulse width from the rising edge of the slope* to the next falling edge of the slope (positive side) or from the falling edge of the slope to the next rising edge of the slope (negative side) of the data signal.
Page 22 2.3 Measurement Functions (Measurement Items) D-to-C Jitter <<For procedures, see section 4.1>> Measuring Phase Difference You can measure the phase (time) difference from the rising (or falling) slope of the data signal to the first rising slope of the clock signal. •...
Page 23 2.3 Measurement Functions (Measurement Items) D-to-C Jitter Excluding 2T <For the setup procedure, see section 4.1> This is one of the functions available for measuring D-to-C jitter. D-to-C jitter is measured, excluding the phase difference of data signals having pulse widths of two times the clock signal period (2T) or less.
Page 24: Measurement Conditions
Measurement Conditions Measurement Block The TA220 repeats a three-part process of measurement, data processing, and display. The smallest unit that is measured during the first part of this process is called a measurement block. In the figure below, N is the number of samples (number of data) acquired in a single pass of the process, and the measurement, data processing, and display of these samples is considered to be one block of measurement.
Page 25 RF signal applied to the measurement input terminal. Using the slicer of the TA220, the RF signal is binarized by setting the portion of the signal that is greater than the given slice level* to the positive side and the portion that is less than the slice level to the negative side.
Page 26 2.4 Measurement Conditions Trigger Mode and Slice Level <<For procedures, see section 4.4>> When measuring the pulse width or phase difference of a single pulse, you can select the level of the data signal at which to make the measurement (activate the trigger). Slice level refers to the signal level used to binarize the RF signal.
Page 27 Auto Arming (Internal Arming) The internal signal of the TA220 is the arming source. Arming is the cue used to start the first measurement (the first trigger). External Arming Arming is activated when an external signal (arming source) is applied to the external arming input terminal.
Page 28 2.4 Measurement Conditions Inhibit <<For procedures, see section 4.8>> You can inhibit measurements by applying an external signal to the inhibit signal input terminal. This is possible even while the gate is open or during measurement after arming activation. You can also select which polarity of the signal, positive or negative, is used to inhibit measurements.
Page 29 2.4 Measurement Conditions PLL Hold <<For procedures, see section 4.9>> The PLL hold function maintains the frequency of the clock signal regenerated in the PLL circuit when Inhibit is active. If RF signals whose clock signals cannot be regenerated in the PLL circuit are input to the measurement input terminal when Inhibit is active, once Inhibit is cleared, if a normal RF signal whose clock signal can be regenerated in the PLL circuit is then introduced, the clock signal will be generated normally.
Page 30: Display
0.5 ns to 5.0 µs. The range is shown on Display 2. Display of Numerical Values and Characters The TA220 displays numerical values and alphabetical characters such as the jitter, jitter ratio, average value, specified value, error code, and firmware version on Display 1 or Display 2.
Page 31: Signal Output
Signal Output DC Output of the Jitter Ratio <<For procedures, see section 7.1>> DC Output of the Jitter Ratio The jitter ratio of the selected measurement function can be linearly converted to DC voltage (0 to 5 V) and output from the jitter ratio DC output terminal on the rear panel. You can also change the jitter ratio that corresponds to 0 V and 5 V.
Page 32 2.6 Signal Output Measurement of the RF Signal Voltage Level and DC Output of the Voltage Level <<For procedures, see 7.2 section >> Voltage Level Measurement RF signals input to the amplitude measurement circuit pass through a filter than removes noise and overshoot.
Page 33: Other Functions
8 and 9, and the explanation of commands in chapter 10>> The TA220 comes standard with GP-IB and Ethernet interfaces. You can output the jitter or jitter ratio of the selected measurement function to a PC or control the TA220 from an external controller.
Page 34: Chapter 3 Preparations For Measurement And Common Operations
OFF the power switch. From the rear panel, check for and remove any foreign object that may be obstructing the cooling fan. If error message 906 appears when you turn ON the power switch again, it is probably a malfunction. Contact your YOKOGAWA dealer. Handle the Power Cord Correctly Nothing should be placed on top of the power cord.
Page 35 3.1 Handling Precautions General Handling Precautions Do Not Place Objects on Top of the Instrument Never place any objects containing water on top of the instrument. Doing so can lead to malfunction. Do Not Apply Physical Shock or Vibration to the Instrument Do not apply physical shock or vibration to the instrument.
Page 36: Installing The Instrument
• It is possible to install the TA220 with the stand in the upright position. Please note that the instrument specifications are based on horizontal placement. When using the stand, pull the stand forward until it locks (perpendicular to the bottom surface of the instrument).
Page 37 3.2 Installing the Instrument Installation Location and Environment The instrument must be installed where the following conditions are met. Orientation and Stability Install the instrument in a stable, horizontal place. Accurate measurements may be hindered if the instrument is used in an unstable place or tilted position. Ventilation Inlet holes are located on the top and bottom of the instrument.
Page 38 80% RH whenever possible. Rack Mounting When rack mounting the TA220, use the rack mount kit that is sold separately. For the procedure on attaching the TA220 to a rack, see the User’s Manual included in the rack mount kit.
Page 39: Connecting The Power Supply
Maximum power consumption 150 VA * The TA220 can use a 100-V or a 200-V power supply. Check that the voltage supplied to the TA220 is less than or equal to the maximum rated voltage of the provided power cord (see page ii) before using it.
Page 40: Turning The Power Switch On And Off
OFF after the previous session. Note If the TA220 does not operate as described above when the power switch is turned ON, turn OFF the power switch and check the following points: •...
Page 41: Connecting Cables And A Probe
3.6. Failure to do so will cause unstable gain across different frequencies, thereby preventing correct measurement. Phase correction of the probe must be performed if either the probe or the TA220 is altered. IM 704610-01E...
Page 42: Correcting The Probe Phase
DL1740, or the RF signal monitor output terminal of the TA220. This may cause damage to the internal circuitry. Check that the TA220 and DL1740 are turned OFF and connect them as shown in the figure.
Page 43 Consequently, a correct waveform cannot be input to the measurement circuit of the TA220. The input capacity of each probe is not necessarily all the same. Therefore, the probe has a variable capacitor (trimmer) that allows the input capacity to be adjusted.
Page 44: Entering Numerical Values
Explanation You can set the numerical value within the range of each item. You can confirm that the TA220 is ready to accept numerical values when a single digit of the numerical value on the display is blinking. Note You can reset the specified numerical value to the initial value (factory default setting).
Page 45: Chapter 4 Measurement Condition Settings
Chapter 4 Measurement Condition Settings Selecting the Measurement Function and Polarity <<For a functional description, see section 2.3>> Procedure Display 2 Display 1 L.MARK R.MARK The phrase, “rotary knob & <>” is used in the following DISP OFF ns ms explanation to instruct the user LOCK SEC RANGE...
Page 46 4.1 Selecting the Measurement Function and Polarity Explanation You can select the measurement function (measurement parameter). For each function, you can select the polarity of the signals to measure. Data-to-Clock Phase Difference (D-to-C) Jitter or Data-to-Clock Phase Difference (E2T) Jitter Excluding 2T You can set the item to be measured as either the phase difference jitter between the measurement input signal (RF signal) and clock signal (D-to-C), or the phase difference jitter* between the measurement input signal excluding 2T and clock signal (E2T).
Page 47: Selecting The Input Impedance And Input Coupling
Selecting the Input Impedance and Input Coupling <<For a functional description, see section 2.4>> Procedure Display 2 Display 1 L.MARK R.MARK The phrase, “rotary knob & <>” is used in the following DISP OFF ns ms explanation to instruct the user LOCK SEC RANGE MEASURE...
Page 48: Equalizer Settings
Setting range: 3.0 to 9.0 dB (in steps of 0.1 dB) Note • The frequency characteristics of the internal equalizer circuit of the TA220 conform to Part 1 Ver. 1.0 of the Blu-ray Disc standard (1 x speed). • For information on the limit equalizer option, see the option function user’s manual (IM 704610-51E).
Page 49: Setting The Trigger Mode And Slice Level
Setting the Trigger Mode and Slice Level <<For a functional description, see section 2.4>> Procedure Display 2 Display 1 L.MARK R.MARK The phrase, “rotary knob & <>” is used in the following DISP OFF ns ms explanation to instruct the user LOCK SEC RANGE MEASURE...
Page 50 4.4 Setting the Trigger Mode and Slice Level • AUTO and MAN (Auto + Manual Mode) The RF signal is binarized using the slice level obtained by superimposing a given offset level to the slice level that is detected by the auto slice function. The offset level is a separate level from the slice level of manual mode in the previous section, and when the trigger mode is set to auto + manual, the following range applies.
Page 51: Setting The Gate Time
Setting the Gate Time <<For a functional description, see section 2.4>> Procedure Display 2 Display 1 L.MARK R.MARK The phrase, “rotary knob & <>” is used in the following DISP OFF ns ms explanation to instruct the user LOCK SEC RANGE MEASURE to enter numerical setting values JUDGE...
Page 52 4.5 Setting the Gate Time • The setting for the gate time and number of blocks during block sampling is restricted such that maximum number of samples that can be acquired by the instrument is not exceeded. For details, see the Note in section 4.7. Loading the Measured Values When D-to-C High Speed Calculation is ON •...
Page 53: Setting The Arming
Setting the Arming <<For a functional description, see section 2.4>> Procedure Display 2 Display 1 L.MARK R.MARK The phrase, “rotary knob & <>” is used in the following DISP OFF ns ms explanation to instruct the user LOCK SEC RANGE MEASURE to enter numerical setting values JUDGE...
Page 54 Auto Arming (Internal Arming) If you turn OFF both the indicators, auto arming is activated. The internal signal of the TA220 is the arming source. Arming is the cue used to start the first measurement (the first trigger). External Arming Arming is activated when an external signal (arming source) is applied to the external arming input terminal.
Page 55: Block Sampling Settings
Block Sampling Settings <<For a functional description, see section 2.4>> Procedure Display 2 Display 1 L.MARK R.MARK The phrase, “rotary knob & <>” is used in the following DISP OFF explanation to instruct the user ns ms LOCK SEC RANGE MEASURE to enter numerical setting values JUDGE...
Page 56: Setting Inhibit
Setting Inhibit <<For a functional description, see section 2.4>> Procedure Display 2 Display 1 L.MARK R.MARK The phrase, “rotary knob & <>” is used in the following DISP OFF ns ms explanation to instruct the user LOCK SEC RANGE MEASURE to enter numerical setting values JUDGE using the knob and arrow keys.
Page 57 470 Ω (Inhibit signal input terminal) (TTL) 74LS14 or equivalent 10 kΩ CAUTION Do not apply a voltage that exceeds the allowable input voltage range to the inhibit signal input terminal. This may cause damage to the TA220. 4-13 IM 704610-01E...
Page 58: Other Functions
Other Functions <<For a functional description, see section 2.4>> Procedure Display 2 Display 1 L.MARK R.MARK The phrase, “rotary knob & <>” is used in the following DISP OFF ns ms explanation to instruct the user LOCK SEC RANGE MEASURE to enter numerical setting values JUDGE using the knob and arrow keys.
Page 59 4.9 Other Functions Explanation You can choose to turn the PLL hold function, D-to-C high speed calculation, AGC circuit, or DC clamp function ON or OFF. PLL Hold The PLL hold function maintains the frequency of the clock signal regenerated in the PLL circuit when Inhibit is active.
Page 60: Chapter 5 Displaying Measured Results
The jitter can be read on the lower scale of the meter (s). Explanation The TA220 continuously takes measurements when the power is turned ON. The meter needle indicates the jitter ratio or jitter of the measurement function that was selected in section 4.1.
Page 61 5.1 Meter Display Note • The shortest period of jitter than can be measured by the instrument is 50 ms (or 2 ms when D-to-C high speed calculation is ON). The meter needle may not respond to all changes in the measured value. •...
Page 62: Turning Numerical Value Display And/Or Character Display On And Off
Turning Numerical Value Display and/or Character Display ON and OFF <<For a functional description, see section 2.5>> Procedure Display 2 Display 1 L.MARK R.MARK The phrase, “rotary knob & <>” is used in the following DISP OFF ns ms explanation to instruct the user LOCK SEC RANGE MEASURE...
Page 63 Even when the numerical display is turned OFF, the display shows the setup values when setting the TA220. For the setup procedures of each type, see the corresponding sections in chapter 4. Error code and version information is still displayed even if numerical value display is turned OFF.
Page 64: Displaying The Jitter Ratio Determination
Displaying the Jitter Ratio Determination <<For a functional description, see section 2.5>> Procedure Display 2 Display 1 L.MARK R.MARK The phrase, “rotary knob & <>” is used in the following DISP OFF ns ms explanation to instruct the user LOCK SEC RANGE MEASURE to enter numerical setting values...
Page 65: Chapter 6 Storing And Recalling Setup Information
The number of sets that can be stored (memory numbers) is seven, from 0 to 6. Note If you initialize all setup information of the TA220 to factory default settings (see section 11.2), the stored setup information is also initialized. The setup information of all seven sets is reset to the factory default condition.
Page 66: Recalling Setup Information
Recalling Setup Information Procedure Display 2 Display 1 L.MARK R.MARK The phrase, “rotary knob & <>” is used in the following DISP OFF explanation to instruct the user ns ms LOCK SEC RANGE MEASURE to enter numerical setting values JUDGE using the knob and arrow keys.
Page 67: Chapter 7 Signal Output
Chapter 7 Signal Output DC Output of Jitter Ratio <<For a functional description, see section 2.6>> Procedure Display 2 Display 1 L.MARK R.MARK The phrase, “rotary knob & <>” is used in the following DISP OFF ns ms explanation to instruct the user LOCK SEC RANGE MEASURE...
Page 68 7.1 DC Output of Jitter Ratio Setting the Jitter Ratio Determination Level For the procedure for setting the jitter ratio determination level, see section 5.3. Setting the Average coefficient of the DC Output Filter Turn the rotary knob to select DC ave. Press >...
Page 69 7.1 DC Output of Jitter Ratio Explanation CAUTION Do not apply external voltage to the output terminal. This may cause damage to the TA220. DC Output Circuit Item Description Connector type Output impedance 600 Ω (typical value*) Output level 0 to 5 VDC, given that the monitor equipment receives the signal at high impedance (approximately 1 MΩ...
Page 70 7.1 DC Output of Jitter Ratio DC Output Mode You can select whether jitter ratio DC output or determination output is output from the jitter ratio DC output terminal (JITTER DC OUT) on the rear panel. • Jitt (Jitter Ratio DC Output) The jitter ratio of the selected measurement function can be converted to DC voltage (0 to 5 V) and output from the jitter DC output terminal on the rear panel.
Page 71 7.1 DC Output of Jitter Ratio Average Coefficient of the DC Output Filter You can take the moving average of the jitter ratio that has been measured. When the DC output fluctuates due to instability in the measured jitter ratio, this function suppresses the degree of fluctuation.
Page 72: Measurement Of The Rf Signal Voltage Level And Dc Output Of The Voltage Level
Measurement of the RF Signal Voltage Level and DC Output of the Voltage Level <<For a functional description, see section 2.6>> Procedure Display 2 Display 1 L.MARK R.MARK The phrase, “rotary knob & <>” is used in the following DISP OFF ns ms explanation to instruct the user LOCK...
Page 73 7.2 Measurement of the RF Signal Voltage Level and DC Output of the Voltage Level Setting the Voltage Level DC Output Range • Setting the Upper Limit of the Voltage Level DC Output Range Turn the rotary knob to select LevelHi. Press >...
Page 74 7.2 Measurement of the RF Signal Voltage Level and DC Output of the Voltage Level Explanation CAUTION Do not apply external voltage to the output terminal. This may cause damage to the TA220. DC Output Circuit Item Description Connector type Output impedance 600 Ω...
Page 75 7.2 Measurement of the RF Signal Voltage Level and DC Output of the Voltage Level Selecting the Voltage Level DC Output Mode You can select whether voltage level DC output or determination output is output from the voltage level DC output terminal (LEVEL DC OUT) on the rear panel. •...
Page 76 7.2 Measurement of the RF Signal Voltage Level and DC Output of the Voltage Level Upper and Lower Limit of the Voltage Level Determination Range You can set the upper and lower limit of the voltage level determination range as follows. Setting range: 0.00 to 5.000 V (in steps of 0.001 V) If the lower limit is set equal to or higher than the upper limit (or vice versa), the upper and lower limits are set to the same value.
Page 77: Outputting Other Signals
Outputting Other Signals CAUTION Do not apply external voltage to the output terminal. This may cause damage to the TA220. Connect a BNC cable from the output terminal on the rear panel of the instrument to a monitoring device. Monitor Output of RF Signals You can output the RF signals applied to the measurement input terminal as-is from the RF signal monitor output terminal (MONITOR OUT) on the rear panel.
Page 78 7.3 Outputting Other Signals Equalized RF signal monitor output circuit +5 V EQUALIZED 50 Ω (Equalized RF signal monitor output terminal) (50 Ω) –5 V Outputting Data Signals (Binarized Signals) You can output the data signal obtained through the binarization of the RF signal from the data signal output terminal (SLICED RF OUT) on the rear panel at TTL levels.
Page 79: Chapter 8 Gp-Ib Communications
Chapter 8 GP-IB Communications About the IEEE.488.2-1992 Standard The GP-IB interface for this instrument complies with (6)Items that include function elements consisting the IEEE 488.2-1992 standard. This standard requires of commands and elements with compound that the following twenty-three items be included with headers documentation.
Page 80 8.1 About the IEEE.488.2-1992 Standard (18)The length of the *RDT and *RDT? resource names *RDT and *RDT? are not supported. (19)The change in the status due to *RST, *LRN?, *RCL, and *SAV *RST See section 10.2.20, “Common Command Group.” *LRN?, *RCL, *SAV These common commands are not supported.
Page 81: Gp-Ib Interface Functions And Specifications
GP-IB Interface Functions and Specifications GP-IB Interface Functions GP-IB Interface Specifications Listener Function • Electrical and Mechanical Specifications • This function allows you to perform the same Conforms to IEEE St’d 488-1978 settings that can be carried out using the panel keys •...
Page 82: Connecting The Gp-Ib Cable
Connecting the GP-IB Cable GP-IB Cable Points to Note When Connecting a Probe The GP-IB connector of the instrument is a 24-pin • Firmly tighten the screws on the GP-IB cable’s connector conforming to the IEEE 488-1978 Standard. connector. Use a GP-IB cable that meets the IEEE 488-1978 •...
Page 83: Selecting Gp-Ib Communications And Setting The Gp-Ib Address
When connecting via GP-IB, each device has its own unique system-internal GP-IB address. This address is used to differentiate the devices. When connecting the TA220 to a PC or other device, you must specify a GP-IB address for the TA220. The available setting range is 0 to 30.
Page 84: Responses To Interface Messages
Responses to Interface Messages Interface Messages Responses to Interface Messages Interface messages are also called interface Response to Uniline Messages commands or bus commands, and are commands • IFC which are output from the controller. The following Clears talker and listener. Stops any data that may categories of messages exist.
Page 85: Chapter 9 Ethernet Communications
Chapter 9 Ethernet Communications Ethernet Interface Functions and Specifications Ethernet Interface Functions Ethernet Interface Specifications Receive Function Connector type: RJ-45 • You can enter the same settings that are available No. of ports using the front panel keys. Electrical and mechanical: Conforms to IEEE 802.3 •...
Page 86: Connecting To The Network
When using a UTP cable or STP cable (straight cable), be sure to use a category 5 or better cable. • Avoid connecting the PC directly to the TA220 without going through the hub or router. Operations are not guaranteed for communications using a direct connection. IM 704610-01E...
Page 87: Entering The Tcp/Ip And Timeout Settings, And Confirming The Mac Address
Entering the TCP/IP and Timeout Settings, and Confirming the MAC Address Procedure Display 2 Display 1 L.MARK R.MARK The phrase, “rotary knob & <>” is used in the following DISP OFF explanation to instruct the user ns ms LOCK SEC RANGE MEASURE to enter numerical setting values JUDGE...
Page 88 9.3 Entering the TCP/IP and Timeout Settings, and Confirming the MAC Address Setting the Subnet Mask Turn DHCP OFF according to the procedure above before setting the IP address. Turn the rotary knob to select NetMsk1, NetMsk2, NetMsk3, or NetMsk4. The subnet mask is expressed in the same manner as the IP address, using four octets (each from 0 to 255), separated by a period as in 255.255.254.0.
Page 89 ON. IP Address (Internet Protocol Address) You can assign an IP address to the TA220. The setting cannot be assigned unless DHCP is turned OFF. • The IP address is an ID that is assigned to each device on an IP network such as the internet or an intranet.
Page 90 9.3 Entering the TCP/IP and Timeout Settings, and Confirming the MAC Address MAC Address A MAC address is a unique address that is pre-assigned to the TA220. You can check this MAC address. Setting the Timeout Time If access to the instrument is unavailable for the time specified here, the network connection to the instrument is automatically closed.
Page 91: Chapter 10 Communication Command
Chapter 10 Communication Command 10.1 Program Format 10.1.1 Syntactic Symbols 10.1.2 Messages Messages The following table contains symbols that are used for Transmission and reception between controller and syntax, mainly in section 10.2. These symbols are this instrument is carried out using messages. A called BNF (Backus-Naur Form) symbols.
Page 92 10.1 Program Format Response Messages <PMT> PMT stands for program message terminator. The Data that are sent from the instrument to the controller following three types are available. are called response messages. The following is the • NL (newline) format for response messages. Same as LF (Line Feed).
Page 93: Commands
10.1 Program Format 10.1.3 Commands Notes Regarding Sending and Receiving Messages Commands • When a program message is sent that does not contain a query, the next program message can be There are three types of commands (program headers) sent any time. that can be sent from the controller to the instrument.
Page 94 10.1 Program Format Writing Consecutive Commands Separating Commands with Groups When commands are separated with a terminator, it A group of commands having common compound means two program messages are sent. Therefore headers with hierarchically layered structure is called a even with consecutive commands of the same group, group.
Page 95: Response
10.1 Program Format 10.1.4 Response 10.1.5 Data Data When the controller sends a message unit that has a question mark (?) in its program header (query), the Data refers to the conditions and numbers that are instrument returns a response message to the query. preceded by a space, and before that, the header.
Page 96 10.1 Program Format <Voltage>, <Ti me>, <Phase>, <Percent> <Register> <Voltage>, <Ti me>, <Phase>, and <Percent> indicate <Register> is an integer, but can be expressed as a decimal values that have physical dimensions. You <Decimal>, or in <Hexadecimal>, <Octal>, or <Binary> can add <Multiplier>...
Page 97: Synchronization With The Controller
10.1 Program Format 10.1.6 Synchronization with the <Character String Data> Controller Unlike the predefined character strings of <Character data>, <Character string data> is an arbitrary character string. The character string is enclosed in single This instrument does not support overlap commands, quotation marks (' ) or double quotation marks ("...
Page 98 0 of the extended event register is set to “1.” Note On the TA220, the statistical data can be read during measurement without having to synchronize with the controller. The value queried in this case is the previous statistical value.
Page 99: Commands
10.2 Commands 10.2.1 Command List Command Function Page CALCulation Group :CALCulation:AVERage? Queries the average value. 10-12 :CALCulation:CONStt? Queries time width T. 10-12 :CALCulation:DEViation? Queries the deviation. 10-12 :CALCulation:DEVT? Queries the deviation/T value. 10-12 :CALCulation:FLUTter? Queries the σ/AVE (flutter) value. 10-12 :CALCulation:JITTer? Queries the σ/T (jitter ratio).
Page 100 10.2 Commands Command Function Page INPut Group :INPut? Queries all settings related to signal input. 10-21 :INPut:DATA? Queries all settings related to signal input (excluding the equalizer). 10-21 :INPut:DATA:COUPling Sets the input coupling or queries the current setting. 10-21 :INPut:DATA:IMPedance Sets the input impedance or queries the current setting.
Page 101 10.2 Commands Command Function Page :SAMPle:ARMing:SOURce Sets the arming source or queries the current setting. 10-28 :SAMPle:BLOCk? Queries all settings related to block sampling. 10-28 :SAMPle:BLOCk:SIZE Sets the number of blocks for block sampling or queries the current setting. 10-28 :SAMPle:BLOCk:STATe Turns block sampling ON and OFF or queries the current setting.
Page 102: Calculation Group
10.2 Commands 10.2.2 CALCulation Group This group consists of statistical computation related commands. :CALCulation AVERage CONStt DEViation DEVT FLUTter JITTer LEVel MAXimum MINimum PTOPeak SDEViation SNUMber :CALCulation:AVERage? :CALCulation:DEVT? Function Queries the average value. Function Queries the deviation/T value. Syntax :CALCulation:AVERage? Syntax :CALCulation:DEVT? Example...
Page 103 10.2 Commands :CALCulation:MAXimum? Function Queries the maximum value. Syntax :CALCulation:MAXimum? Example :CALCULATION:MAXIMUM? -> 1.1287E-7 Description If the statistical value is not valid, or if INPut:HISPeed:STATe (D-to-C high speed calculation) is ON, “NAN” is returned in response to a query. :CALCulation:MINimum? Function Queries the minimum value.
Page 104: Communicate Group
10.2 Commands 10.2.3 COMMunicate Group This group consists of communication related commands. There are no front panel keys that correspond to this group. :COMMunicate HEADer <Space> <NRf> LOCKout <Space> <NRf> REMote <Space> <NRf> VERBose <Space> <NRf> WAIT <Space> <Register> :COMMunicate? :COMMunicate:VERBose Function Queries all settings related to communications.
Page 105: Dcout Group
10.2 Commands 10.2.4 DCOut Group This group consists of DC output related commands. :DCOut MODE <Space> JITTer JUDGe CYCLe <Space> <NRf> COEFﬁcient <Space> <NRf> <NRf> PERCent JITTer <Space> <PCT> <PCT> <PCT> JUDGe PERCent <Space> RESult :DCOut? :DCOut:JITTer:PERCent Function Queries all DC output related settings. Function Sets the upper and lower limits for DC output of Syntax...
Page 106 10.2 Commands :DCOut:JUDGe:RESult? Function Queries the determination result. Syntax :DCOut:JUDGe:RESult? Example :DCOut:JUDGE:RESULT? -> GO Description 1. Returns GO if the measured jitter ratio is valid and equal to or lower than the determination level. 2. Returns NOGO if the measured jitter ratio is invalid or in excess of the determination level.
Page 107: Display Group
10.2 Commands 10.2.5 DISPlay Group This group consists of display-related commands. <Space> :DISPlay MEASure JITTer SDEViation AVERage CONStt LEVel USNum LSNum DELay PARameter AVERage <Space> <NRf> CONStt <Space> <NRf> DELay <Space> <NRf> <Space> <NRf> JITTer <Space> <NRf> LSNum <Space> <NRf> SDEViation <Space>...
Page 108 10.2 Commands :DISPlay? :DISPlay:PARameter:EQ Function Queries all settings related to the display. Function Sets the EQ display or queries the current Syntax :DISPlay? setting. Example :DISPLAY? Syntax :DISPlay:PARameter:EQ {<Boolean>} -> :DISPLAY:MEASURE JITTER Example :DISPLAY:PARAMETER:EQ ON ;PARAMETER:JITTER 1;SDEVIATION 1 :DISPLAY:PARAMETER:EQ? ;AVERAGE 1;CONSTT 1;USNUM 1;LSNUM 1 ->...
Page 109: Hhistogram Group
10.2 Commands :DISPlay:SECond :DISPlay:STATe Function Sets the meter time scale or queries the current Function Turns the numerical display ON or OFF or setting. queries the current setting. Syntax :DISPlay:SECond {<time>} Syntax :DISPlay:STATe {<Boolean>} :DISPlay:SECond? :DISPlay:STATe? Example :DISPLAY:STATE ON <time> = 0.5E-9, 1E-9, 5E-9, 10E-9, 50E-9, :DISPLAY:STATE? 100E-9, 500E-9, 1E-6, 5E-6 Example...
Page 110: Input Group
10.2 Commands 10.2.7 INPut Group This group consists of commands related to the input section. :INPut COUPling DATA <Space> IMPedance <Space> POLarity <Space> POSitive NEGative BOTH TRIGger LEVel <Space> <Voltage>|<NRf> MODE <Space> MANual AUTO BOTH STATus <Space> CONV <Space> <NRf> BOOSt <Space>...
Page 111 10.2 Commands :INPut? :INPut:DATA:TRIGger:LEVel Function Queries all settings related to the signal input Function Sets the trigger level (slice level) or queries the section. current setting. Syntax :INPut? Syntax :INPut:DATA:TRIGger Example :INPUT? :LEVel {<voltage>|<NRf>} -> :INPUT:DATA:COUPLING DC :INPut:DATA:TRIGger:LEVel? ;IMPEDANCE I1M;TRIGGER When the function is DTOC :LEVEL 100E+00;TRIGGER:MODE MANUAL •...
Page 112 10.2 Commands :INPut:EQ:BOOSt :INPut:PLL:STATus? Function Sets the equalizer boost amount or queries the Function Queries the PLL lock status. Syntax :INPut:PLL:STATus? current setting. Syntax :INPut:EQ:BOOSt {<NRf>} Example :INPUT:PLL:STATUS? :INPut:EQ:BOOSt? -> LOCK <NRf> = 3.0 to 9.0 Description 1. LOCK is returned if the result is lock. Example :INPUT:EQ:BOOST 3.0 2.
Page 113: Lvout Group
10.2 Commands 10.2.8 LVOut Group This group consists of level output related commands. :LVOut STATe <Space> <NRf> MODE <Space> JITTer JUDGe CYCLe <Space> <NRf> RANGe <Voltage> LEVel <Space> <Voltage> JUDGe LEVel <Space> <Voltage> <Voltage> RESult :LVOut? :LVOut:CYCLe Function Queries all settings related to level Function Sets the average coefficient for level measurement.
Page 114: Measure Group
10.2 Commands :LVOut:JUDGe:LEVel :LVOut:JUDGe:RESult? Function Sets the upper and lower limit of the Function Queries the determination result for level determination level of the level measurement measurement output. Syntax :LVOut:JUDGe:RESult? output or queries the current setting. Syntax :LVOut:JUDGe:LEVel {<voltage>}, Example :LVOUT:JUDGE:RESULT? {<voltage>} ->...
Page 115: Memory Group
10.2 Commands 10.2.10 MEMory Group The commands in this group deal with the external transmission of the measured data. There are no front panel keys that correspond to this group. :MEMor y BYTeorder <Space> LSBFirst MSBFirst CLEar DATaselect <Space> MEASuredata FREQuency <Space>...
Page 116: Recall Group
10.2 Commands :MEMory:SEND? :MEMory:STARt Function Executes the transmission of the measured data Function Sets the start position of transmitted data or specified by “MEMory:DATaselect.” queries the current setting. Syntax :MEMory:SEND? Syntax :MEMory:STARt {<time>} Example :MEMORY:SEND? :MEMory:STARt? -> #800000016abcdabceabcfabcg <time> = 0 to 80 ns (when the measurement Description •...
Page 117: Sample Group
10.2 Commands 10.2.12 SAMPle Group This group consists of commands related to sampling conditions. :SAMPle ARMing DELay TIME <Space> <Time> <Space> SOURce AUTO EXTernal <Space> SLOPe RISE FALL BLOCk STATe <Space> <NRf> SIZE <Space> <NRf> GATE TIME <Space> <Time> <Space> INHibit STATe <NRf>...
Page 118 10.2 Commands :SAMPLe:ARMing:DELay? :SAMPle:BLOCk:SIZE Function Queries all settings related to arming delay. Function Sets the number of blocks for block sampling or Syntax :SAMPle:ARMing:DElay? queries the current setting. Example :SAMPLE:ARMING:DELAY? Syntax :SAMPLe:BLOCk:SIZE {<NRf>} -> :SAMPLE:ARMING:DELAY:TIME 1.0E- :SAMPle:BLOCk:SIZE? <NRf> = no. of blocks (2 to 99) Description Cannot be set or queried when Example :SAMPLE:BLOCK:SIZE 10...
Page 119: Sstart Group
10.2 Commands :SAMPle:INHibit:POLarity :SAMPle:INHibit:STATe Function Sets the polarity of inhibit or queries the current Function Turns ON/OFF inhibit or queries the current setting. setting. Syntax :SAMPLe:INHibit:POLarity {POSitive| Syntax :SAMPLe:INHibit:STATe {<Boolean>} NEGative} :SAMPle:INHibit:STATe? :SAMPle:INHibit:POLarity? Example :SAMPLE:INHIBIT:STATE OFF Example :SAMPLE:INHIBIT:POLARITY OFF :SAMPLE:INHIBIT:STATE? :SAMPLE:INHIBIT:POLARITY? ->...
Page 120: Stop Group
10.2 Commands :STATus? :STATus:EESR? Function Queries all settings related to the Function Queries the contents of the extended event communication status. register and clears the register. Syntax :STATus? Syntax :STATus:EESR? Example :STATUS? Example :STATUS:EESR? -> :STATUS:EESE 0;FILTER1 RISE -> 1 ;FILTER2 NEVER;FILTER3 NEVER ;FILTER4 NEVER;FILTER5 NEVER :STATus:ERRor?
Page 121: System Group
10.2 Commands 10.2.18 SYSTem Group This group consists of commands related to system settings. :SYSTem BRIGhtness DOTMatrix <Space> <NR1> :SYSTem? :SYSTem:BRIGhtness:DOTMatrix Function Queries all settings related to the system group. Function Sets the brightness of the dot matrix LED Syntax :SYSTem? display or queries the current setting.
Page 122: Common Command Group
Syntax *CLS Example *IDN? Example *CLS -> YOKOGAWA,704610-BDS,0,F1.00 Description For details on the standard event register, Description Returns the manufacturer name, model, serial extended event register, and error queue, see number (unused, always 0), and firmware section 10.3, “Status Report.”...
Page 123 10.2 Commands *OPC? *TST? Function Returns a “1” when the specified overlap Function Performs a self test and queries the result. command is finished. A “1” is always returned, Syntax *TST? because the instrument does not support Example *TST? overlap commands. ->...
Page 124: Status Report
10.3 Status Report 10.3.1 Regarding the Status Report Status Report The figure shows the status report that is read by serial polling. This status report is an extended version of the status report defined in IEEE 488.2-1992. Service request enable register &...
Page 125: Status Byte
10.3 Status Report 10.3.2 Status Byte Overview of Registers and Queues Name (Function) Write Read Status Byte Status Byte Serial Poll (RQS), *STB?(MSS) 6 ESB MAV EES EAV 1 Service request *SRE *SRE? enable register (status byte mask) Bits 0, 1, and 7 Standard event –...
Page 126: Standard Event Register
10.3 Status Report 10.3.3 Standard Event Register Status Byte Operation When bit 6 of the status byte is 1, a service request Standard Event Register occurs. When a bit other than 6 is set to 1, bit 6 also becomes 1 (if the corresponding service request CME EXE DDE QYERQCOPC enable register is set to 1).
Page 127: Extended Event Register
10.3 Status Report Standard Event Register Operation Reading the Standard Event Register The standard event register is for the 8 types of events The standard event register is read using the *ESR? that can occur internally within the instrument. When command.
Page 128: Output Queue And Error Queue
10.3 Status Report 10.3.5 Output Queue and Error Queue Output Queue The output queue stores the response message for a query. As shown in the example below, data are stored in order and read from the oldest ones first. Other than when it is read out, the output queue becomes empty in the following cases.
Page 129: Sample Program
Web site under “GPIB/RS-232 Sample Programs” in the free software area. Settings on the TA220 GP-IB All sample programs given in this chapter use a GP-IB address of 1 for the TA220. The GP-IB address can be set to 1 according to the procedure in section 8.4. Ethernet All sample programs given in this chapter use an IP address of 11.22.33.44 for the...
Page 130: Initialization/Error/Execution Function
10.4 Sample Program 10.4.3 Initialization/Error/Execution Function Private Declare Sub Sleep Lib "kernel32" (ByVal dwMillseconds As Long) Option Explicit Dim StartFlag As Integer 'Start Flag Dim Timeout As Integer 'Timeout Dim Dev As Long 'Device ID Dim CtsFlag As Integer 'CTS Flag Dim term As String 'Terminator Dim Query(100) As String...
Page 131 10.4 Sample Program ern = TmGetLastError(Dev) If (ern = 2) Then ers = "Device not found" ElseIf (ern = 4) Then ers = "Connection to device failed" ElseIf (ern = 8) Then ers = "Device not connected" ElseIf (ern = 16) Then ers = "Device already connected"...
Page 132 10.4 Sample Program sts = InitEthernet 'Initialize Ethernet If (sts <> 0) Then Exit Sub End If sts = GetStatistics 'Run Sample2 GetStatistics If (sts = 0) Then List1.AddItem Query(0) List1.AddItem Query(1) List1.AddItem Query(2) List1.AddItem Query(3) List1.AddItem Query(4) List1.AddItem Query(5) List1.AddItem Query(6) List1.AddItem Query(7) List1.AddItem Query(8)
Page 133 10.4 Sample Program List1.AddItem Query(4) List1.AddItem Query(5) List1.AddItem Query(6) List1.AddItem Query(7) List1.AddItem Query(8) List1.AddItem Query(9) List1.AddItem Query(10) End If Text1.Text = "END" StartFlag = 0 End Sub '--------------------------------------------------------------------- Private Sub Form_Load() StartFlag = 0 'Clear Start Flag Dev = -1 'Clear device id Command1.Caption = "Sample1: (Ethernet)"...
Page 134: Setting Measurement Parameters And Querying The Current Setting
10.4 Sample Program 10.4.4 Setting Measurement Parameters and Querying the Current Setting Private Function SetParameter() As Integer Dim msg As String 'Command buffer Dim qry As String 'Query buffer Dim sts As Integer Dim length As Long 'Receive query length msg = Space$(100) qry = Space$(100) msg = "*RST"...
Page 135: Querying The Measurement And Measured Result
10.4 Sample Program 10.4.5 Querying the Measurement and Measured Result Private Function GetStatistics() As Integer Dim msg As String 'Command buffer Dim qry As String 'Query buffer Dim sts As Integer Dim length As Long 'Receive query length Dim i As Integer Dim temp As String Dim count As Integer msg = Space$(100)
Page 136 10.4 Sample Program If (sts < 0) Then Call DisplayError(sts, msg) GetStatistics = 1 Exit Function End If sts = TmReceive(Dev, qry, 100, length) 'Receive Query If (sts < 0) Then Call DisplayError(sts, msg) GetStatistics = 1 Exit Function End If temp = Left$(qry, length - 1) sts = val(temp) And 1 If sts = 1 Then...
Page 137: Ascii Character Codes
10.5 ASCII Character Codes The following is a chart of ASCII character codes. ‘ ” & ’ < > (RUBOUT) Address Universal Listener Talker Secondary Command Command Address Address Command Example octal GP-IB code ASCII character code hexadecimal decimal 10-47 IM 704610-01E...
Page 138: Chapter 11 Other Functions
ON, the TA220 starts the measurement using the settings that existed immediately before the power switch was turned OFF. If the setup information can no longer be stored due to a dead lithium battery, the TA220 is reset to the factory default settings. For factory default settings, see section 11.2.
Page 139: Initializing Settings
11.2 Initializing Settings Procedure Display 2 Display 1 L.MARK R.MARK The phrase, “rotary knob & <>” is used in the following DISP OFF explanation to instruct the user ns ms LOCK SEC RANGE MEASURE to enter numerical setting values JUDGE using the knob and arrow keys.
Page 140 11.2 Initializing Settings Explanation The following setup information can be initialized to the factory default settings. Item Factory Default Settings Measurement Conditions Measured media BD (fixed) Measurement function D to C Lower limit of the pulse width measurement (L.MARK) 22.72 ns Upper limit of the pulse width measurement (R.MARK) 37.88 ns Polarity of the data signal...
Page 141 11.2 Initializing Settings Item Factory Default Settings UTILITY-Netwrk Not initialized by the (Utility menu (UTILITY > System > init) procedure. ) Network device type GP-IB GPIB address DHCP ON or OFF IP Address 0.0.0.0 Subnet mask 255.255.255.0 Default gateway 0.0.0.0 Timeout time setting UTILITY-System Not initialized by the (Utility menu (UTILITY >...
Page 142: Brightness Setting Of The Numerical Value Display (Display 2-Green)
11.3 Brightness Setting of the Numerical Value Display (Display 2-Green) Procedure Display 2 Display 1 L.MARK R.MARK The phrase, “rotary knob & <>” is used in the following DISP OFF explanation to instruct the user ns ms LOCK SEC RANGE MEASURE to enter numerical setting values JUDGE...
Page 143: Turning The Key Lock On And Off
• Turning ON/OFF the KEY LOCK switch Note • Key lock can be enabled even when the TA220 is in remote mode through the communication function. • Operations in the maintenance mode (see sections 12.4 to 12.6) are available even when key lock is ON.
Page 144: Malfunction? First, Investigate
• For the appropriate corrective actions when an error code is shown on the display, see section 12.2. • If servicing is necessary, or if the instrument is not operating correctly after performing the following corrective actions, contact your nearest YOKOGAWA dealer for repairs. Description Possible Problem Corrective Action Ref.
Page 145: Error Code Description And Corrective Actions
12.2 Error Code Description and Corrective Actions There are cases in which error messages appear on the display during operation or error codes and error messages appear on the PC (controller) when using the communication function. This section describes the meanings of the messages and their corrective actions.
Page 146 12.2 Error Code Description and Corrective Actions Code Message Description and Corrective Action Ref. section Character data not allowed <CHARACTER DATA> cannot be used. 10.2 Write in a data form other than {...|...|...}. String data error There is no delimiter to the right of <STRING DATA>. 10.1 Enclose <String data>...
Page 147 12.2 Error Code Description and Corrective Actions Error in communication query Code Message Description and Corrective Action Ref. section Query INTERRUPTED Sending of the response was interrupted. 10.1 Check the sequence of transmissions and receptions. Query UNTERMINATED No sendable response exists. 10.1 Check the sequence of transmissions and receptions.
Page 148: Adjusting The Zero Position Of The Needle
12.3 Adjusting the Zero Position of the Needle Procedure DISP OFF ns ms LOCK SEC RANGE MEASURE JUDGE NO-GO SEC RANGE SCALE POWER Check that the power switch is turned OFF. Adjust the needle by turning the adjustment trimmer with a flat-head screwdriver so that the needle is vertical.
Page 149: Self Diagnostics (Self Test)
When doing so, make sure that the TA220 is not in remote mode. For the procedure in switching from remote mode to local mode, see section 8.2 or section 9.1.
Page 150 ETHER b.: Ethernet board To perform all board tests again, press INHIBIT. Press <. TESTMODE is once again displayed in Display 2. Note When you wish to perform measurement again after the self test, reboot the TA220. 12-7 IM 704610-01E...
Page 151 When performing the self test, remove all cables connected to the instrument (both input and output) other than the power cable and communication cable. Also, the self test cannot be performed if the TA220 is in remote mode. Switch from remote mode to local mode.
Page 152: Calibration (Changing The Factory Default Calibration Values)
-> EQ board -> MEMORY -> ETHER, and so on). At this point the instrument enters maintenance mode, and TESTMODE is displayed on Display Let the TA220 warm up for at least thirty minutes in this condition. 12-9 IM 704610-01E...
Page 153 If calibration is not completed successfully, FAIL is displayed in Display 1 after CAL COPY. In this case, servicing is required. Contact your nearest YOKOGAWA dealer for repairs. Checking the Calibration Results Turn the rotary knob to display DC CAL, TV CAL, or FUNC CAL in Display 2.
Page 154 When contacting your nearest YOKOGAWA dealer for repairs, please give them that hexadecimal number. Restarting the Instrument After calibration, check that the TA220 starts up normally and that it is ready to make measurements. 12-11 IM 704610-01E...
Page 155 • Perform calibration using the *CAL? command (see page 10-32). You can make measurements using the calibration values obtained through the execution of the *CAL? command until the system is rebooted. Once you turn OFF the TA220 and turn it back ON, the calibration values return to their factory defaults.
Page 156: Performance Test
Device Connections • Ensure that all instruments are turned OFF before making any connections. • Connect the output terminal (OUTPUT) of the DC voltage generator to the measurement input terminal (RF input) on the TA220. TA220 DC voltage generator (7651)
Page 157 Set the output level of the 7651 to 1.000 V. Set the trigger level of the TA220 to 1.060 V. Decrease the trigger level of the TA220 in 1-mV steps. Gradually decrease the trigger level and record the voltage level at which the RF signal input indicator blinks as VL.
Page 158 Device Connections • Ensure that all instruments are turned OFF before making any connections. • Connect the output terminal (OUTPUT) of the synthesized signal generator to the measurement input terminal (RF input) on the TA220. Synthesized signal generator (8648A) TA220...
Page 159 • Set the frequency of the 8648A to the values indicated in the table below and confirm that the standard deviation σ (jitter) of the pulse width jitter measurement on the TA220 are within the ranges given in the table. The average value is reference value. Test Procedure Set the output level of the 8648A to 360 mVrms and the frequency to 1.0 MHz.
Page 160 (RF input) to the output terminal of the test set connected to the output terminal (TEST PORT) of the network analyzer. • After calibrating the network analyzer, connect the TA220 equalized RF signal monitor output terminal (EQUALIZED OUT) to channel B of the network analyzer.
Page 161 87512A, and the TA220 equalized RF signal monitor output terminal (EQUALIZED OUT) to channel B of the 4395A. Set the boost amount on the TA220 to 5.8 dB, then check that the difference in gain between 100 kHz and 16.5 MHz is within the allowable range.
Page 162 • Output amplitude resolution: 12 bits or more • Memory length: 8192 points or more • With arbitrary waveform generation function • Recommended instrument: Synthesized function generator FG300 (YOKOGAWA) The procedure for testing the auto slice using the recommended instrument is described below.
Page 163 Test Procedure • Test the TA220/FG300 after a thirty-minute warm-up. • Input the offset modulated FG signal to the TA220, and confirm that the standard deviation σ (jitter) of the pulse width jitter measurement is within the allowable range. The average value is the reference value.
Page 164: Version Display
12.7 Version Display Procedure Display 2 Display 1 L.MARK R.MARK The phrase, “rotary knob & <>” is used in the following DISP OFF explanation to instruct the user ns ms LOCK SEC RANGE MEASURE to enter numerical setting values JUDGE using the knob and arrow keys.
Page 165: Replacing The Power Fuse
12.8 Replacing the Power Fuse WARNING • To prevent electric shock or fires, use a fuse of the specified rating in terms of current, voltage, and type. • Make sure to turn OFF the instrument and unplug the power cord before replacing the fuse.
Page 166: Recommended Replacement Parts
12.9 Recommended Replacement Parts The one-year warranty applies only to the TA220 (starting from the day of delivery) and does not cover any other items nor expendable items (items which wear out). The replacement period for expendable items varies depending on the conditions of use.
Page 167: Chapter 13 Specifications
Chapter 13 Specifications 13.1 Measurement Input, Trigger, Equalizer, and Item Specifications Number of channels 1 (RF input, 1-7 modulation signals) †, †† Internal jitter 150 ps rms RF input Connector type Input coupling Select AC or DC ‡ When AC-coupled: low-band cutoff frequency 33 Hz (typical value ‡...
Page 168: Measurement Function
13.2 Measurement Function Item Specifications † Measurement update rate Minimum 50 ms (when measurement function is D-to-C jitter, data signal slope is both rising and falling, and the gate time is 30 ms) †† However, it is 2 ms when D-to-C high speed calculation is ON: Pulse width jitter Measuring range (upper and lower limit range of the pulse width to be measured)
Page 169: Display
13.4 Display Item Specifications Meter (needle) Item Jitter ratio, jitter Jitter ratio display scale Select 10% or 20%. Jitter display time range Select 0.5 ns, 1.0 ns, 5.0 ns, 10 ns, 50 ns, 0.1 µs, 0.5 µs, 1.0 µs, or 5.0 µs. Display accuracy: ±1.5% of FS Display 1 (7-segment red LED) Item...
Page 170: Input/Output On The Rear Panel
13.5 Input/Output on the Rear Panel Item Specifications External arming signal input (EXT ARM IN) Connector type † Input impedance 10 kΩ (typical value Input coupling Input level TTL level Allowable input voltage –5 to 10 V (DC+ACpeak) range Minimum pulse width 30 ns Inhibit signal input (INHIBIT IN) Connector type...
Page 171: Communication Interface
13.5 Input/Output on the Rear Panel/13.6 Communication Interface Item Specifications Clock signal output (CLOCK OUT) Connector type † Output impedance 50 Ω (typical value Output coupling ‡‡† Output level Approximately ±0.4 V † The typical value is a representative or standard value. It is not strictly guaranteed. ††...
Page 172: General Specifications
13.7 General Specifications Item Specifications Standard operating conditions Ambient temperature: 23±5°C Ambient humidity 50±10%RH Error in supply voltage Within 1% of rating and frequency Warm-up time Approx. 30 minutes. Storage Environment Temperature –20°C to 60°C Humidity 20% to 80% RH (no condensation) Operating Environment Temperature 5°C to 40°C...
Page 173 13.6 General Specifications Immunity Complying standard EN61326 Tests 1. Electrostatic discharge (IEC61000-4-2): 8 kV (air discharge), 4kV(contact discharge), Criteria B 2. EM-field immunity (IEC61000-4-3): 80 MHz to 1 GHz, 1.4 GHz to 2 GHz, 10 V/m, Criteria A 3. Electrical fast transient/burst (IEC61000-4-4): 2 kV (AC line), 1kV(other signal lines), Criteria B 4.
Page 174: Dimensional Drawings
13.8 Dimensional Drawings Units: mm Rear View 28.5 480 ± Mounting dimensions of the JIS rack mount Mounted surface 480 ± Mounted surface Mounting dimensions of the EIA rack mount 482.6 ± Mounted surface 482.6 ± Mounted surface Caution: Make sure to have adequate support for the bottom of the instrument. Allow at least 80 mm of space around the instrument for ventilation.
Page 175 Index Index compound header ............. 10-3 Symbols Page connecting cables ............... 3-8 *STB? ................10-36 connecting the power cord ..........3-6 < > ..................1-3 connecting to a PC on the network ........9-2 1 block ................. 2-7 contents of the package ............ii conventional equalizer ............
Page 176 Index ethernet ................2-16 jitter ratio DC output ............7-4 ethernet communications ............ 9-5 jitter ratio DC output terminal ..........1-1 ethernet interface functions ..........9-1 jitter ratio determination level ..........5-5 ethernet interface specifications ......... 9-1 jitter ratio scale ..............5-1 ethernet port ................
Page 177 Index optional accessories ............. iii serial poll ................. 10-36 output filter ................ 2-14 SHIFT key ................1-1 output queue ..............10-38 shutdown operation ............. 3-7 outputting ................7-11 signal output ..............2-14 outputting data signals ............7-12 simple header ..............10-3 outputting the clock signal ..........
Page 178 Index visual basic modules ............10-39 :INPut:DATA:COUPling ..........10-21 voltage level ..............2-15 :INPut:DATA:IMPedance .......... 10-21 voltage level DC output ............7-9 :INPut:DATA:POLarity ..........10-21 voltage level DC output mode ..........7-9 :INPut:DATA:TRIGger:LEVel ........10-21 voltage level DC output terminal ......... 1-1 :INPut:DATA:TRIGger:MODE ........
