Removing and Replacing FRUs

Verify the fans

EMC Data Domain DS60 Expansion Shelf Installation and FRU Replacement Hardware Guide
98
Procedure

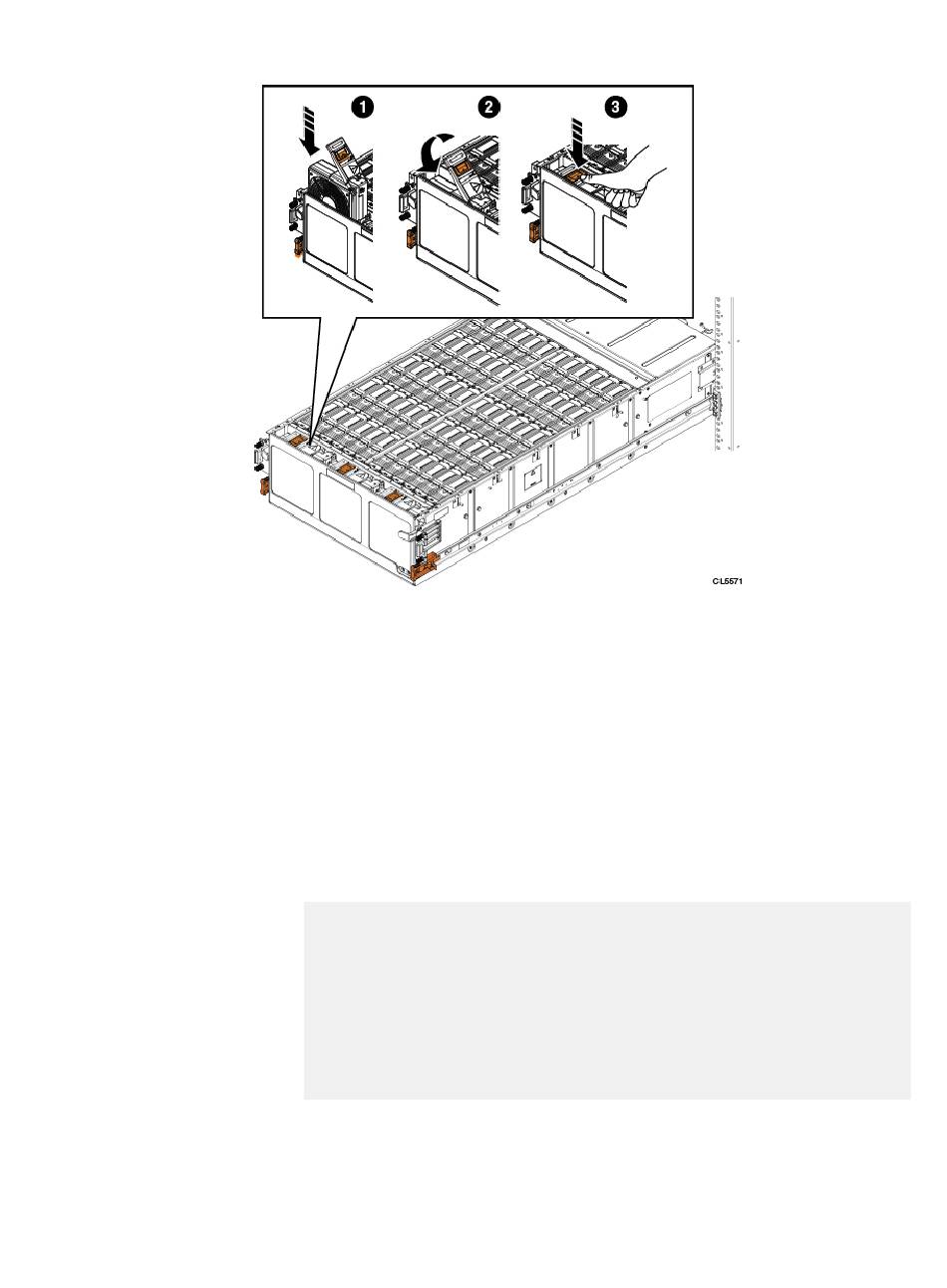

1. Refer to the previous figure. Align the fan with the guides for the empty slot,
then insert the it into the slot.
2. Push the latch down into the closed position.
3. Push the black tab above the orange release tab down until you hear a click.
The click indicates that the fan is seated and secure in the slot.
Procedure
1. Enter the enclosure show fans command to check the status of the
replaced fans.
# enclosure show fans 9
Enclosure Description
--------- --------------------
9 Cooling module fan 1
Cooling module fan 2
Cooling module fan 3
Power module A fan 1
Power module A fan 2
Power module B fan 1
Power module B fan 2
--------- --------------------
Check the Status column to confirm that all of the fans in Enclosure 9 are OK.
2. Enter the alerts show current command and confirm that the system has
cleared the alert for the failed fan. It may take one to two minutes after the fan
replacement before the system clears the alert.
Level Status
----- ------
low OK
low OK
low OK
low OK
low OK
low OK
low OK
----- ------
