Opening the console

Removing the front bezel

The console is a protruding plastic banner on the front of the cabinet with a stripe of
blue or green light and the product badge.
If the console is covering the front of the shelf to which you need access, open the
console using the steps that follow.
Procedure
1. Grasp the right side of the console.
2. Pull the console to swing it open.

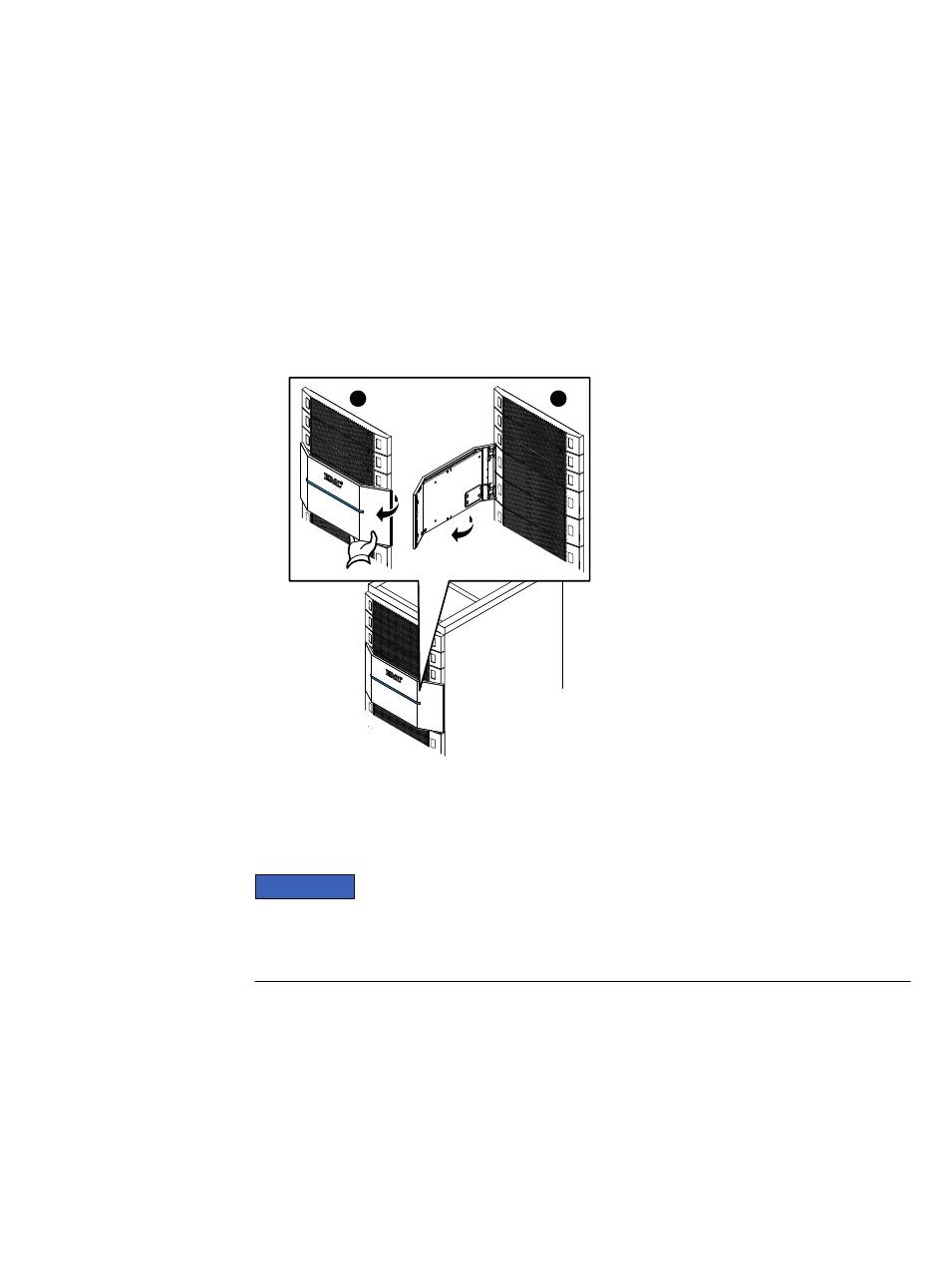

Figure 68 Opening the console
1
NOTICE
You must remove the front bezel to gain access to the internal components. The bezel
is required for EMI compliance when the shelf is powered up. Remove it only to
replace or add an internal component.
Procedure
1. If the bezel has a lock, insert the key that shipped with your shelf into the lock,
and turn the key to unlock the bezel.
2. Press the two latch buttons on the bezel surface to release the bezel from the
cabinet.
3. Pull the bezel off the cabinet and put it on a clean, static-free surface.
Removing and Replacing FRUs
2
