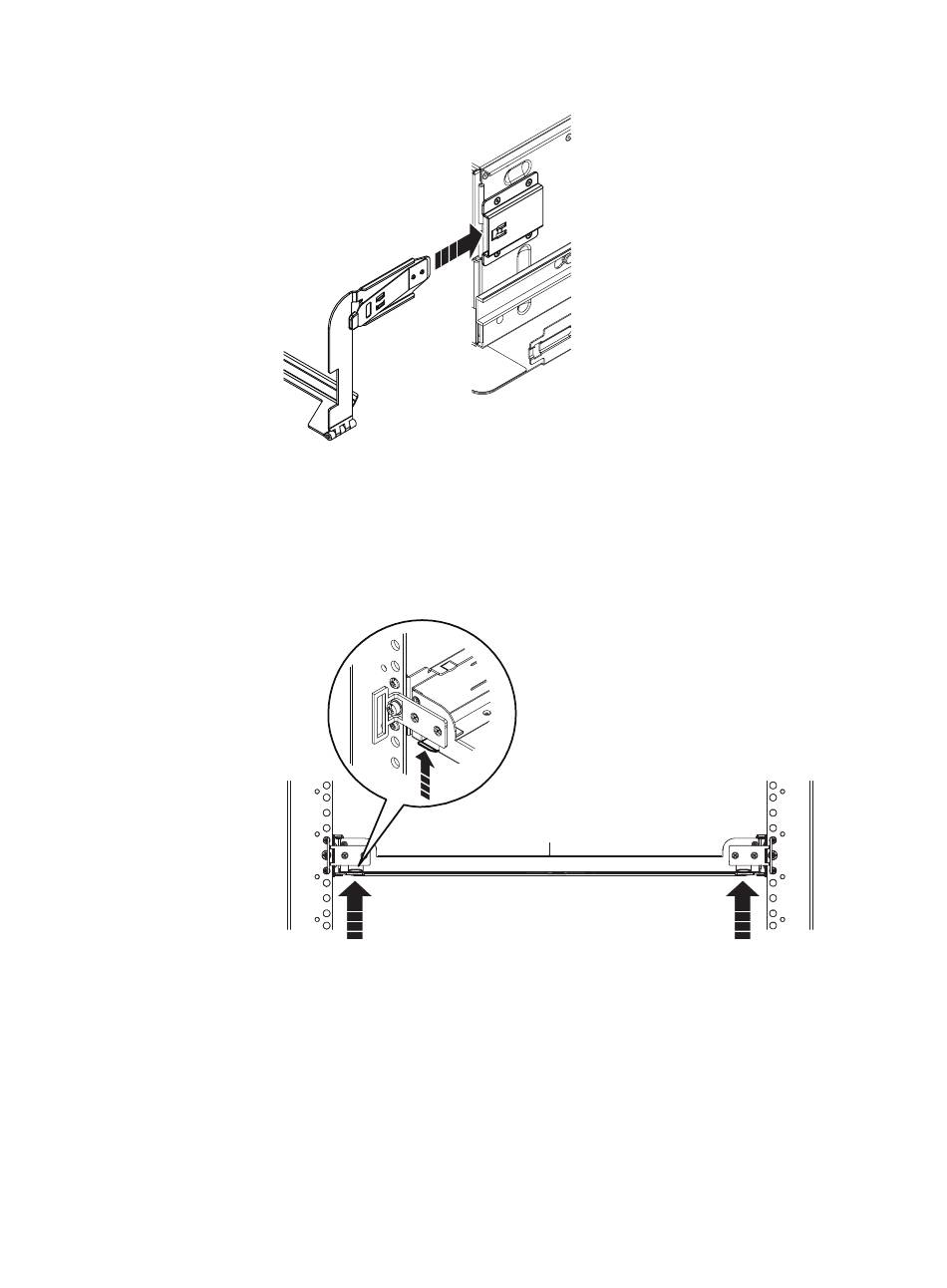

Figure 56 Unclip the cable chains from the tray
6. Press the tabs and unclip the cable chains from the tray.
7. Unclip the cable chain baskets and remove the cables from the cable chains.
Remove the cable chains.
8. Re-insert the shelf into the rack.
Figure 57 Push spring clips up to release the tray
CL5500
Removing the 1U cable tray
Shelf Installation and Removal
CL5523
61
