Shelf Installation and Removal
EMC Data Domain DS60 Expansion Shelf Installation and FRU Replacement Hardware Guide
60

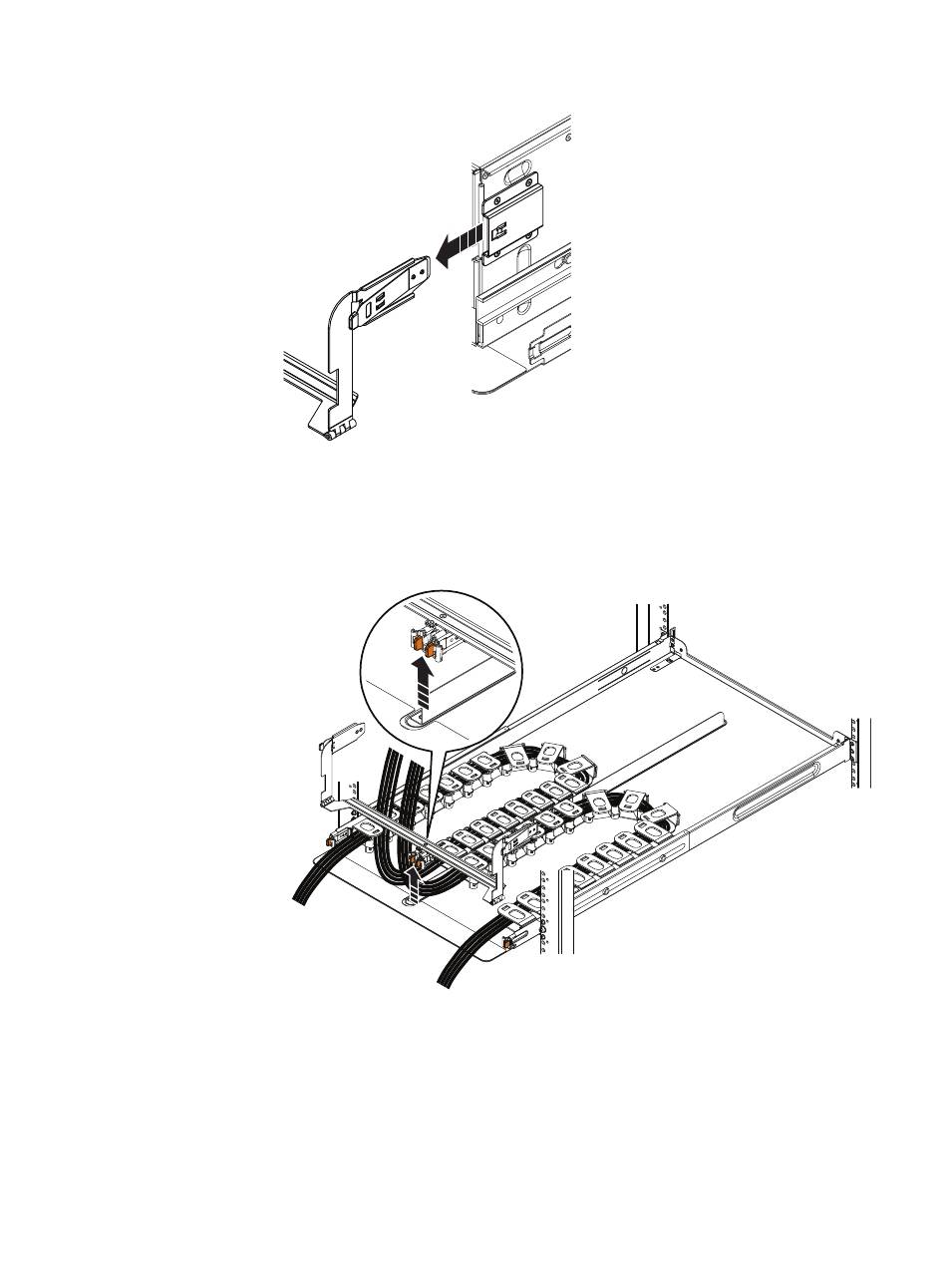

Figure 54 Remove chassis bracket from chassis
3. Press the tabs on the chassis bracket and remove it from the brackets on the
sides of the chassis.
4. Press the tabs and unclip the cable chains from the chassis bracket.
Figure 55 Remove the chassis bracket
5. Remove the chassis bracket.
CL5547
CL5548
