Removing and Replacing FRUs
EMC Data Domain DS60 Expansion Shelf Installation and FRU Replacement Hardware Guide
176
8. Snap the chassis bracket clips into the brackets on the side of the chassis.

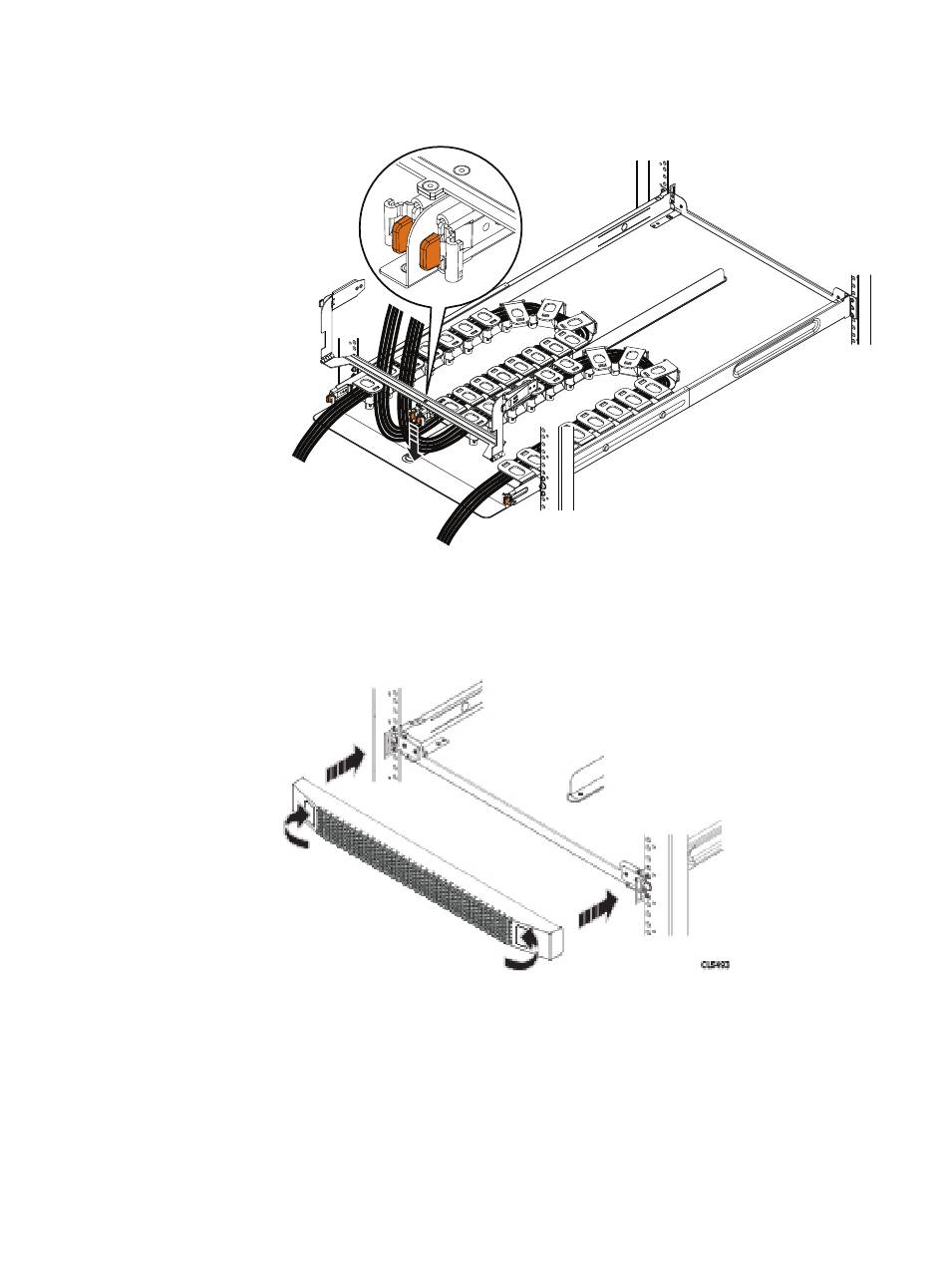

Figure 164 Installing the chassis bracket
9. Place the chassis bracket over the center rail of the cable tray. Clip the free end
of the cable chains to the center flange on the chassis bracket.
Figure 165 Installing the bezel
10. Place the bezel over the front of the tray by pressing the release buttons on the
bezel and placing it over the retaining slots on the tray. Release the buttons and
the tabs will mate with the slots.
11. Refer to the application guide and connect the cables as required. Dress the
cable runs with proper cable strain reliefs when routing to the rack.
CL5499
