Shelf Installation and Removal
1U cable management tray installation (underneath)

Racks and rails

EMC Data Domain DS60 Expansion Shelf Installation and FRU Replacement Hardware Guide
52

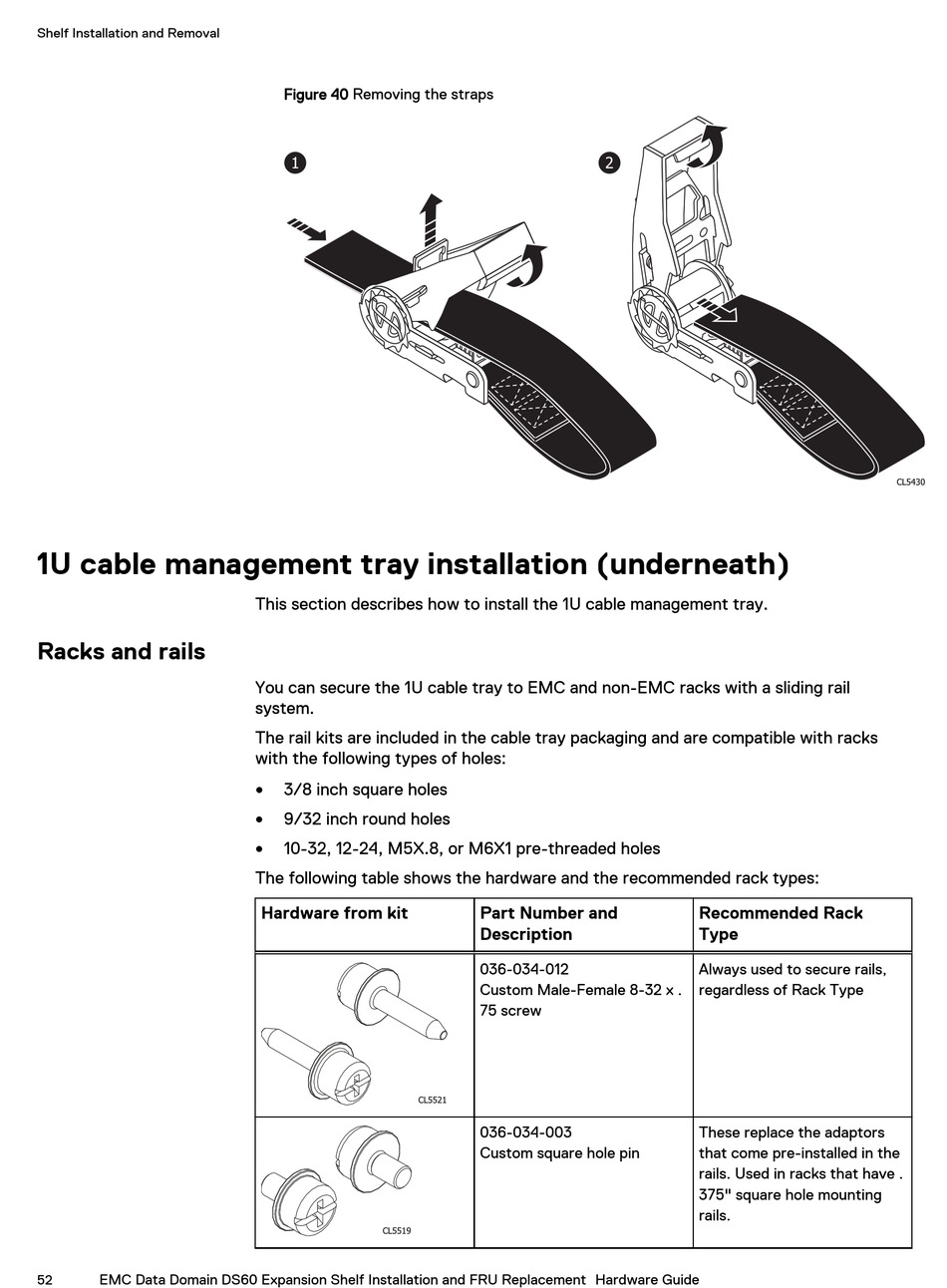

Figure 40 Removing the straps
1
This section describes how to install the 1U cable management tray.
You can secure the 1U cable tray to EMC and non-EMC racks with a sliding rail
system.
The rail kits are included in the cable tray packaging and are compatible with racks
with the following types of holes:
3/8 inch square holes
l
9/32 inch round holes
l
10-32, 12-24, M5X.8, or M6X1 pre-threaded holes
l
The following table shows the hardware and the recommended rack types:
Hardware from kit
CL5521
CL5519
2
Part Number and
Description
036-034-012
Custom Male-Female 8-32 x .
75 screw
036-034-003
Custom square hole pin
Recommended Rack
Type
Always used to secure rails,
regardless of Rack Type
These replace the adaptors
that come pre-installed in the
rails. Used in racks that have .
375" square hole mounting
rails.
CL5430
