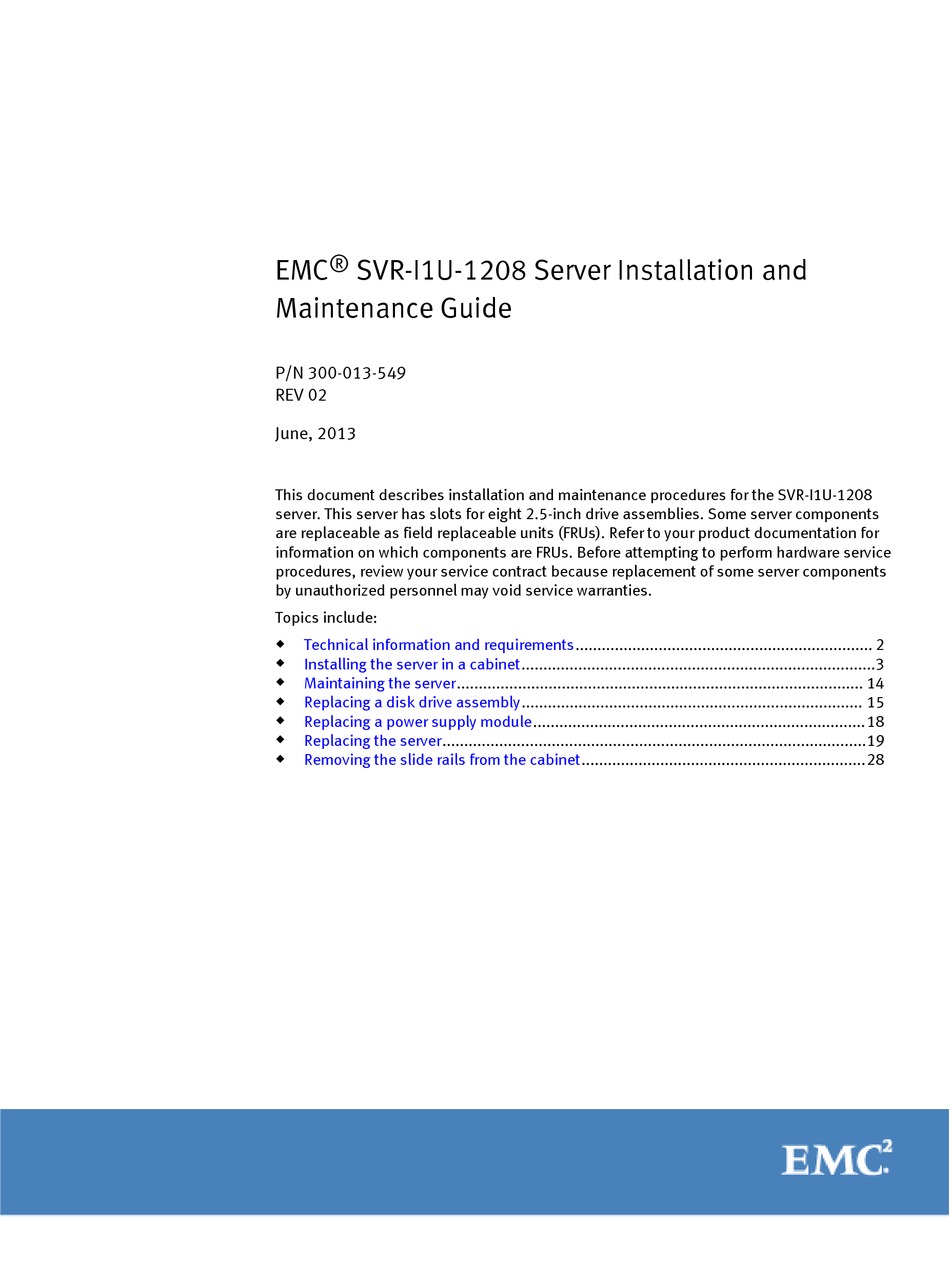

EMC
SVR-I1U-1208 Server Installation and
Maintenance Guide
P/N 300-013-549
REV 02
June, 2013
This document describes installation and maintenance procedures for the SVR-I1U-1208
server. This server has slots for eight 2.5-inch drive assemblies. Some server components
are replaceable as field replaceable units (FRUs). Refer to your product documentation for
information on which components are FRUs. Before attempting to perform hardware service
procedures, review your service contract because replacement of some server components
by unauthorized personnel may void service warranties.
Topics include:
Technical information and
u
Installing the server in a
u
Maintaining the
server............................................................................................. 14
u
Replacing a disk drive
u
Replacing a power supply
u
Replacing the
server.................................................................................................19
u
Removing the slide rails from the
u
requirements.................................................................... 2
cabinet.................................................................................3
assembly.............................................................................. 15
module............................................................................18
cabinet.................................................................28

Advertisement

loading
Need help?

Need help?

Do you have a question about the SVR-I1U-1208 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EMC SVR-I1U-1208

Summary of Contents for EMC SVR-I1U-1208

  • Page 1 REV 02 June, 2013 This document describes installation and maintenance procedures for the SVR-I1U-1208 server. This server has slots for eight 2.5-inch drive assemblies. Some server components are replaceable as field replaceable units (FRUs). Refer to your product documentation for information on which components are FRUs.
  • Page 2 EMC provides a power and weight calculator at http:// powercalculator.EMC.com. Use this calculator to refine the power and heat values in the table below to more-closely match the specific server hardware configuration. Ensure that the server installation site meets the requirements for your configuration.
  • Page 3 Rating label on the chassis. For additional information, refer to the preparation/planning guides for your specific site and cabinet. Operating limits The ambient temperature specification is measured at the front bezel inlet. The site must have air conditioning of the correct size and placement to maintain the specified ambient temperature range and offset the heat dissipation listed in the table that follows.
  • Page 4 We suggest that you use a cabinet that has dual power distribution units, one on each side. We recommend that you use cabinet anti-tip devices, especially if you are installing or removing a server in the upper half of the cabinet when the lower half is empty. EMC SVR-I1U-1208 Server Installation and Maintenance Guide...
  • Page 5 Verifying the mounting kit parts Verify that the server mounting kit includes the parts listed in table that follows. Table 5 Mounting kit parts Component 2 universal rail assemblies Attach back to front on either side between (consists of slide rails for connection to the cabinet channels cabinet and inner rails for connection to server)
  • Page 6 4. Secure the alignment post assembly in place with the screw that you removed. The screw goes in the hole opposite the hole from which you removed it. Figure 1 Switching from round rail alignment posts to square alignment posts CL4951 EMC SVR-I1U-1208 Server Installation and Maintenance Guide...
  • Page 7 Removing inner rails from the rail assemblies Perform the procedure that follows on each rail assembly. Refer to Figure 2 on page 7 while performing the procedure. Procedure 1. Slide the inner rail out from the slide rail as far as possible. 2.
  • Page 8 1 U (1.75 in) cabinet space for the server, and insert the alignment posts securely into the holes (Figure 4 on page An audible click indicates that the connection is secure. EMC SVR-I1U-1208 Server Installation and Maintenance Guide...
  • Page 9 Figure 4 Inserting rail alignment posts into rear channel holes CL5090 2. Pull the slide rail forward so the front alignment posts go securely into the holes on the front channel (Figure 5 on page An audible click indicates that the connection is secure. Figure 5 Inserting rail alignment posts into front channel holes CL5091 3.
  • Page 10 Procedure 1. On each slide rail bring the ball bearing retainer assembly fully to the front, so it rides onto the security knob (Figure 7 on page 11). EMC SVR-I1U-1208 Server Installation and Maintenance Guide...
  • Page 11 Figure 7 Correct location for ball bearing retainer assembly CL5092 2. From the front of the cabinet, align the inner rails attached to the server with the white plastic guide block on the front inside of each slide rail (Figure 8 on page 11).
  • Page 12 Figure 10 Inserting the server in the cabinet CL4962 6. To further secure the rail assembly and server in the cabinet, insert and tighten a small stabilizer screw directly behind each bezel latch (Figure 11 on page 13). EMC SVR-I1U-1208 Server Installation and Maintenance Guide...
  • Page 13 Figure 11 Installing the stabilizer screws CL4963 Connecting cables Procedure 1. Plug the power cords into the power supplies and connect these cords to AC power sources as described in the documentation for your product. 2. Attach any I/O cables as described in the documentation for your product. Installing the bezel Bezels are application specific, and may not appear as shown.
  • Page 14 Emergency procedures (without an ESD kit) In an emergency when an ESD kit is not available, use the procedures below to reduce the possibility of an electrostatic discharge by ensuring that your body and the EMC SVR-I1U-1208 Server Installation and Maintenance Guide...
  • Page 15 subassembly are at the same electrostatic potential. These procedures are not a substitute for the use of an ESD kit. Follow them only in the event of an emergency. Before touching any FRU, touch a bare (unpainted) metal surface of the cabinet or server.
  • Page 16 Press the green button on the left side of the disk drive assembly to unlock the module’s lever. b. Pull the lever open and slide the disk drive assembly from the server. EMC SVR-I1U-1208 Server Installation and Maintenance Guide...
  • Page 17 Figure 14 Removing the faulted disk drive assembly CL5276 3. Unpack the replacement disk drive assembly and save the packing material for returning the faulted disk drive assembly. 4. Install the replacement disk drive assembly (Figure 15 on page 17): a.
  • Page 18 4. Unpack the replacement power supply and save the packing material for returning the faulted power supply. 5. Insert the replacement power supply module into the power supply cage and push the module all the way until it clicks into place (Figure 18 on page 19). EMC SVR-I1U-1208 Server Installation and Maintenance Guide...
  • Page 19 Figure 18 Installing a replacement power supply module CL4969 6. Plug in the module’s AC power cord and fasten the retaining clip to secure the cord. Replacing the server Replacement of non-FRU server components by unauthorized personnel may void service warranties.
  • Page 20 1. If the bezel has a key lock, unlock the bezel with the provided key. 2. Press the two tabs on either side of the bezel to release the bezel from its latches, and pull the bezel off the latches. Figure 19 Removing the bezel CL4965 EMC SVR-I1U-1208 Server Installation and Maintenance Guide...
  • Page 21 Removing the server from the cabinet The enclosure is heavy and should be installed into or removed from a rack by two people. To avoid personal injury and/or damage to the equipment, do not attempt to lift and install the enclosure into a rack without a mechanical lift and/or help from another person.
  • Page 22 Figure 22 Releasing the inner rail locks and removing the server from the cabinet CL4971 Removing the inner rails from the server Use the procedure that follows to remove each inner rail from the server. Refer to Figure 23 on page 23 while performing the procedure. EMC SVR-I1U-1208 Server Installation and Maintenance Guide...
  • Page 23 Procedure 1. On the middle of the inner rail, push in and hold the metal latch, and push the rail backward to release the connection studs from the small end of the rail notches. 2. When the connections studs are in the large end of the rail notches, release the metal latch and pull the inner rail away from the server.
  • Page 24 2. Slide the inner rail forward along the server until the studs fit securely into the small end of the rail notches. An audible click indicates that the rail is secure. Figure 24 Attaching an inner rail to the server CL4961 EMC SVR-I1U-1208 Server Installation and Maintenance Guide...
  • Page 25 Installing the server on the rails in the cabinet The enclosure is heavy and should be installed into or removed from a rack by two people. To avoid personal injury and/or damage to the equipment, do not attempt to lift and install the enclosure into a rack without a mechanical lift and/or help from another person.
  • Page 26 An audible click indicates that the slide rails are engaged and locked. 5. On the outside of each rail assembly, slide the blue disconnect tab forward to unlock the server, and push the server completely into the cabinet (Figure 28 on page 27). EMC SVR-I1U-1208 Server Installation and Maintenance Guide...
  • Page 27 Figure 28 Inserting the server in the cabinet CL4962 6. To further secure the rail assembly and server in the cabinet, insert and tighten a small stabilizer screw directly behind each bezel latch (Figure 29 on page 27). Figure 29 Installing the stabilizer screws CL4963 Reconnecting cables Plug all power and I/O cables that you removed from the original server into the back of...
  • Page 28 2. Release each rail from the channels (Figure 32 on page 29): a. At each rail end, push and hold the alignment posts together. b. Slide the rail out of the channel, and remove it from the cabinet. EMC SVR-I1U-1208 Server Installation and Maintenance Guide...
  • Page 29 Figure 32 Releasing the rail from the cabinet channels Rear CL4856 Removing the slide rails from the cabinet...
  • Page 30 2012-2013 EMC Corporation. All rights reserved. Published in USA. Published June, 2013 EMC believes the information in this publication is accurate as of its publication date. The information is subject to change without notice. The information in this publication is provided as is. EMC Corporation makes no representations or warranties of any kind with respect to the information in this publication, and specifically disclaims implied warranties of merchantability or fitness for a particular purpose.
