5. Release the lift casters
6. Lock all four casters by pressing down on the locking tab so the lift will not roll
as the shelf is pushed into the cabinet.

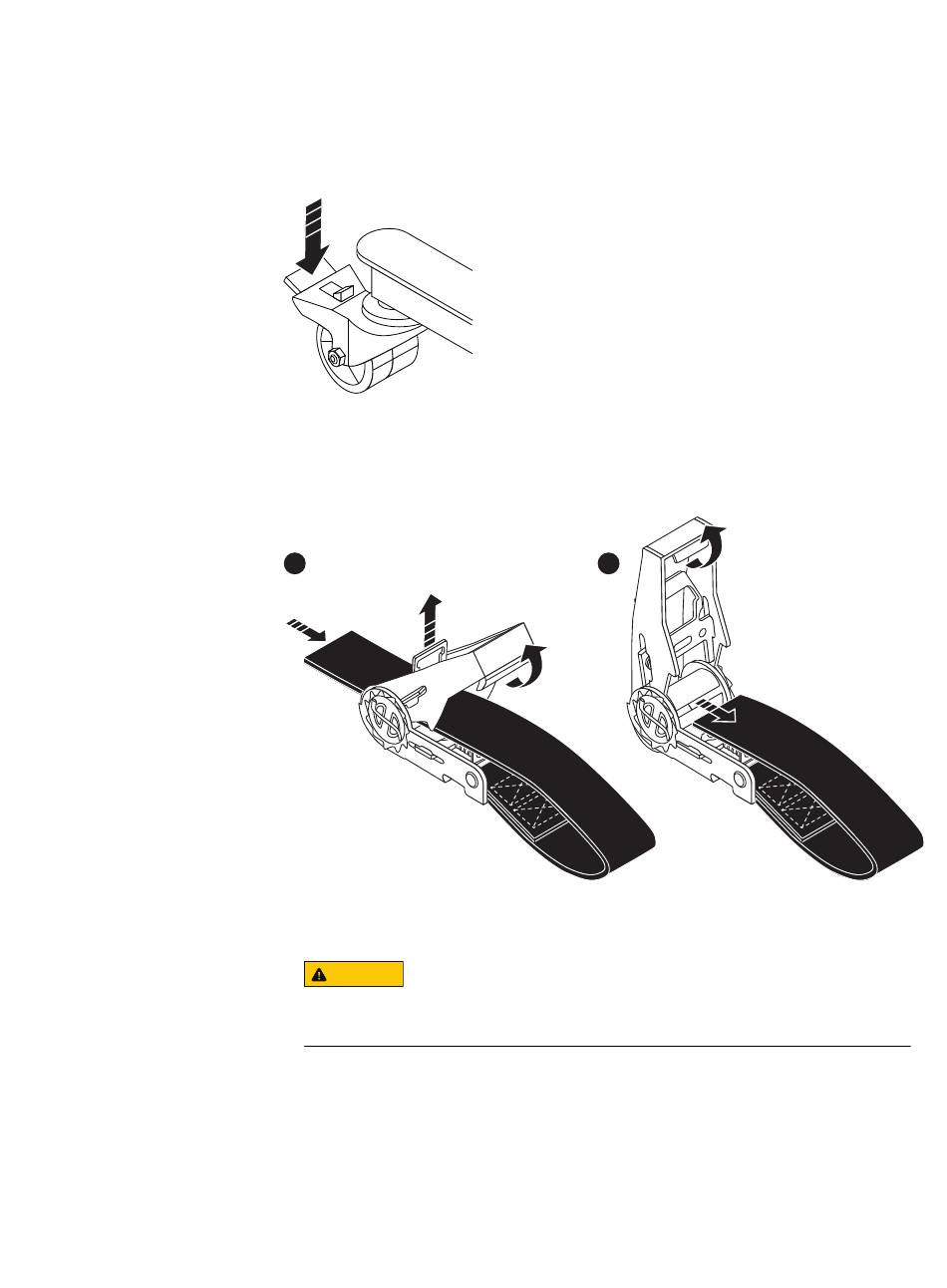

Figure 139 Locking the casters
CL5423
7. Remove the securing strap by pulling up on the retaining key and pull the
ratchet handle upwards as needed.
Figure 140 Removing the straps
1
8. Carefully push the shelf off the lift arms/tray and into the cabinet.
CAUTION
Make sure to leave the lift under the chassis until the shelf is safely
balanced and secured within the cabinet.
9. If the shelf was de-populated prior to installation, re-populate the shelf as
follows:
a. Re-install the disk drives in the exact location from which they were
removed.
b. Re-install the Fan modules.
c. Slide the shelf into the cabinet.
2
CL5430
