EMC VNXe3100 Quick Start Manual

®

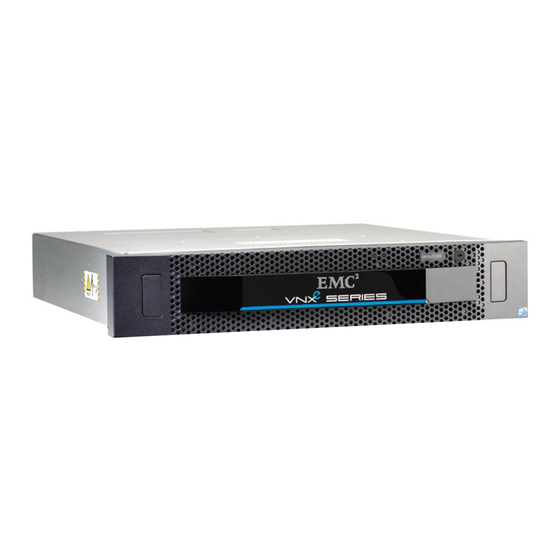

EMC VNXe3100™
Replacing a VNXe3100 Memory Module

Before you start

Before you begin the replacement procedure, make sure you have correctly identified the faulted part,
and that a replacement memory module (DIMM) is available. Refer to your EMC® VNXe™ online help
(Servicing your system > Adding or replacing faulted hardware components > Replace a faulted
hardware component) for instructions on how to identify failures, order new parts, and handle
hardware components. Also, prepare your disk processor enclosure (DPE) for service as described
below.

Preparing your disk processor enclosure for service

IMPORTANT
To protect your VNXe system from accidental data loss while you remove and replace DPE
components, open Unisphere™ and select Settings, then Service System.
• Log in with your service password.
• In the System Components column, select the storage processor (A or B) associated with the
faulted component.
• Under Service Actions, select Enter Service Mode, then Execute service action.
The storage processor fault LED will flash alternating amber and blue while the SP remains in
Service Mode and is receiving active power.
Contents
This document provides instructions on the following tasks:
Task 1: Remove the storage processor (SP) assembly
Task 2: Remove the SP assembly top cover
Task 3: Replace the memory module
Task 4: Replace the SP top cover
Task 5: Replace the storage processor
Task 6: Reboot the storage processor
Task 7: Verify the operation of the new module
Task 8: Return the faulted memory module
2/2/11
on page 2
on page 3
on page 4
on page 5
on page 6
on page 7
on page 7
on page 8
1
