Screw And Nut Placements; Shelf Rail Kit Contents; Required Tools - EMC Data Domain DS60 Hardware Manual

For... Use kit:
Shelf with any DENSE DPE FIELD KIT, PN
Disk 106-569-209
Configuration
Modifying rail lengths
Tool
Screwdriver
Socket or Wrench (Pliers or Vise-grips may also be
used)
Table 9 Shelf rail kit contents
× Kit contents include:
×
Part number
PN 100-569-001
This procedure details how to extend or shorten the rail lengths to accommodate
third-party racks.
The rails have four adjustment ranges, 18-22", 22-26", 26-30", 30-34" . The default
length (out of the shipping crate) is the 22-26" setting. The length adjustments
provided in this procedure use the default length as a baseline.
Table 10 Required Tools
Size/Type
Phillips (Cross-tip)
10 mm
Procedure
1. To change the length of the rail to 18-22" (shortest setting) do the following:

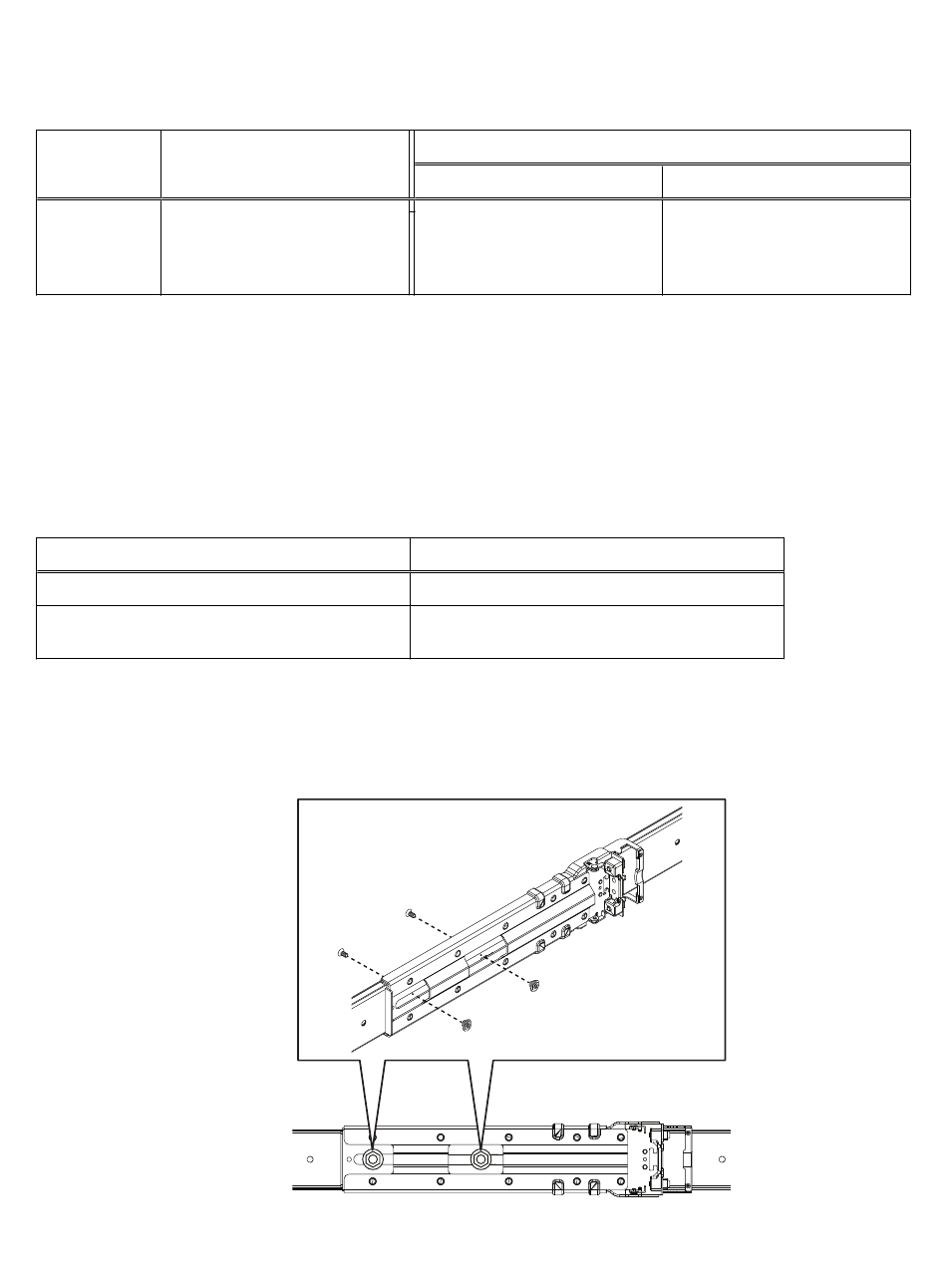

Figure 59 Screw and nut placements
Shelf Installation and Removal
Description
Rails (pair) and attaching
hardware. Attaching hardware is
detailed in the rail installation
procedure.
CL5496
Shelf rail installation in non-EMC racks
63
