Removing and Replacing FRUs
EMC Data Domain DS60 Expansion Shelf Installation and FRU Replacement Hardware Guide
168

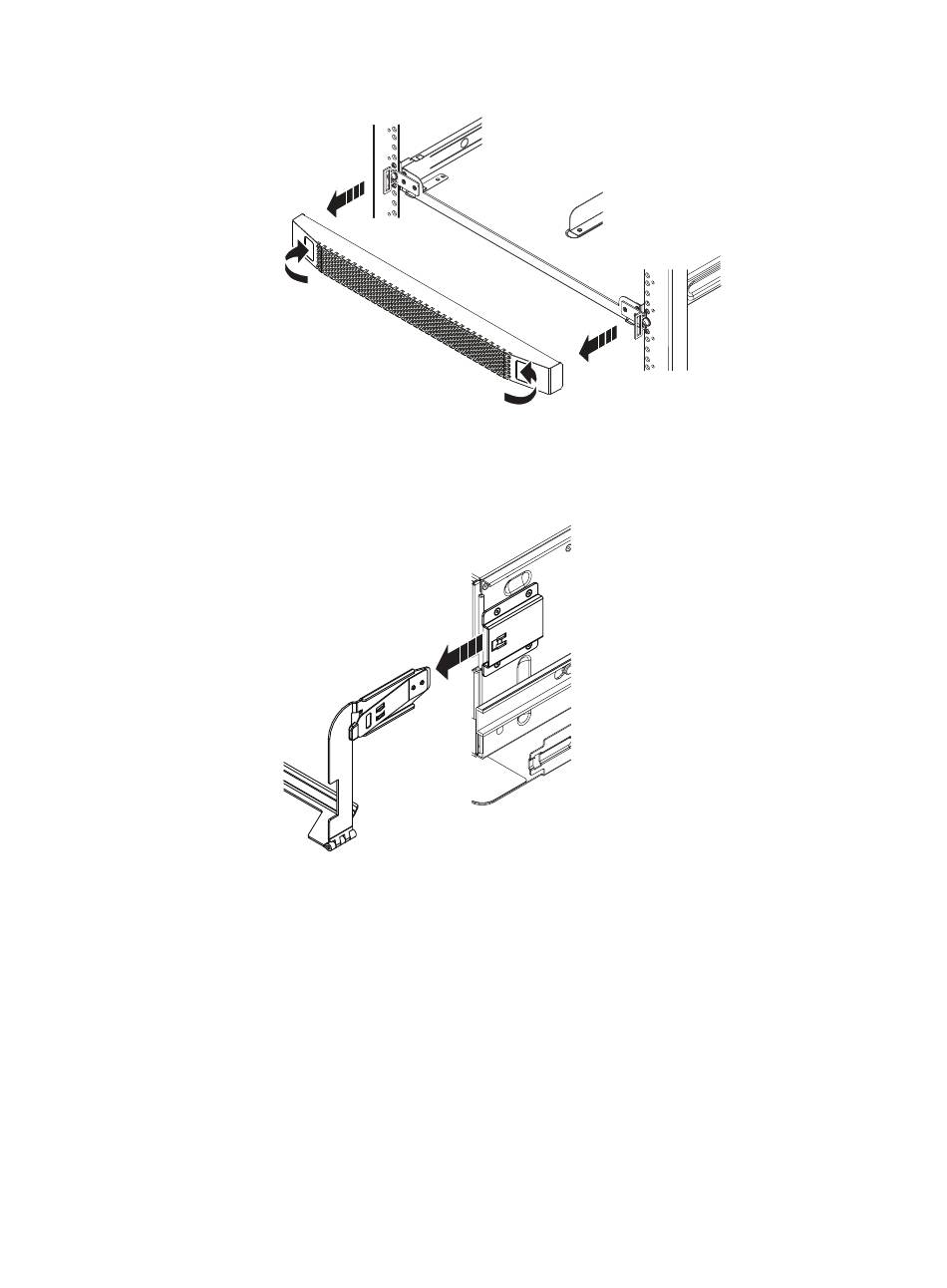

Figure 148 Remove the bezel
2. At the front of the rack, press the release buttons on the front bezel and
remove it from the tray.
Figure 149 Remove chassis bracket from chassis
3. Press the tabs on the chassis bracket and remove it from the brackets on the
sides of the chassis.
4. Press the tabs and unclip the cable chains from the chassis bracket.
CL5551
CL5547
