Removing and Replacing FRUs

Installing a disk

EMC Data Domain DS60 Expansion Shelf Installation and FRU Replacement Hardware Guide
92

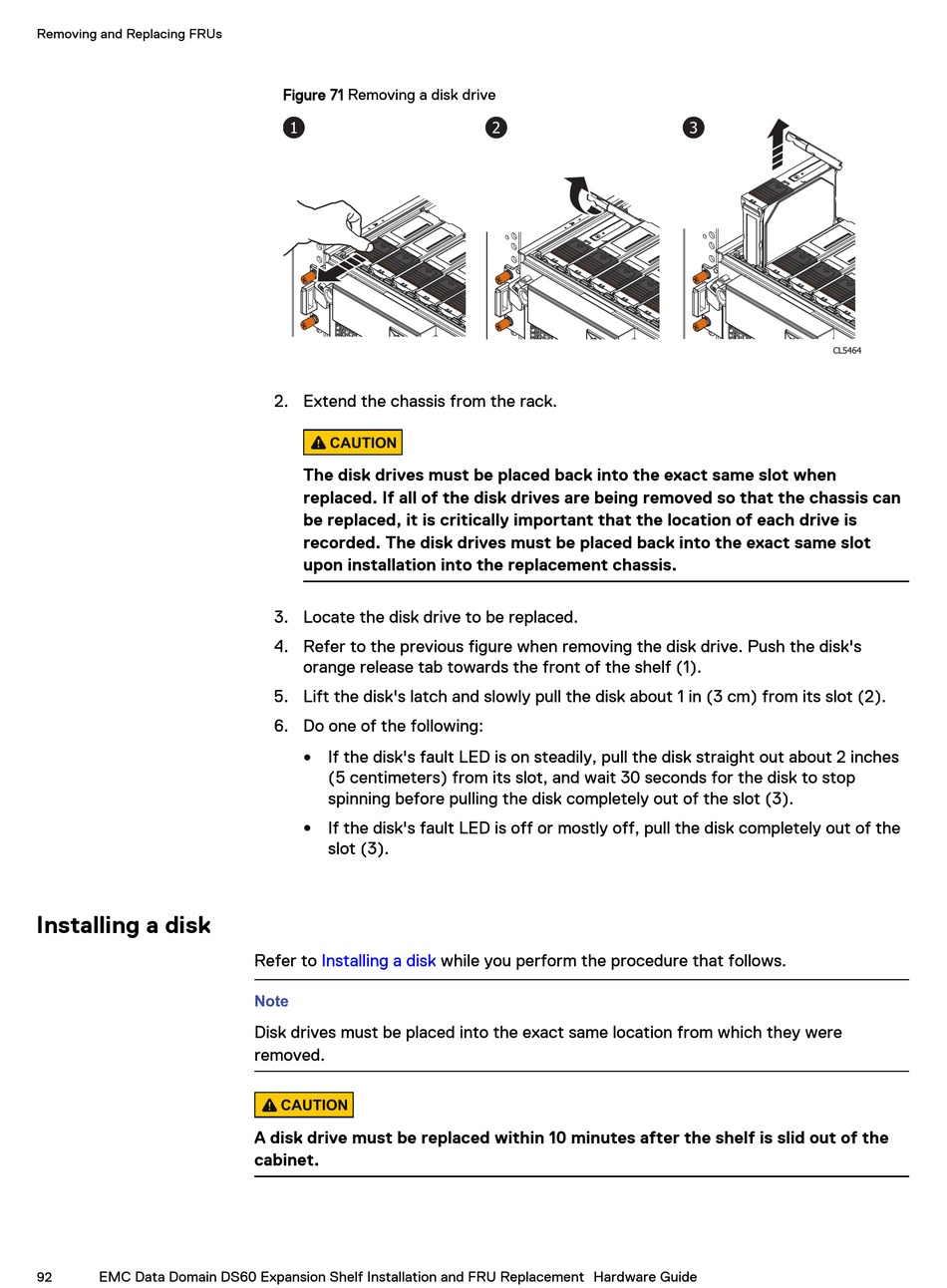

Figure 71 Removing a disk drive
1
2. Extend the chassis from the rack.
CAUTION
The disk drives must be placed back into the exact same slot when
replaced. If all of the disk drives are being removed so that the chassis can
be replaced, it is critically important that the location of each drive is
recorded. The disk drives must be placed back into the exact same slot
upon installation into the replacement chassis.
3. Locate the disk drive to be replaced.
4. Refer to the previous figure when removing the disk drive. Push the disk's
orange release tab towards the front of the shelf (1).
5. Lift the disk's latch and slowly pull the disk about 1 in (3 cm) from its slot (2).
6. Do one of the following:
If the disk's fault LED is on steadily, pull the disk straight out about 2 inches
l
(5 centimeters) from its slot, and wait 30 seconds for the disk to stop
spinning before pulling the disk completely out of the slot (3).
If the disk's fault LED is off or mostly off, pull the disk completely out of the
l
slot (3).
Refer to Installing a disk
Note
Disk drives must be placed into the exact same location from which they were
removed.
CAUTION
A disk drive must be replaced within 10 minutes after the shelf is slid out of the
cabinet.
2
while you perform the procedure that follows.
3
CL5464
