Chassis replacement

Working with the portable lift

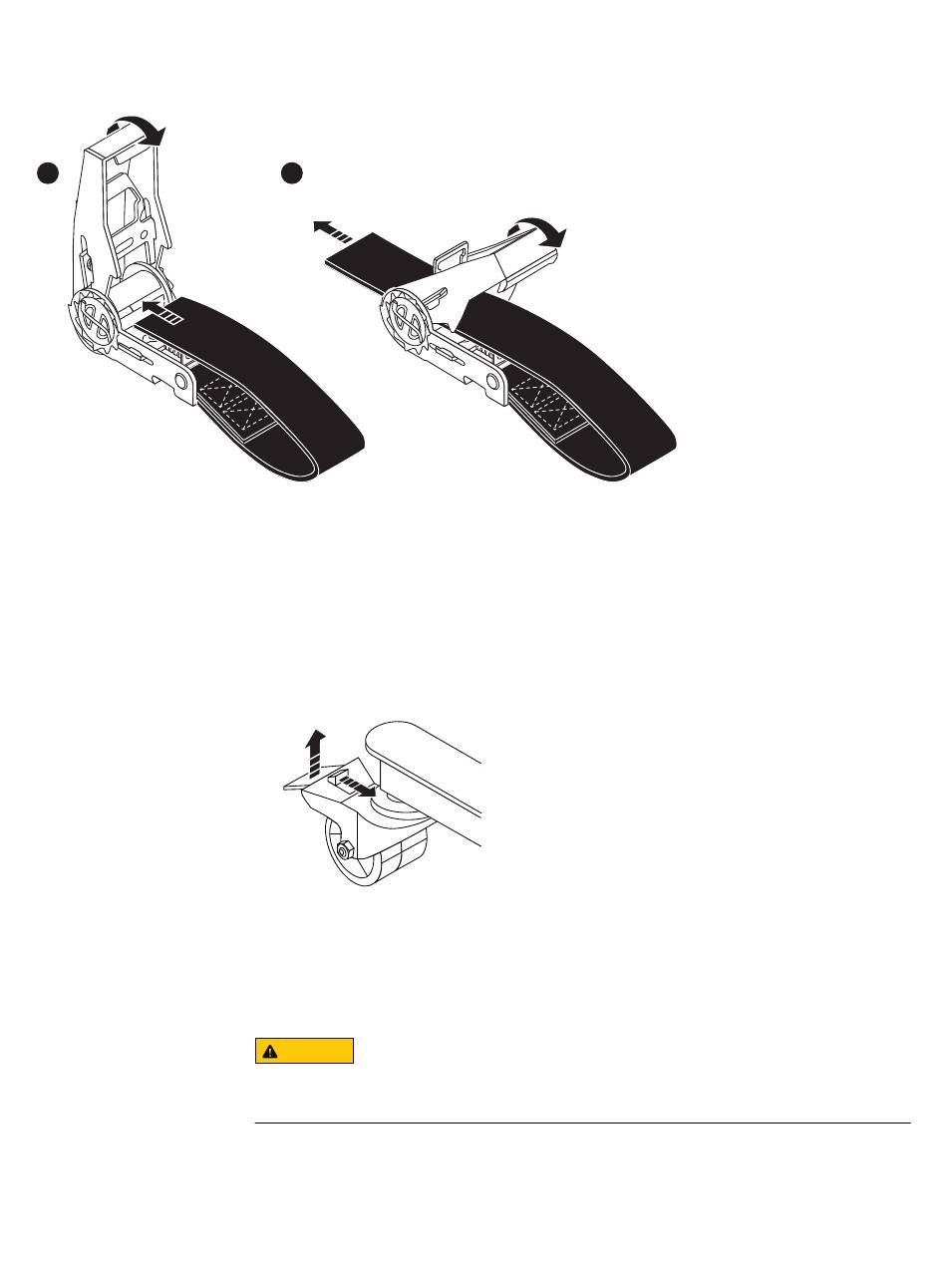

Figure 87 Tightening the straps
2
c. Make sure the shelf is securely strapped to the lift before moving. Once the
shelf is supported by the arm, lower the arm to the lowest point that still
permits travel.
This allows the shelf to be moved with minimal danger of tipping over.
10. Unlock the casters by lifting up on the locking tabs and move the shelf as
required.
Figure 88 Unlocking the casters
This procedure describes how to replace a chassis after the FRUs have been
transferred into it.
CAUTION
The populated shelf can weigh 225 pounds. DO NOT ATTEMPT to lift or move it
without a lift.
If a shelf with all of the FRUs removed is being installed, the chassis can be installed
without using the lift. If the shelf is populated with FRUs prior to installing, then this
task requires the use of a portable lift.
CL5424
Removing and Replacing FRUs
CL5429
Chassis replacement
