Installing Top Cover Using Truss Head Screws; Truss Head Screws - EMC Data Domain DS60 Hardware Manual

Removing and Replacing FRUs
EMC Data Domain DS60 Expansion Shelf Installation and FRU Replacement Hardware Guide
162

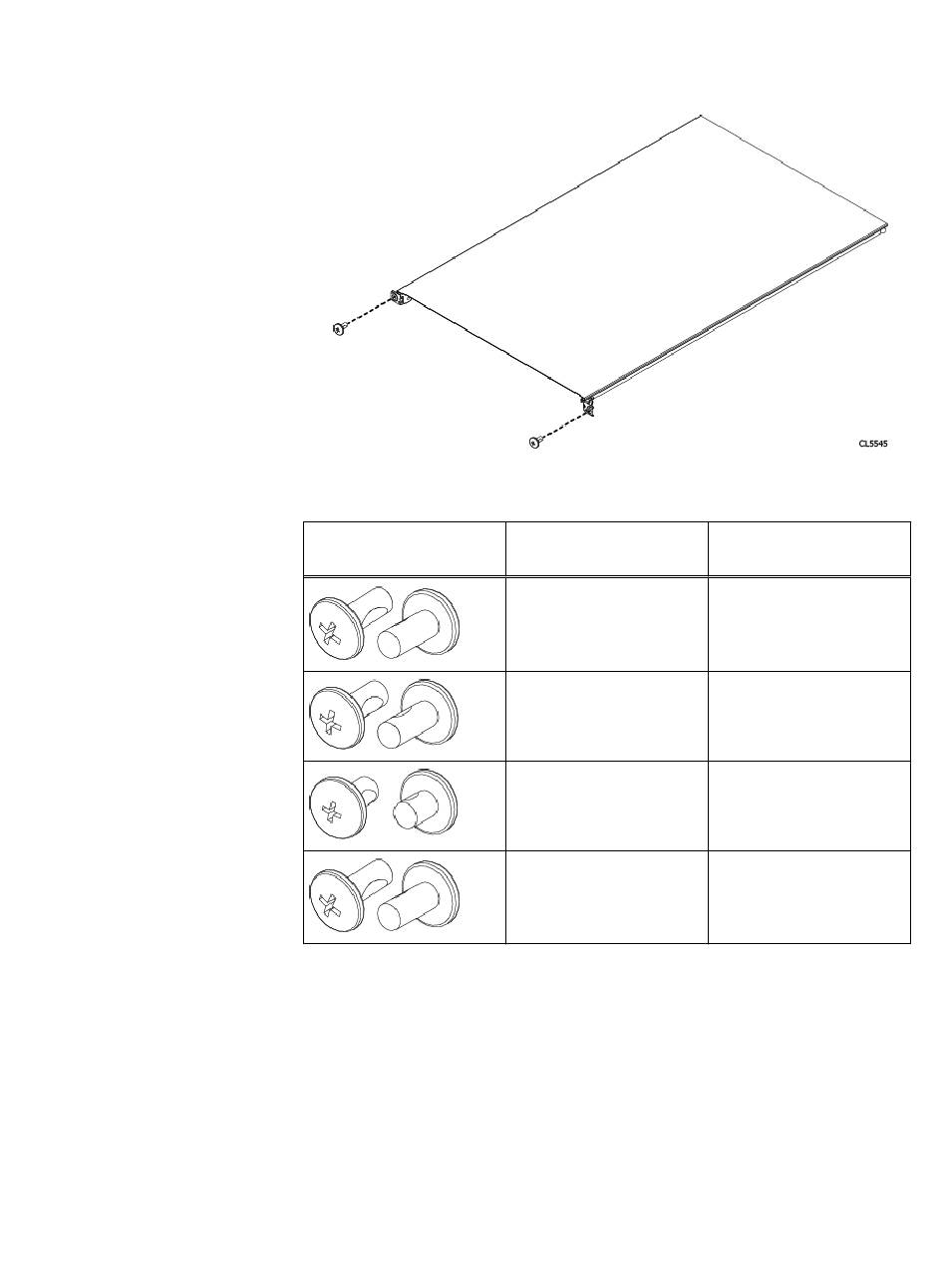

Figure 145 Installing top cover using truss head screws
Table 20 Truss Head Screws
Truss Head Screw from
kit
4. To secure the top cover using a top cover with semi-captive screws, do the
following:
a. For an EMC rack, align the semi-captive screws with the mounting hole in
the cabinet and thread the screw into the mounting hole.
5. If a non-EMC rack is being used that is not compatible with the semi-captive
screw, remove the semi-captive screw by pulling the screw assembly out the
side of the top cover. Identify the mounting holes on the rack that will line up
with the mounting holes on the top cover. Identify which truss head screws will
be used to secure the top cover to the rack (refer to the following table for
guidance). For non-threaded racks, place tinnernam clips over the rack
mounting holes. Attach the top cover to the rack using the appropriate truss
head screws from the hardware kit that comes with the shelf.
Part Number and
Description
036-032-010
Screw, M5-0.8x12, Truss
Head Phillips with patch
036-032-011
Screw, M6-1.0x12, Truss
Head Phillips with patch
036-032-009
Screw, 10-32x.5, Truss
Head Phillips with patch
036-032-012
Screw, 12-24x.5, Truss
Head Phillips with patch
Suggested Use
Can be used in EMC racks
and third-party non-
threaded hole racks.
Can be used in non-EMC
racks.
Can be used in non-EMC
racks.
Can be used in non-EMC
racks.
