Remove Chassis Bracket From Chassis; Remove The Chassis Bracket - EMC Data Domain DS60 Hardware Manual

2. At the front of the rack, press the release buttons on the front bezel and
remove it from the tray.

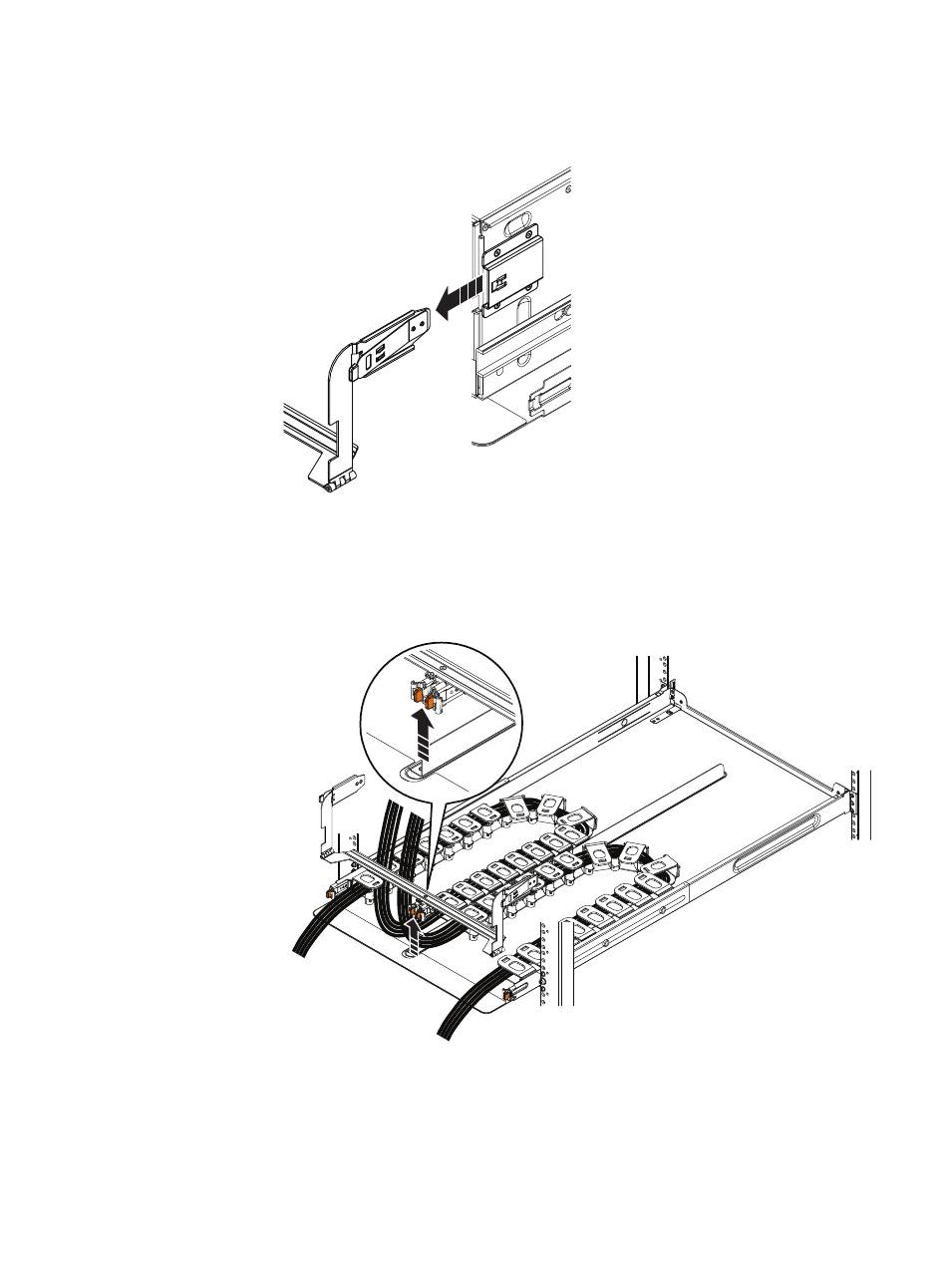

Figure 106 Remove chassis bracket from chassis
3. Press the tabs on the chassis bracket and remove it from the brackets on the
sides of the chassis.
4. Press the tabs and unclip the cable chains from the chassis bracket.
Figure 107 Remove the chassis bracket

5. Remove the chassis bracket.

CL5547
Removing the 1U cable tray
Removing and Replacing FRUs
CL5548
131
