Removing and Replacing FRUs

Pulling the shelf chassis out

Removing a fan module

EMC Data Domain DS60 Expansion Shelf Installation and FRU Replacement Hardware Guide
96
DANGER
Do not extend more than one shelf at a time. Extending more than one shelf at a
time can cause the rack to tip over, which will damage the equipment and may
injure personnel.
To access the internal components, you must release and pull the shelf out of the
cabinet. The shelf slides out of the cabinet far enough for you to access its internal
components and then locks on the rails in the service position so that you cannot pull
it out any farther. The chassis is freed from the cabinet by removing captive shoulder
screws which attach the chassis to the cabinet.
Procedure
1. Unscrew the attaching screws from the NEMA channel.
2. Unscrew the shoulder-screws until they are free from the cabinet. Using the
orange shelf latch handles, pull the slowly pull shelf completely out the cabinet.

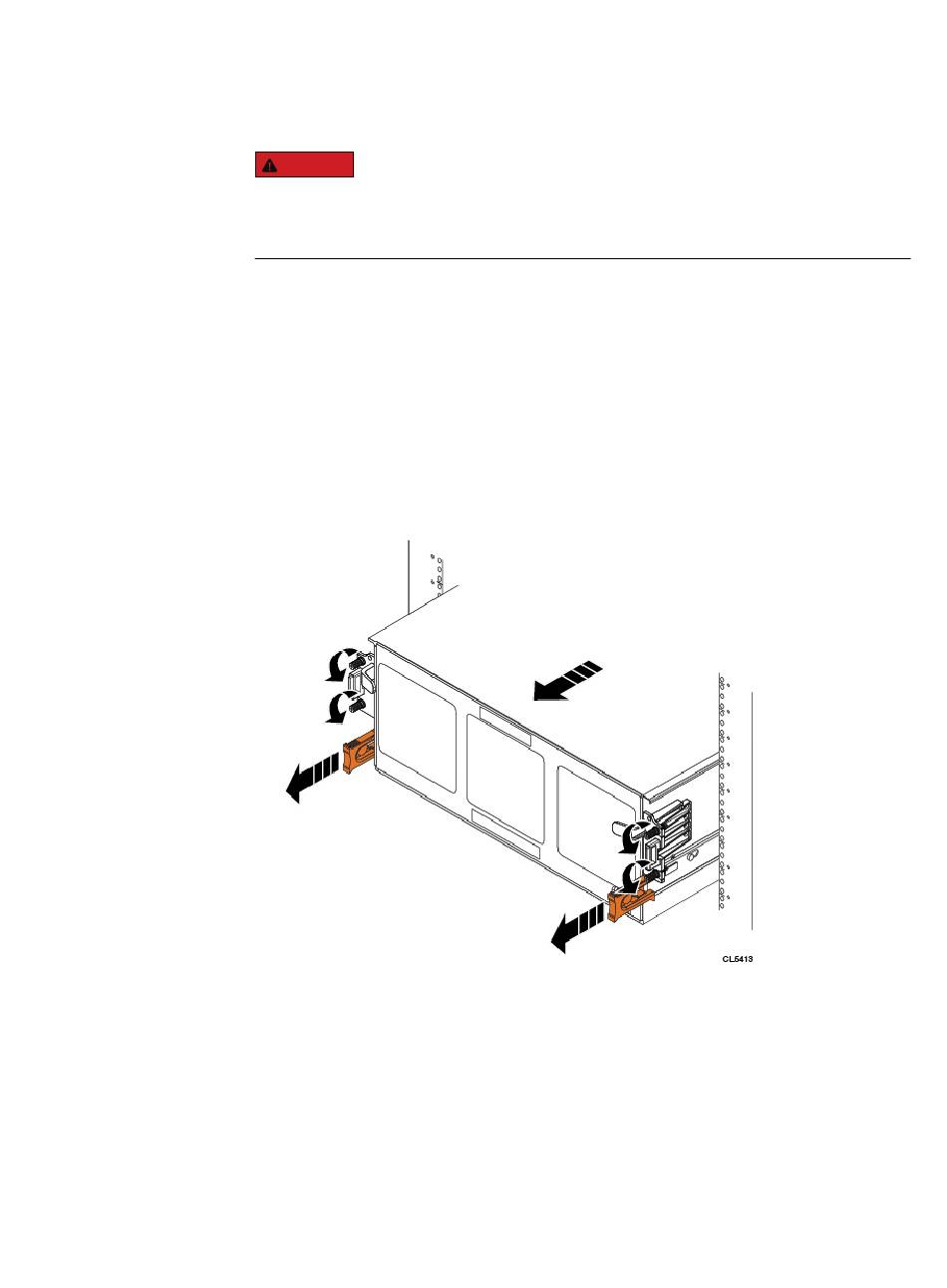

Figure 74 Pulling the Chassis Out (Two shoulder Screw Configuration)
Before you begin
Attach an ESD wristband to your wrist and the shelf with the fan module.
