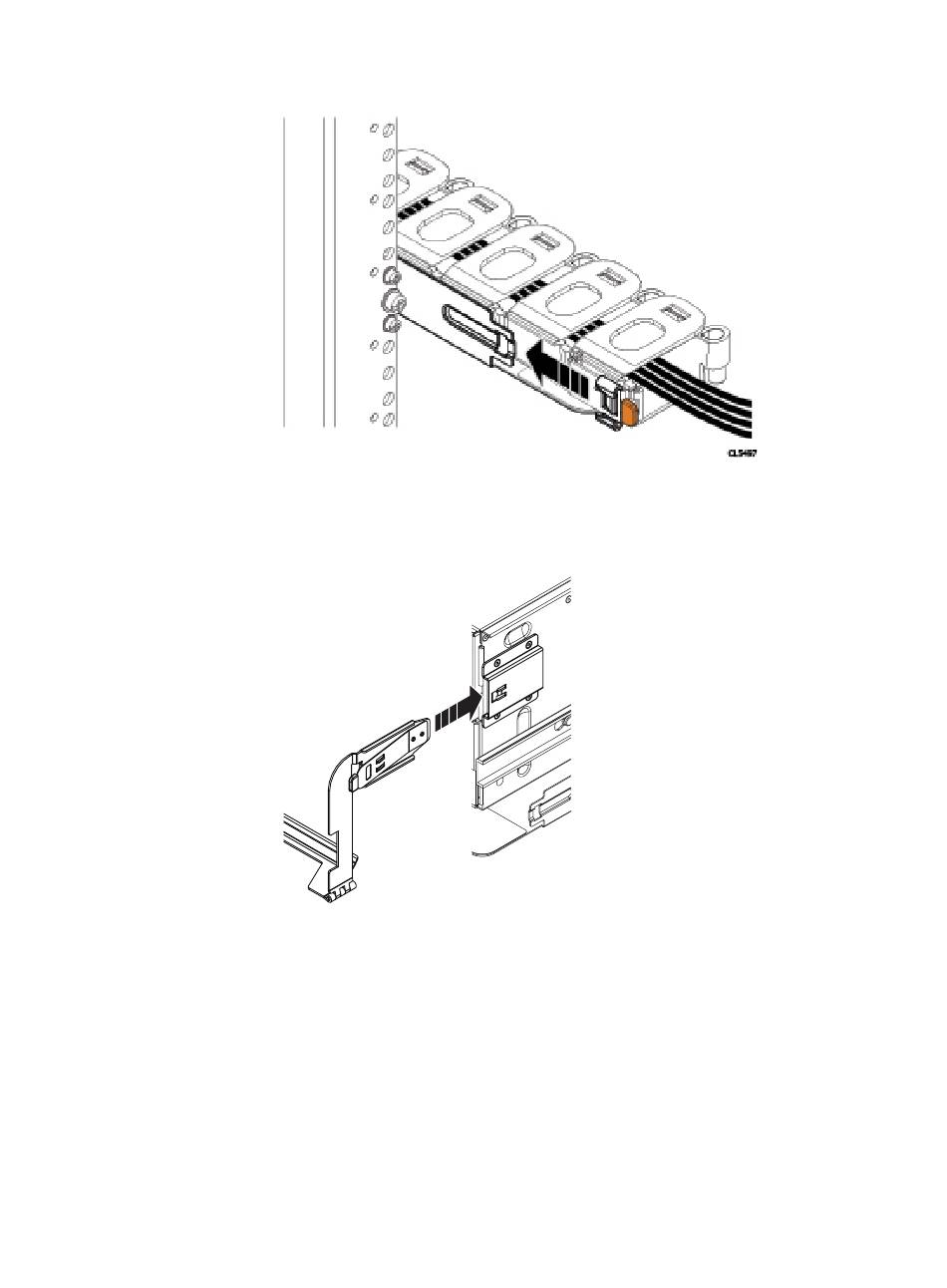

Figure 115 Attaching cable chains to tray
5. Attach the Cable Chains to the tray, by attaching the clips onto the tabs on the
rear of the tray.
Figure 116 Installing the chassis bracket into the shelf
6. Snap the chassis bracket clips into the brackets on the side of the chassis.
