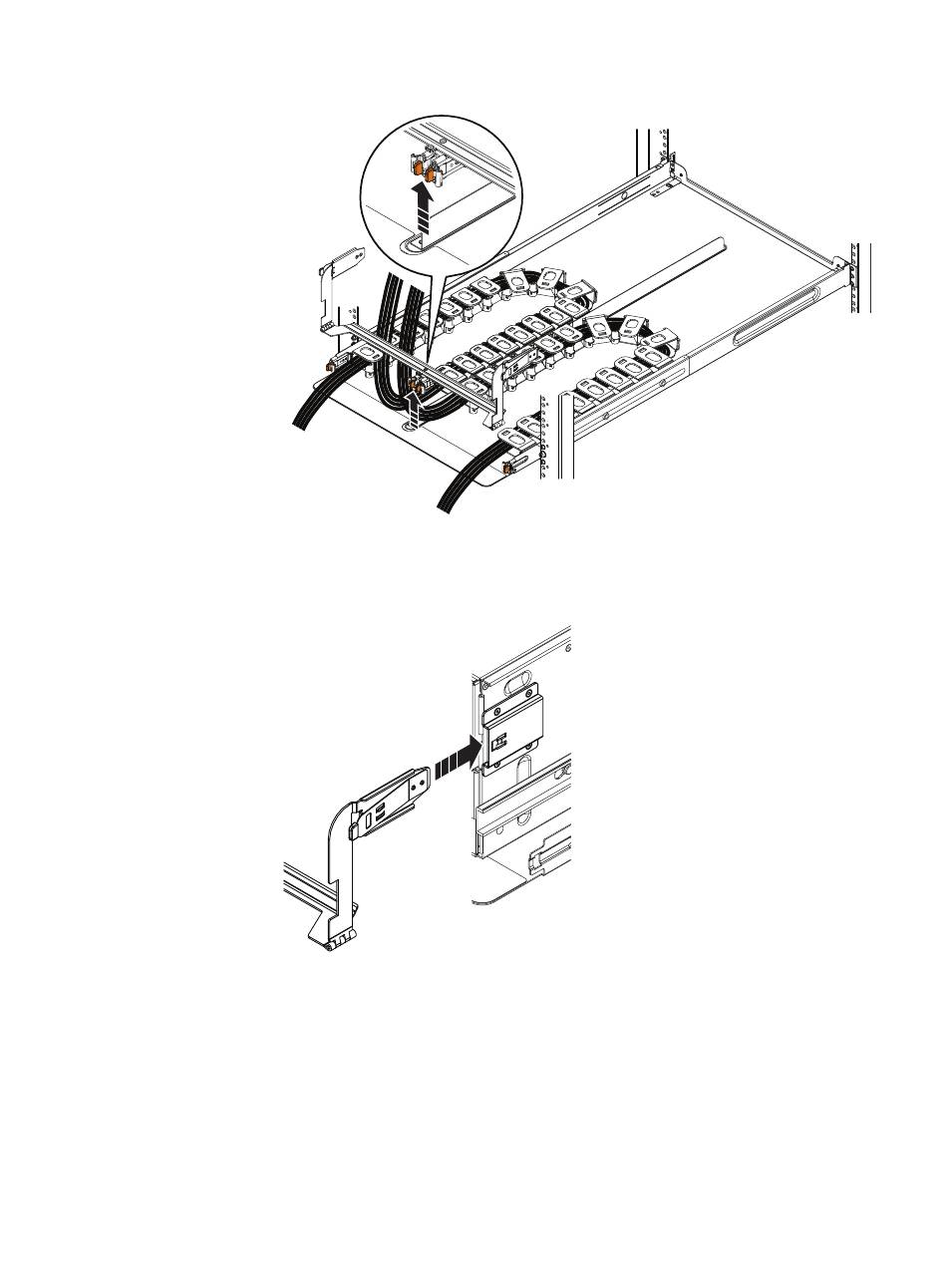

Figure 150 Remove the chassis bracket

5. Remove the chassis bracket.

Figure 151 Unclip the cable chains from the tray
6. Press the tabs and unclip the cable chains from the tray.
7. Unclip the cable chain baskets and remove the cables from the cable chains.
Remove the cable chains.
8. Re-insert the shelf into the rack.
CL5500
1U cable tray removal
Removing and Replacing FRUs
CL5548
169
