Unlocking The Casters; Tightening The Straps - EMC Data Domain DS60 Hardware Manual

1
b. Insert the free end of the securing strap into the slot on the ratchet
mechanism. Pull the ratchet handle down to tighten the securing strap
around the lift and the shelf.

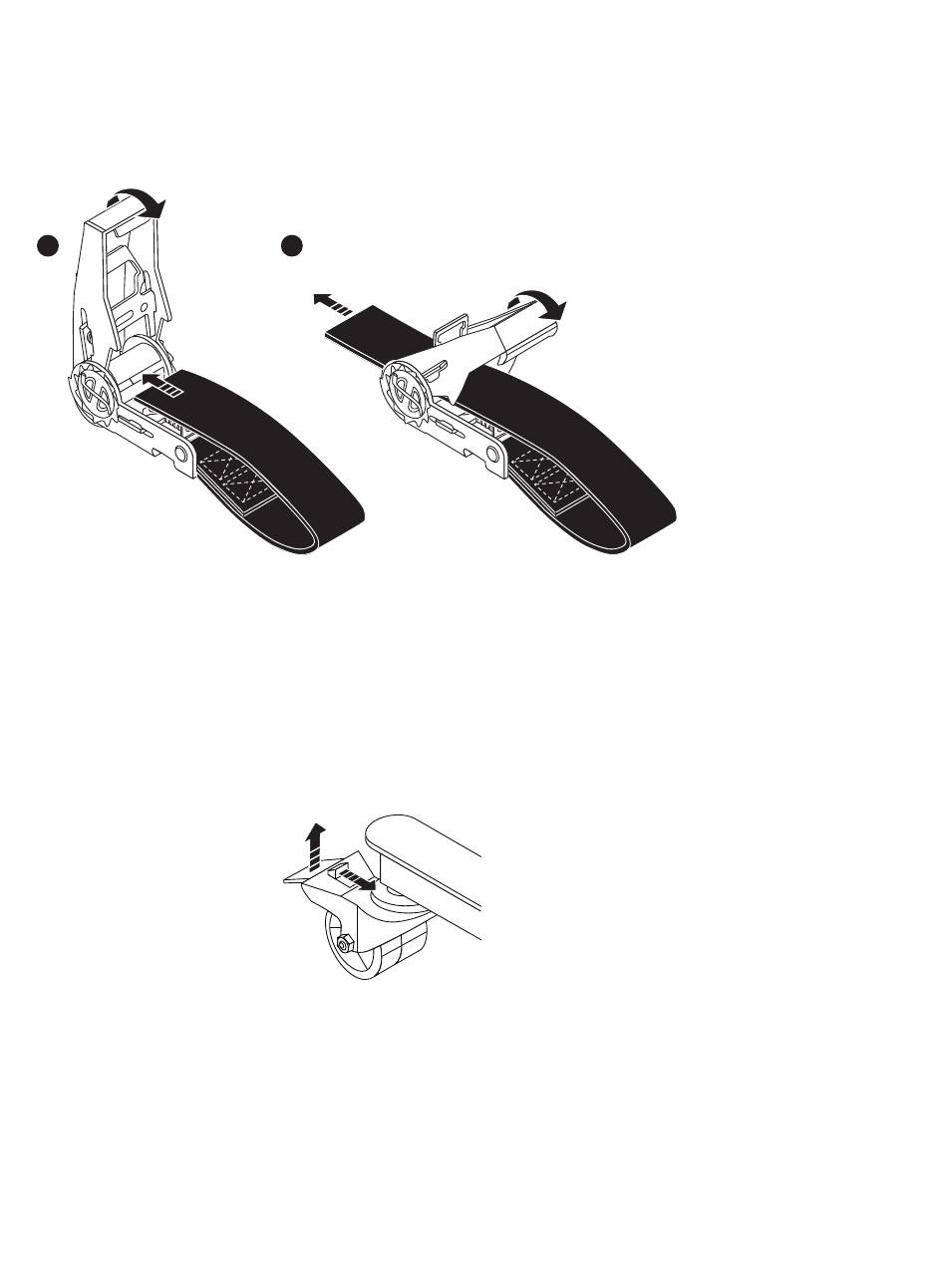

Figure 31 Tightening the straps
2
c. Make sure the shelf is securely strapped to the lift before moving. Use the
cordless drill to raise the arm to lift the node from the support table. Once
the shelf is supported by the arm, lower the arm to the lowest point that still
permits travel.
This allows the shelf to be moved with minimal danger of tipping over.
6. Unlock the casters by lifting up on the locking tabs and move the shelf as
required.
Figure 32 Unlocking the casters
CL5424
7. Move the shelf to the support table. Use the drill to raise or lower the shelf
above the support table. Move the shelf over the support table, and use the drill
to lower the shelf onto the table.
CL5429
Using the lift on a shelf more than 49" above the floor
Shelf Installation and Removal
47
