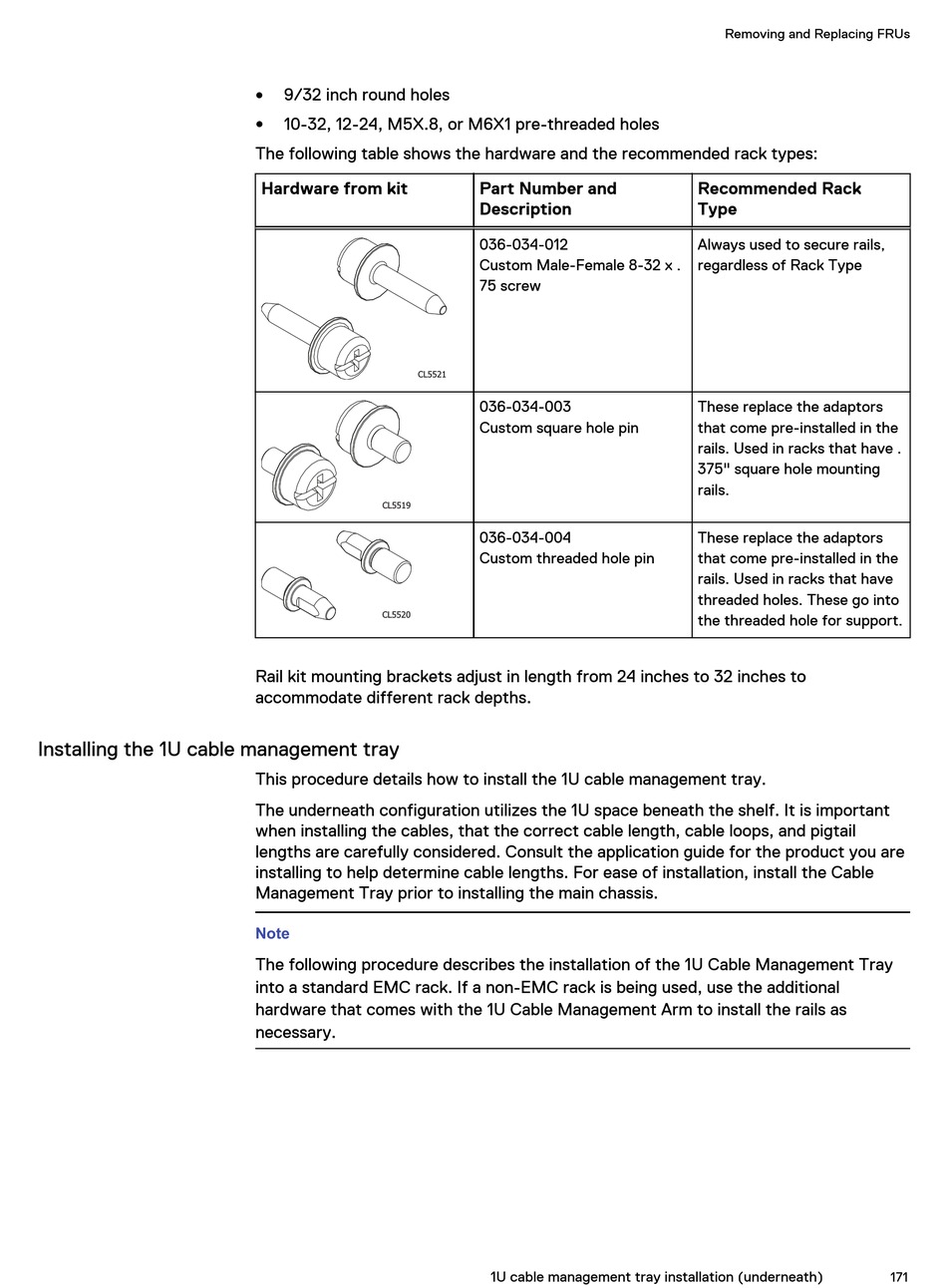

EMC Data Domain DS60 Hardware Manual page 171

Installing the 1U cable management tray
9/32 inch round holes
l
10-32, 12-24, M5X.8, or M6X1 pre-threaded holes
l
The following table shows the hardware and the recommended rack types:
Hardware from kit
CL5521
CL5519
CL5520
Rail kit mounting brackets adjust in length from 24 inches to 32 inches to
accommodate different rack depths.
This procedure details how to install the 1U cable management tray.
The underneath configuration utilizes the 1U space beneath the shelf. It is important
when installing the cables, that the correct cable length, cable loops, and pigtail
lengths are carefully considered. Consult the application guide for the product you are
installing to help determine cable lengths. For ease of installation, install the Cable
Management Tray prior to installing the main chassis.
Note
The following procedure describes the installation of the 1U Cable Management Tray
into a standard EMC rack. If a non-EMC rack is being used, use the additional
hardware that comes with the 1U Cable Management Arm to install the rails as
necessary.
Part Number and
Description
036-034-012
Custom Male-Female 8-32 x .
75 screw
036-034-003
Custom square hole pin
036-034-004
Custom threaded hole pin
1U cable management tray installation (underneath)
Removing and Replacing FRUs
Recommended Rack
Type
Always used to secure rails,
regardless of Rack Type
These replace the adaptors
that come pre-installed in the
rails. Used in racks that have .
375" square hole mounting
rails.
These replace the adaptors
that come pre-installed in the
rails. Used in racks that have
threaded holes. These go into
the threaded hole for support.
