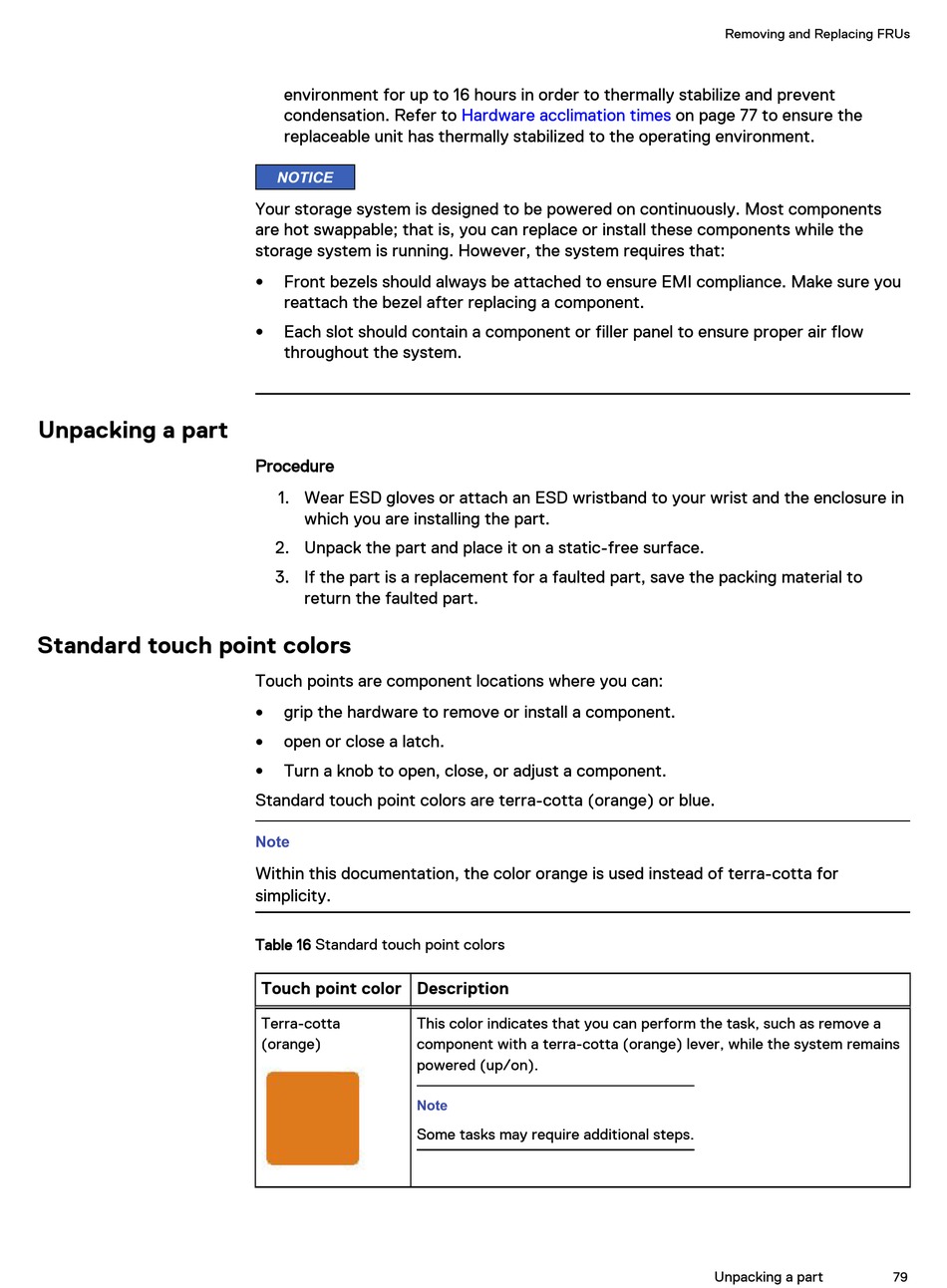

Unpacking a part

Standard touch point colors

environment for up to 16 hours in order to thermally stabilize and prevent
condensation. Refer to
replaceable unit has thermally stabilized to the operating environment.
NOTICE
Your storage system is designed to be powered on continuously. Most components
are hot swappable; that is, you can replace or install these components while the
storage system is running. However, the system requires that:
Front bezels should always be attached to ensure EMI compliance. Make sure you
l
reattach the bezel after replacing a component.
Each slot should contain a component or filler panel to ensure proper air flow
l
throughout the system.
Procedure
1. Wear ESD gloves or attach an ESD wristband to your wrist and the enclosure in
which you are installing the part.
2. Unpack the part and place it on a static-free surface.
3. If the part is a replacement for a faulted part, save the packing material to
return the faulted part.
Touch points are component locations where you can:
grip the hardware to remove or install a component.
l
open or close a latch.
l
Turn a knob to open, close, or adjust a component.
l
Standard touch point colors are terra-cotta (orange) or blue.
Note
Within this documentation, the color orange is used instead of terra-cotta for
simplicity.
Table 16 Standard touch point colors
Touch point color Description
Terra-cotta This color indicates that you can perform the task, such as remove a
(orange) component with a terra-cotta (orange) lever, while the system remains
powered (up/on).
Note
Some tasks may require additional steps.
Hardware acclimation times
Removing and Replacing FRUs
on page 77 to ensure the
Unpacking a part
79
