Removing and Replacing FRUs
EMC Data Domain DS60 Expansion Shelf Installation and FRU Replacement Hardware Guide
132

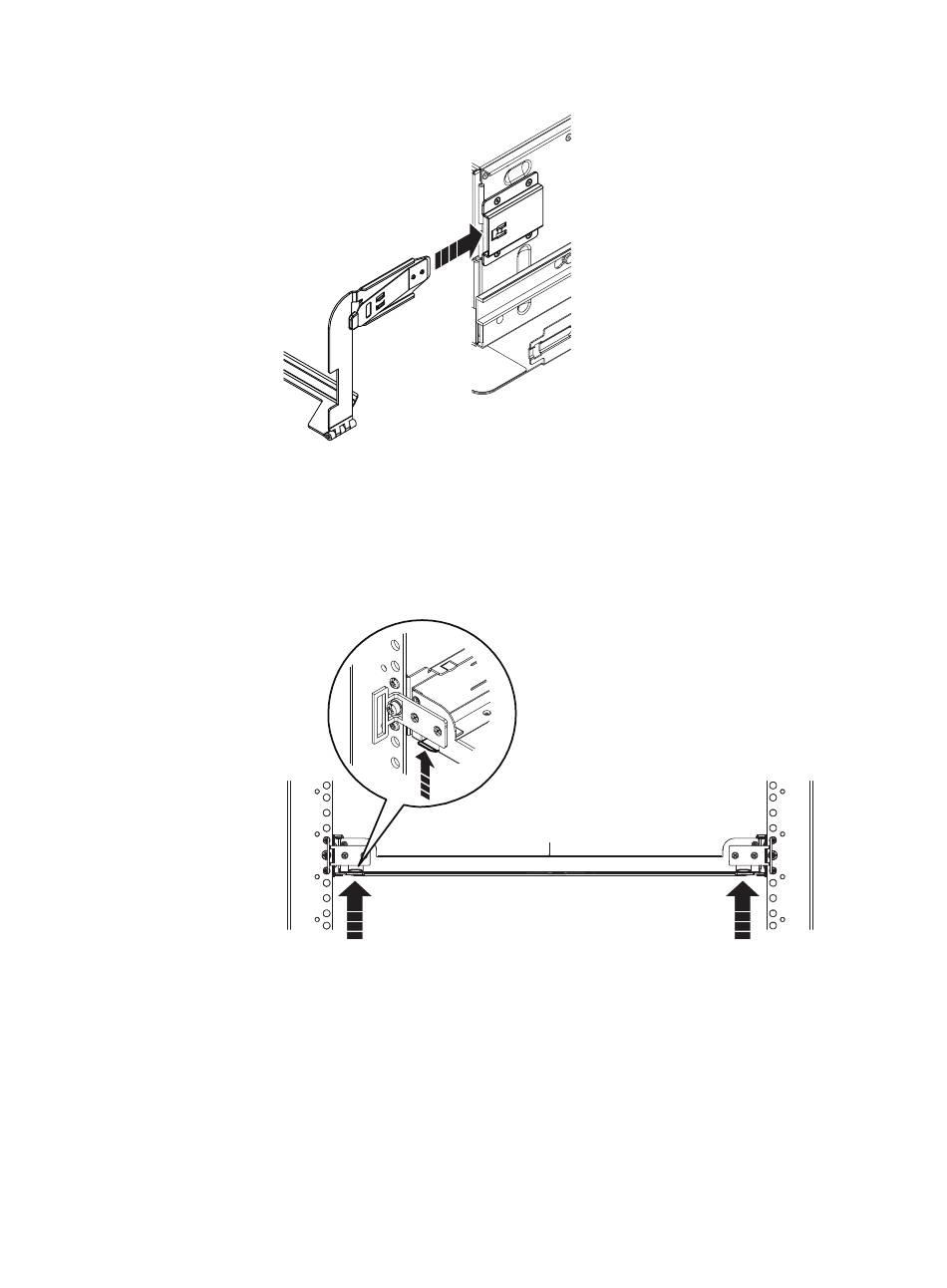

Figure 108 Unclip the cable chains from the tray
6. Press the tabs and unclip the cable chains from the tray.
7. Unclip the cable chain baskets and remove the cables from the cable chains.
Remove the cable chains.
8. Re-insert the shelf into the rack.
Figure 109 Push spring clips up to release the tray
CL5500
CL5523
