Tightening The Straps; Unlocking The Casters - EMC Data Domain DS60 Hardware Manual

Removing and Replacing FRUs
1
EMC Data Domain DS60 Expansion Shelf Installation and FRU Replacement Hardware Guide
150

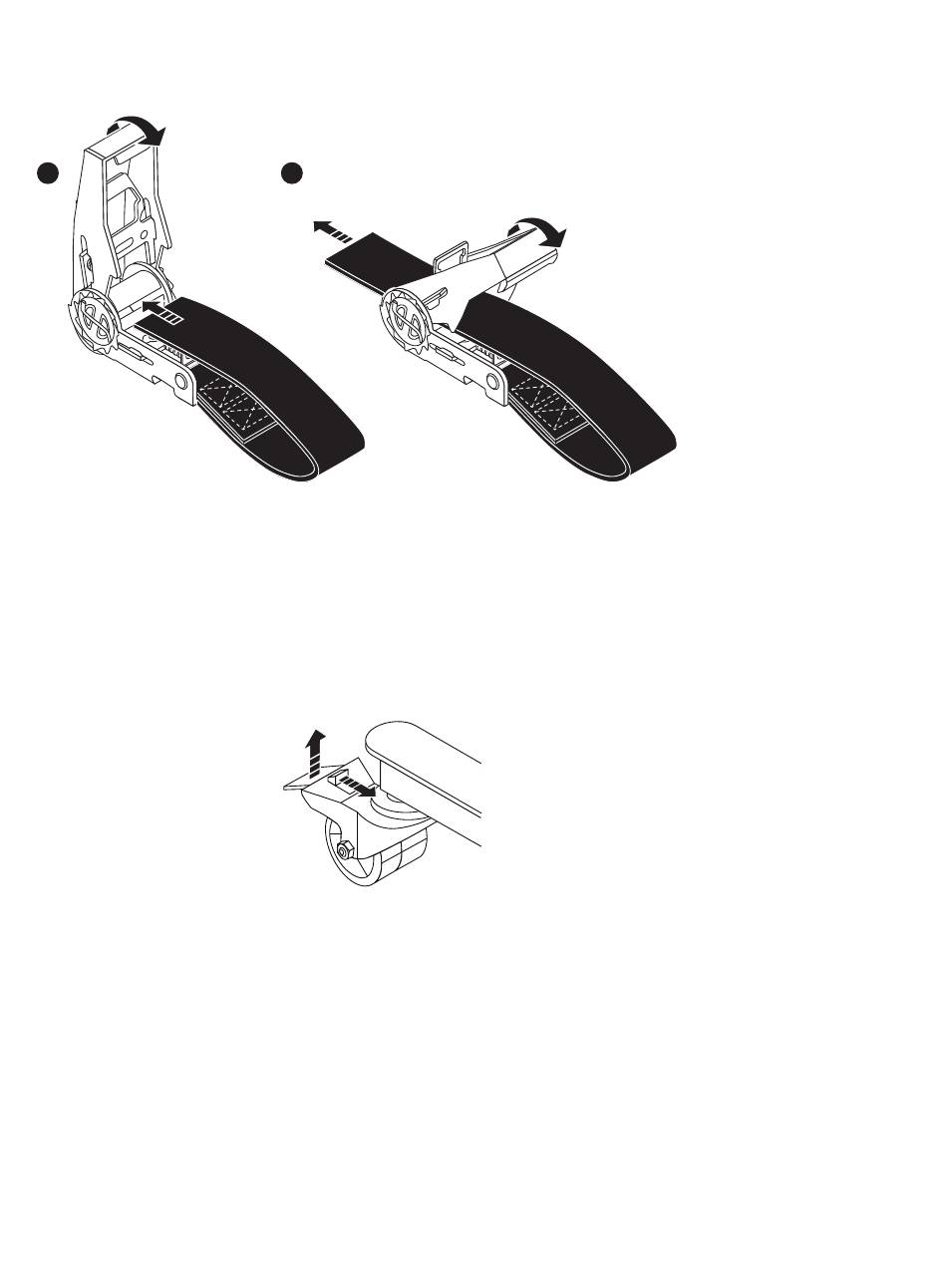

Figure 131 Tightening the straps
2
c. Make sure the shelf is securely strapped to the lift before moving. Once the
shelf is supported by the arm, lower the arm to the lowest point that still
permits travel.
This allows the shelf to be moved with minimal danger of tipping over.
10. Unlock the casters by lifting up on the locking tabs and move the shelf as
required.
Figure 132 Unlocking the casters
CL5424
CL5429
