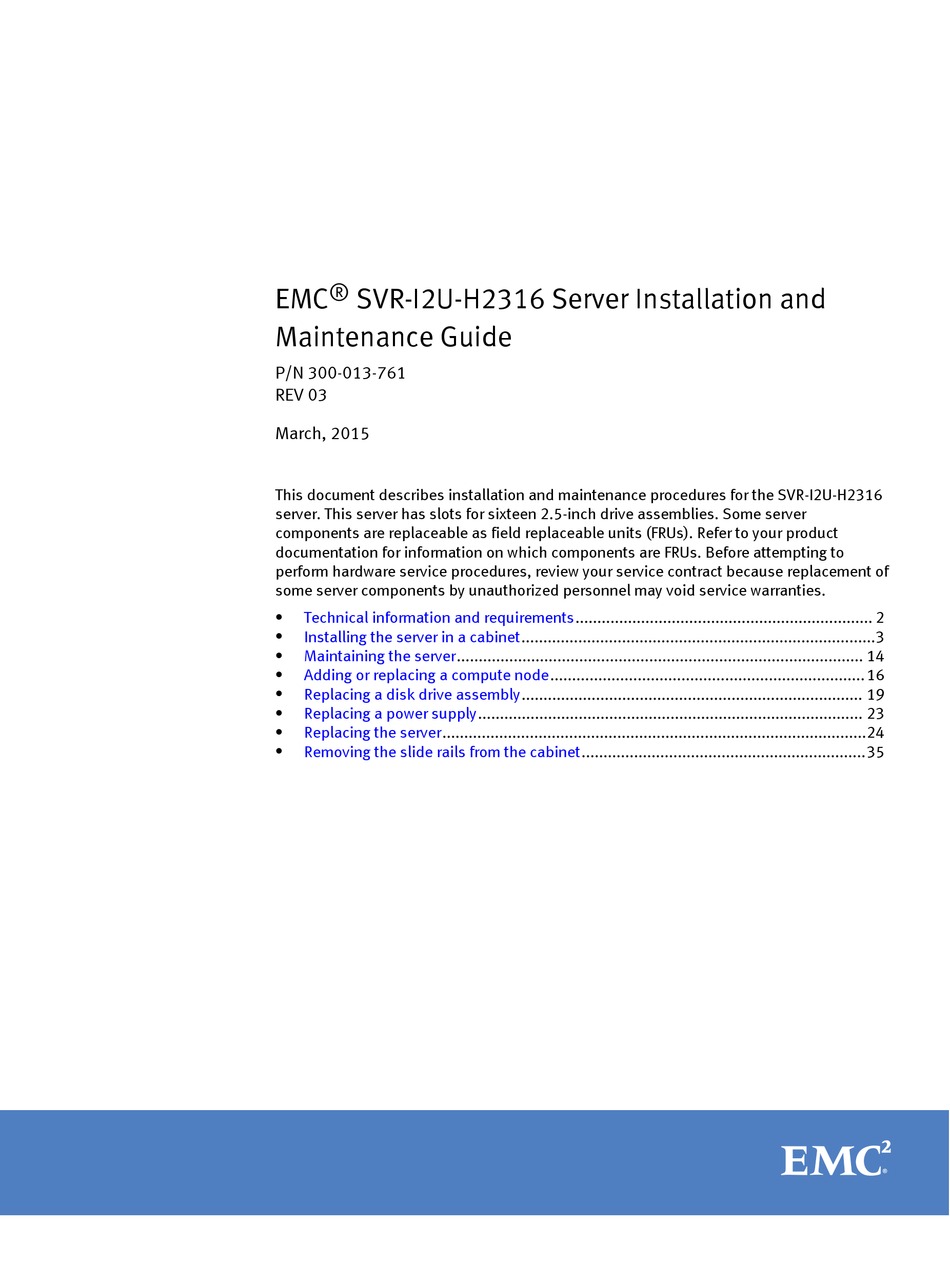

EMC
SVR-I2U-H2316 Server Installation and
Maintenance Guide
P/N 300-013-761
REV 03
March, 2015
This document describes installation and maintenance procedures for the SVR-I2U-H2316
server. This server has slots for sixteen 2.5-inch drive assemblies. Some server
components are replaceable as field replaceable units (FRUs). Refer to your product
documentation for information on which components are FRUs. Before attempting to
perform hardware service procedures, review your service contract because replacement of
some server components by unauthorized personnel may void service warranties.
Technical information and
l
Installing the server in a
l
Maintaining the
server............................................................................................. 14
l
Adding or replacing a compute
l
Replacing a disk drive
l
Replacing a power
supply........................................................................................ 23
l
Replacing the
server.................................................................................................24
l
Removing the slide rails from the
l
requirements.................................................................... 2
cabinet.................................................................................3
node........................................................................ 16
assembly.............................................................................. 19
cabinet.................................................................35

Advertisement

loading
Need help?

Need help?

Do you have a question about the SVR-I2U-H2316 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EMC SVR-I2U-H2316

Summary of Contents for EMC SVR-I2U-H2316

  • Page 1 P/N 300-013-761 REV 03 March, 2015 This document describes installation and maintenance procedures for the SVR-I2U-H2316 server. This server has slots for sixteen 2.5-inch drive assemblies. Some server components are replaceable as field replaceable units (FRUs). Refer to your product documentation for information on which components are FRUs.

  • Page 2: Server Dimensions And Weight

    EMC provides a power and weight calculator at http:// powercalculator.EMC.com. Use this calculator to refine the power and heat values in the table below to more-closely match the specific server hardware configuration. Ensure that the server installation site meets the requirements for your configuration.

  • Page 3: Operating Limits

    ® SVR-I2U-H2316 Server Installation and Maintenance Guide Rating label on the chassis. For additional information, refer to the preparation/planning guides for your specific site and cabinet. Operating limits The ambient temperature specification is measured at the front bezel inlet. The site must have air conditioning of the correct size and placement to maintain the specified ambient temperature range and offset the heat dissipation listed in the table that follows.

  • Page 4: Warnings And Recommendations

    9. Install the bezel on the server. 10. Power up the server. Warnings and recommendations The cabinet in which you will install the server must have a full earth ground to provide reliable grounding. Also, the cabinet should have its own switchable power distribution. We suggest that you use a cabinet that has dual power distribution units, one on each side.
  • Page 5 ® SVR-I2U-H2316 Server Installation and Maintenance Guide Table 5 Mounting kit parts (continued) Component CL4973 You need a # 2 Phillips-head screwdriver to complete the installation of the rails and server. Adjusting the rail assemblies for the cabinet channel holes The rail assemblies ship with round alignment posts at the end of the rails for cabinet channels (NEMA rails) with round holes.
  • Page 6 Figure 1 Switching from round rail alignment posts to square alignment posts CL4951 Removing inner rails from the rail assemblies Perform the procedure that follows on each rail assembly. Refer to Figure 2 on page 7 while performing the procedure. Procedure 1.
  • Page 7 ® SVR-I2U-H2316 Server Installation and Maintenance Guide Figure 2 Removing the inner rail from the slide rail CL4883 Attaching the inner rails to the server Attach an inner rail to each side of the server by performing the procedure that follows for each rail.
  • Page 8 Figure 3 Attaching an inner rail to the server CL4988 Installing the slide rails in the cabinet The universal rail assemblies for this server support cabinets in which the front and rear mounting channels are 24 inches to 34 inches apart. Each assembly contains a right and a left slide rail.
  • Page 9 ® SVR-I2U-H2316 Server Installation and Maintenance Guide Procedure 1. From the front of the cabinet, align rail alignment posts with the rear channel holes for the selected cabinet space for the server, and insert the alignment posts securely into the holes (Figure 5 on page An audible click indicates that the connection is secure.
  • Page 10 3. Secure the rail to the rear channel with a small stabilizer screw (Figure 7 on page 10). Figure 7 Installing stabilizer screws CL4854 Installing the server on the rails in the cabinet CAUTION The enclosure is heavy and should be installed into or removed from a rack by two people.
  • Page 11 ® SVR-I2U-H2316 Server Installation and Maintenance Guide NOTICE When installing the server in the cabinet, do not pick the server up by its power/control modules and do not push on its power/control modules. These modules are on either side of the front of the server.
  • Page 12 Figure 10 Inner rail over the first part of ball bearing retainer assembly CL5094 4. Once the inner rails are properly engaged with the ball bearing retainer assemblies, push the server into the cabinet until the slide rails are engaged and locked. An audible click indicates that the slide rails are engaged and locked.

  • Page 13: Connecting Cables

    ® SVR-I2U-H2316 Server Installation and Maintenance Guide Figure 12 Installing the server with two stabilizer screws CL4990 7. To further secure the rail assembly and server in the cabinet: a. Insert and tighten a Phillips pan-head 8-32 screw directly behind each bezel latch (Figure 13 on page 13).

  • Page 14: Installing The Bezel

    2. Attach any I/O cables as described in the documentation for your product. Installing the bezel Bezels are application specific, and may not appear as shown. Bezels may include a key lock. All bezels include two tabs on either side that you press in to release the bezel and its latches.
  • Page 15 ® SVR-I2U-H2316 Server Installation and Maintenance Guide Handling field replaceable units (FRUs) This section describes the precautions that you must take and the general procedures that you must follow when removing and storing any field replaceable unit (FRU). The only FRUs in the server are the disk drive assemblies and power supply modules.
  • Page 16 Adding or replacing a compute node Each compute node is in special hot-swappable tray that fits in a node slot. Node slots are accessible from the rear of the server. The locations of the node slots are as follows: Node 4 Power supply 2 Node 3 Node 2...
  • Page 17 ® SVR-I2U-H2316 Server Installation and Maintenance Guide Unpacking a part Procedure 1. Attach an ESD wristband to your wrist and the enclosure in which you are installing the part. 2. Unpack the part and place it on a static-free surface.
  • Page 18 Removing a faulted compute node Procedure 1. Unplug the cables attached to the faulted compute node. 2. While carefully pushing the green latch to the right on the faulted compute node, pull the node out of the server by its handle (Figure 17 on page 18).
  • Page 19 ® SVR-I2U-H2316 Server Installation and Maintenance Guide Figure 18 Installing a compute node CL5026 Replacing a disk drive assembly A disk drive assembly consists of a hard disk drive supplied in special hot-swappable hard-drive carrier that fits in a disk slot. Disk slots are accessible from the front of the server.
  • Page 20 at least four hours before attempting to use the new disk drive assemblies in your system. Avoid touching any exposed electronic components and circuits on the disk drive assembly. Do not stack disk drive assemblies upon one another, or place them on hard surfaces.
  • Page 21 ® SVR-I2U-H2316 Server Installation and Maintenance Guide Note Use the method described in step 2 to remove any of the disk drive assemblies except the two located behind the node control panel at right edge of the server. Use step 3 to remove either of the two disk drive assemblies that are located behind the node control panel.
  • Page 22 Figure 21 Removing the faulted disk drive assembly CL5576 4. Unpack the replacement disk drive assembly and save the packing material for returning the faulted disk drive assembly. 5. Install the replacement disk drive assembly (Figure 22 on page 22): a.

  • Page 23: Replacing A Power Supply

    ® SVR-I2U-H2316 Server Installation and Maintenance Guide Figure 23 Installing the bezel CL4991 Replacing a power supply The power supplies are accessible from the rear of the server. Before you use the procedure that follows to replace a faulted disk drive assembly, review the section on handing field replaceable units (FRUs).
  • Page 24 Figure 24 Removing a power supply CL4986 3. Unpack the replacement power supply and place it on a clean, static-free surface near the server. 4. While carefully pushing the green latch to the left on the replacement power supply, push the supply into the power supply cage until it clicks into place (Figure 25 on page 24).

  • Page 25: Powering Off The Server

    ® SVR-I2U-H2316 Server Installation and Maintenance Guide 6. Unpack the replacement server. 7. Attach the inner rails to the replacement server. 8. Install the replacement server on the rails in the cabinet. 9. Reconnect the cables that you removed from the original server to the replacement server.

  • Page 26: Removing The Server From The Cabinet

    Figure 26 Removing the bezel CL4992 Removing the server from the cabinet CAUTION The enclosure is heavy and should be installed into or removed from a rack by two people. To avoid personal injury and/or damage to the equipment, do not attempt to lift and install the enclosure into a rack without a mechanical lift and/or help from another person.
  • Page 27 ® SVR-I2U-H2316 Server Installation and Maintenance Guide NOTICE When removing the server from the cabinet, do not hold the server up by its power/ control module, which is on the right side of the front of the server. Note The illustration in step 1...
  • Page 28 Figure 28 Sliding server out of the cabinet to the locked position CL4993 3. Slide the blue disconnect tabs forward to release the inner rails from the slide rails (Figure 29 on page 28). NOTICE Once you release the server from the inner rails, you must support the full weight of the server.
  • Page 29 ® SVR-I2U-H2316 Server Installation and Maintenance Guide Procedure 1. On the middle of the inner rail, push in and hold the metal latch, and push the rail backward to release the connection studs from the small end of the rail notches.
  • Page 30 Procedure 1. With the flat side of the inner rail facing the side of the server, align the large end of the rail notches of the inner rail with the connection studs on the server and push the inner rail onto the connection studs. 2.
  • Page 31 ® SVR-I2U-H2316 Server Installation and Maintenance Guide Installing the server on the rails in the cabinet CAUTION The enclosure is heavy and should be installed into or removed from a rack by two people. To avoid personal injury and/or damage to the equipment, do not attempt to lift and install the enclosure into a rack without a mechanical lift and/or help from another person.
  • Page 32 Figure 32 Correct location for ball bearing retainer assembly CL5092 2. From the front of the cabinet, align the inner rails attached to the server with the white plastic guide block on the front inside of each slide rail (Figure 33 on page 32).
  • Page 33 ® SVR-I2U-H2316 Server Installation and Maintenance Guide Figure 34 Inner rail over the first part of ball bearing retainer assembly CL5094 4. Once the inner rails are properly engaged with the ball bearing retainer assemblies, push the server into the cabinet until the slide rails are engaged and locked.

  • Page 34: Reconnecting Cables

    Figure 36 Installing the server with two stabilizer screws CL4990 7. To further secure the rail assembly and server in the cabinet: a. Insert and tighten a Phillips pan-head 8-32 screw directly behind each bezel latch (Figure 37 on page 34).
  • Page 35 ® SVR-I2U-H2316 Server Installation and Maintenance Guide Reinstalling the bezel If a bezel covered the front of the server, reinstall the bezel using the procedure that follows. Refer to Figure 38 on page 35 while performing the procedure. Procedure 1. Pushing on the ends, not the middle, of the bezel, press the bezel onto the latch brackets until is snaps into place.
  • Page 36 Figure 39 Removing the rear stabilizing screws CL4854 2. Release each rail from the channels (Figure 40 on page 37): a. At each rail end, push and hold the alignment posts together. b. Slide the rail out of the channel, and remove it from the cabinet.
  • Page 37 ® SVR-I2U-H2316 Server Installation and Maintenance Guide Figure 40 Releasing the rail from the cabinet channels Rear CL4856 Removing the slide rails from the cabinet...
  • Page 38 2012-2015 EMC Corporation. All rights reserved. Published in USA. Published March, 2015 EMC believes the information in this publication is accurate as of its publication date. The information is subject to change without notice. The information in this publication is provided as is. EMC Corporation makes no representations or warranties of any kind with respect to the information in this publication, and specifically disclaims implied warranties of merchantability or fitness for a particular purpose.
