Shelf Installation and Removal
EMC Data Domain DS60 Expansion Shelf Installation and FRU Replacement Hardware Guide
54
Procedure
1. Identify the left and right rails. Orient the rails so that the UP arrow is pointed in
the correct direction and so that the end of the rails labeled FRONT is at the
front of the rack.

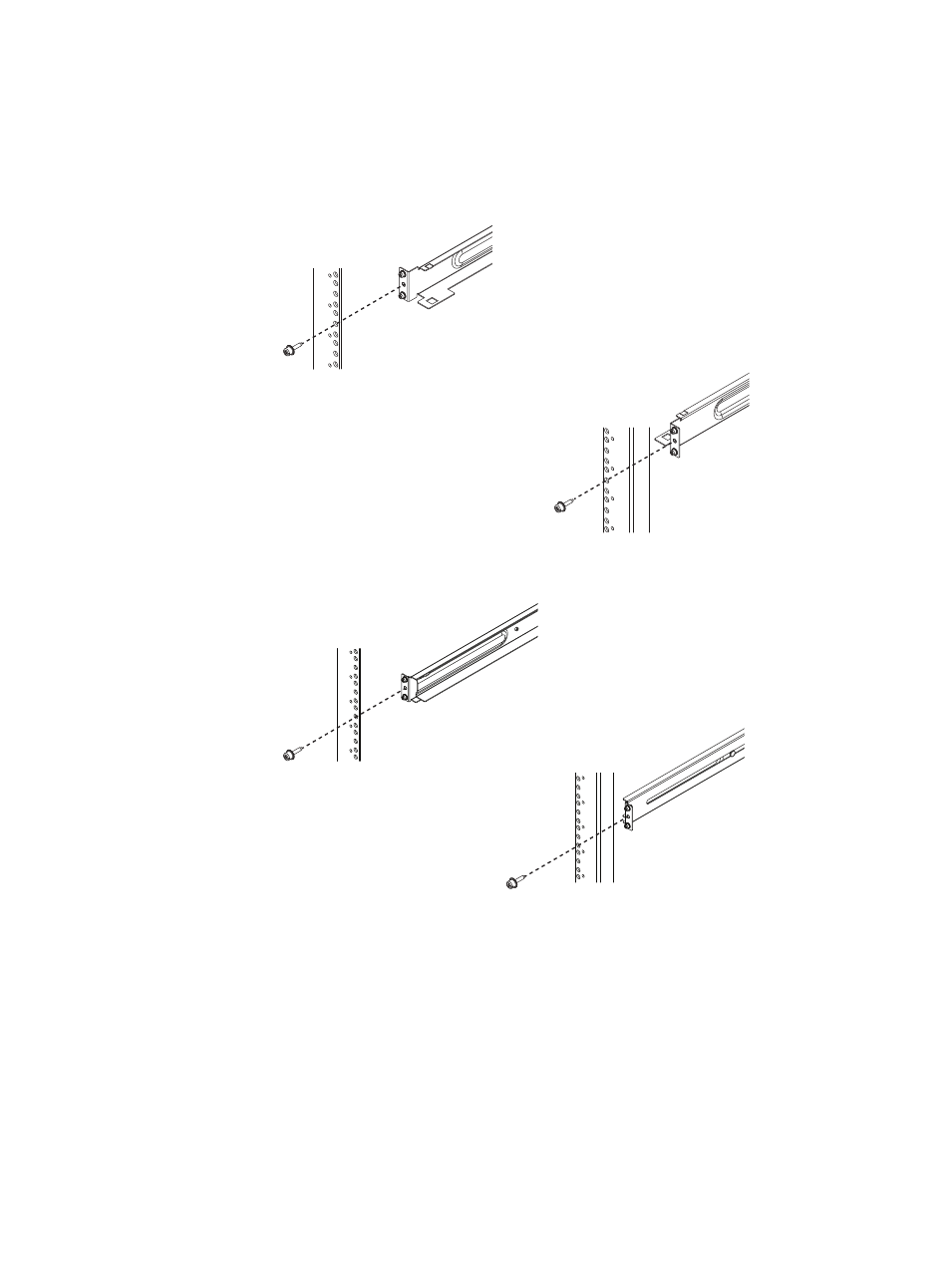

Figure 42 Installing/Securing rails - front
Figure 43 Installing/Securing rails - rear
2. The rails come pre-assembled with adaptors that fit into standard round
mounting holes. If the rack has a different configuration, use the adaptors in the
hardware kit that come with the tray to mount the rails. Align the flanges on the
inside of the mounting holes of the rack. The rails are adjustable to fit the size
rack you are using. Adjust the rails to the correct size and insert the two
adaptors on the rail into the mounting holes, in both the front and the rear of
the rails. Secure the rails to the rack using two knurled screws from the
hardware package, one in the front of the rail, and one in the rear of the rail. If a
torque screwdriver is available, torque the screws to 12-16 inch-pounds. Repeat
for the other rail.
CL5495
CL5518
