Removing and Replacing FRUs

Verify the power supplies

# enclosure show powersupply
This command may take up to a minute to complete. Please wait...
Enclosure Description
--------- ------------------- ------------
1 Power module A
1 Power module B
2 Power module A
2 Power module B
3 Power module A pack 1
3 Power module A pack 2
3 Power module A pack 3
3 Power module A pack 4
3 Power module B pack 1
3 Power module B pack 2
3 Power module B pack 3
3 Power module B pack 4
4 Power module A pack 1
4 Power module A pack 2
4 Power module A pack 3
4 Power module A pack 4
4 Power module B pack 1
4 Power module B pack 2
4 Power module B pack 3
4 Power module B pack 4
--------- --------------------- ------------
EMC Data Domain DS60 Expansion Shelf Installation and FRU Replacement Hardware Guide
82
Procedure

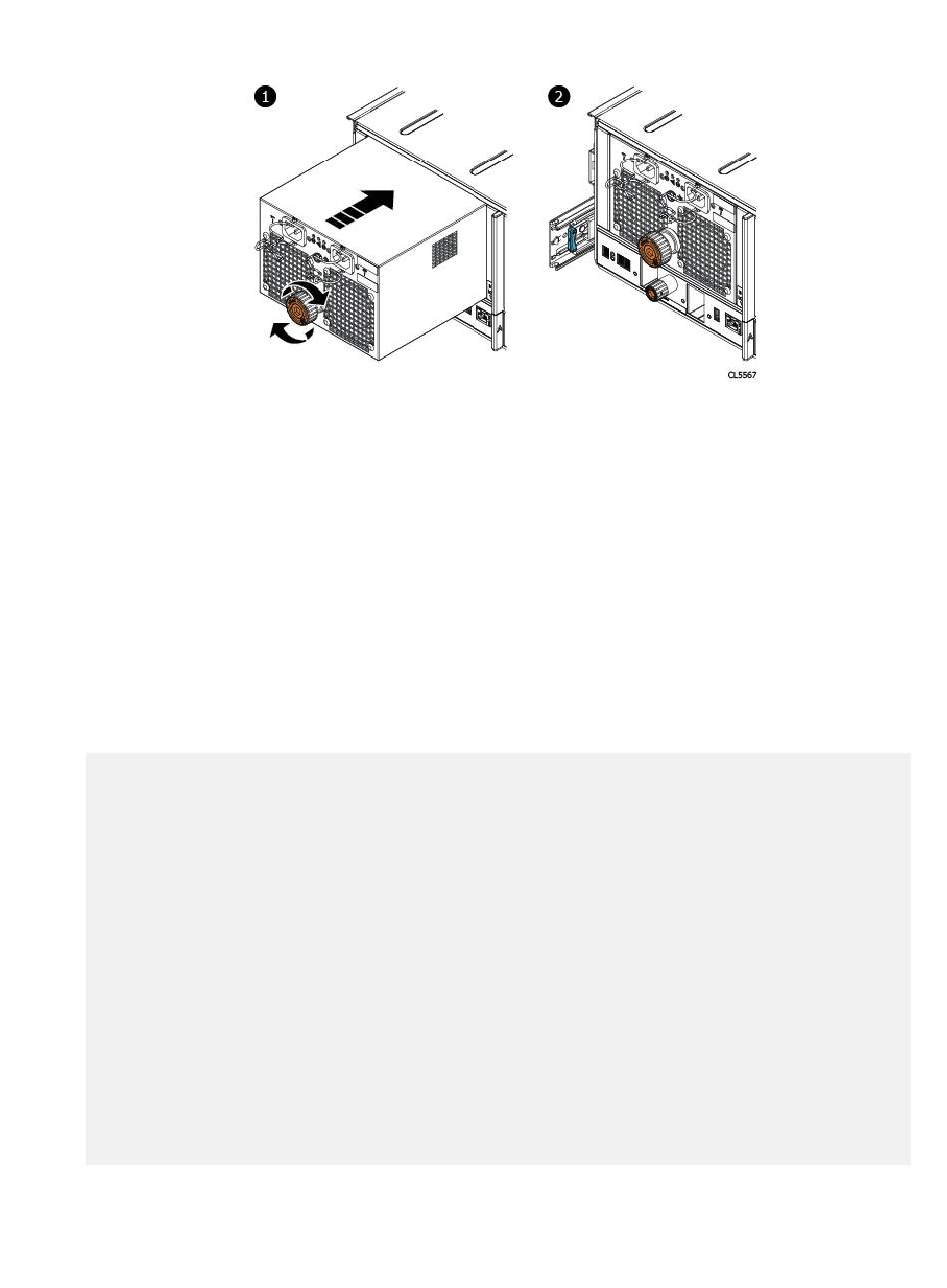

1. Refer to the previous figure. Push the PSU straight into the chassis until it is
seated into the chassis.
2. Fully seat the PSU in the chassis by turning the torque-limiting screw handle
clockwise until a single click is heard.
Turning the torque-limiting screw draws the PSU into the chassis and fully
seats it into the chassis. The single click indicates the PSU is fully seated.
3. Match the labels on the cables with the correct connectors on the PSU.
Connect the power cables to the PSU.
Procedure
1. Enter the enclosure show powersupply command to find the status of all
the power modules.
Product ID
Power Supply 071-000-555-01
Power Supply 071-000-555-01
2. Enter the enclosure show powersupply command and specify a specific
power module. The output for power supply module 11 should be similar to the
following example:
Part No. Serial No.
-------------- -------------- ------ -----
AC7E6132316539
AC7E6132316535
-------------- ------------ ------- -----
Version Status
na OK
na OK
OK
OK
OK
OK
OK
OK
OK
OK
OK
OK
OK
OK
OK
OK
OK
OK
OK
OK
