Reconfiguring the lift with Voyager kit

Adjusting the arms for a frontal lift

EMC Data Domain DS60 Expansion Shelf Installation and FRU Replacement Hardware Guide
138
If you are using the Alum-A-Lift for installations or removals above 49 inches (28U),
you must use the single (lower) mast configuration with the "Voyager" conversion kit
and support table.
NOTICE
The "Voyager conversion kit," is used with multiple systems.
Procedure
1. Unpack the Voyager kit.
2. Use the instructions to provided within the kit to reconfigure the lift.

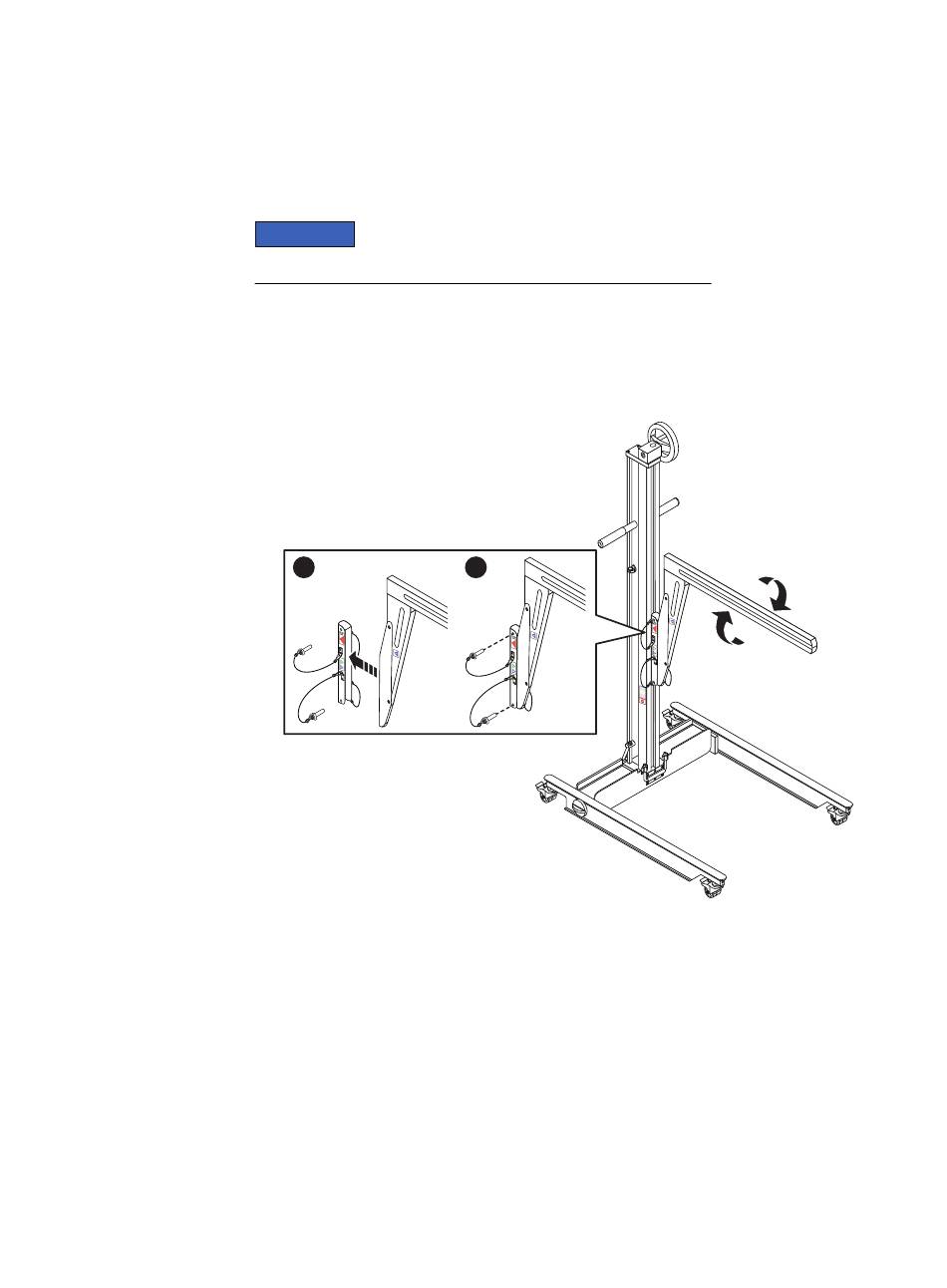

Figure 119 Reconfiguring the portable lift with the Voyager conversion kit
1
If you plan to use the mechanical lift directly in front of the cabinet, adjust the lift
arm/tray width to just under 17 inches apart to ensure that the arms will stay under
the chassis. Figure 120 on page 139 shows an example of adjusting the lift arm/tray
to just under 17 inches.
Procedure
1. Add the two arms with rollers 17 inches apart measured from the outside edge
of each arm.
2. Tighten the arms to secure them.
2
CL5422
