Measurement Examples
Temperature Controlled by Thermal Plate
5. Create a test setup for setting up the wait time and the temperature monitor.
If the thermometer of the thermal plate is used for the temperature monitor,
create a test setup using the ThermalPlate WaitTemperature application test and
save it to the preset group created in Step 1.
If the thermocouple connected to N1265A is used for the temperature monitor,
create a test setup using the N1265A WaitTemperature application test and save
it to the preset group created in Step 1.

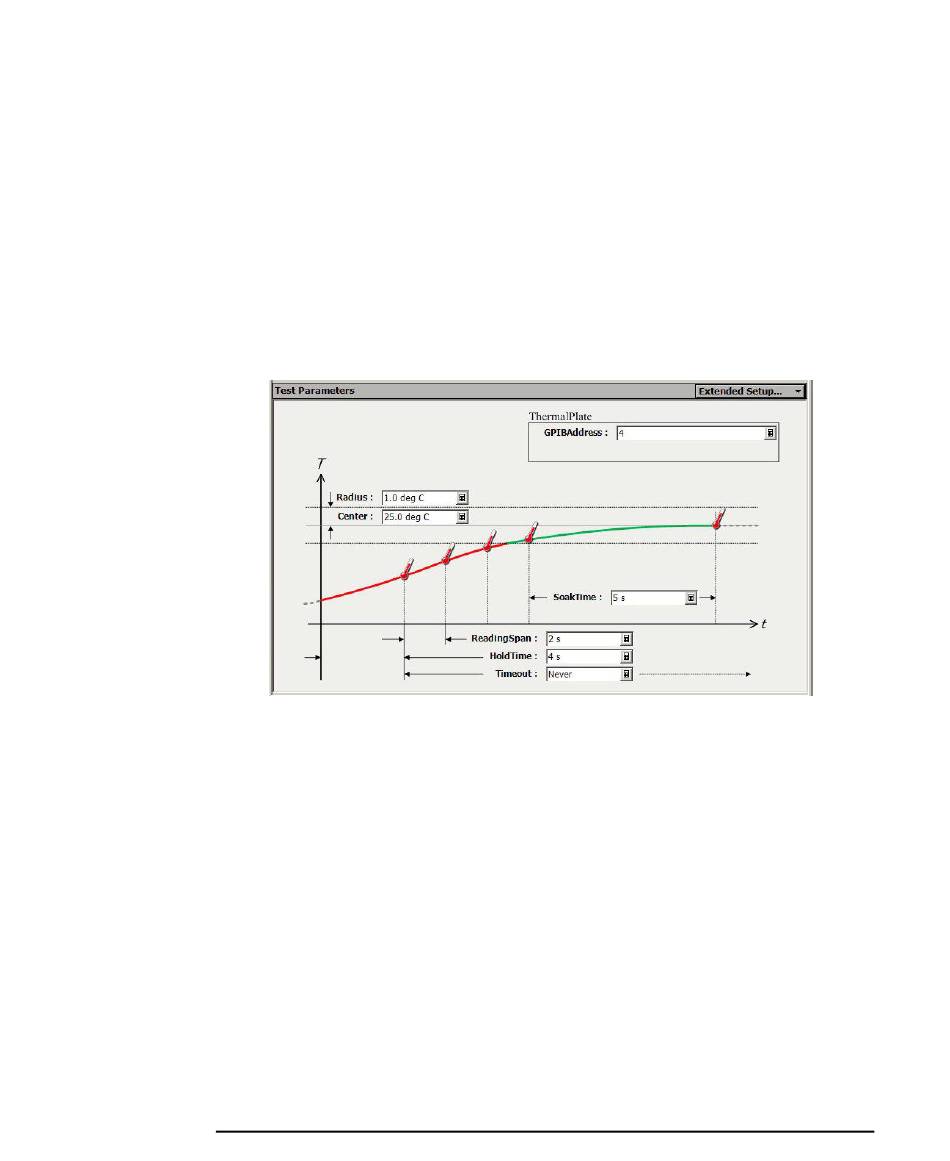

The following example sets the target temperature range to 25 °C  1 °C, the
hold time to 4 seconds, the temperature monitor interval to 2 seconds, and the
soak time to 5 seconds.
6. Create a test setup for measurement.
Create a test setup using the desired classic test or application test, and save it to
the preset group created in Step 1.
7. Repeat steps 4, 5, and 6 as much as the number of the temperature conditions.
8. Create a test setup for controlling the temperature of the thermal plate to the
ordinary temperature.
Create a test setup using the ThermalPlate ControlTemperature application test,
and save it to the preset group created in Step 1.
9. Define the test setup execution order in the quick test.
Click the Quick Test tab on the main screen. The tab is in the leftmost column on
the screen.
The Quick Test screen lists the test setups created in steps 2 to 8.
