NOTE
Preparing Temperature Control and Measurement
Setups
You can create test setups in random order. This section describes it in the order of
the test sequence.
1. Create a new preset group.
a. Click the My Favorite button on the EasyEXPERT main screen, and then
select New.... A dialog box appears.
b. Enter a name of the new preset group, and then click OK.
The new preset group name is displayed under the My Favorite button.
2. Create a test setup for initializing the thermal plate.
Create a test setup using the ThermalPlate Initialize application test, and save it
to the preset group created in Step 1.
Application tests for temperature control belong to the Thermal category.
3. Create a test setup for setting up the operation parameters of the thermal plate.
Create a test setup using the ThermalPlate DefineParameters application test,
and save it to the preset group created in Step 1.
4. Create a test setup for controlling the temperature of the thermal plate.
Create a test setup using the ThermalPlate ControlTemperature application test,
and save it to the preset group created in Step 1.

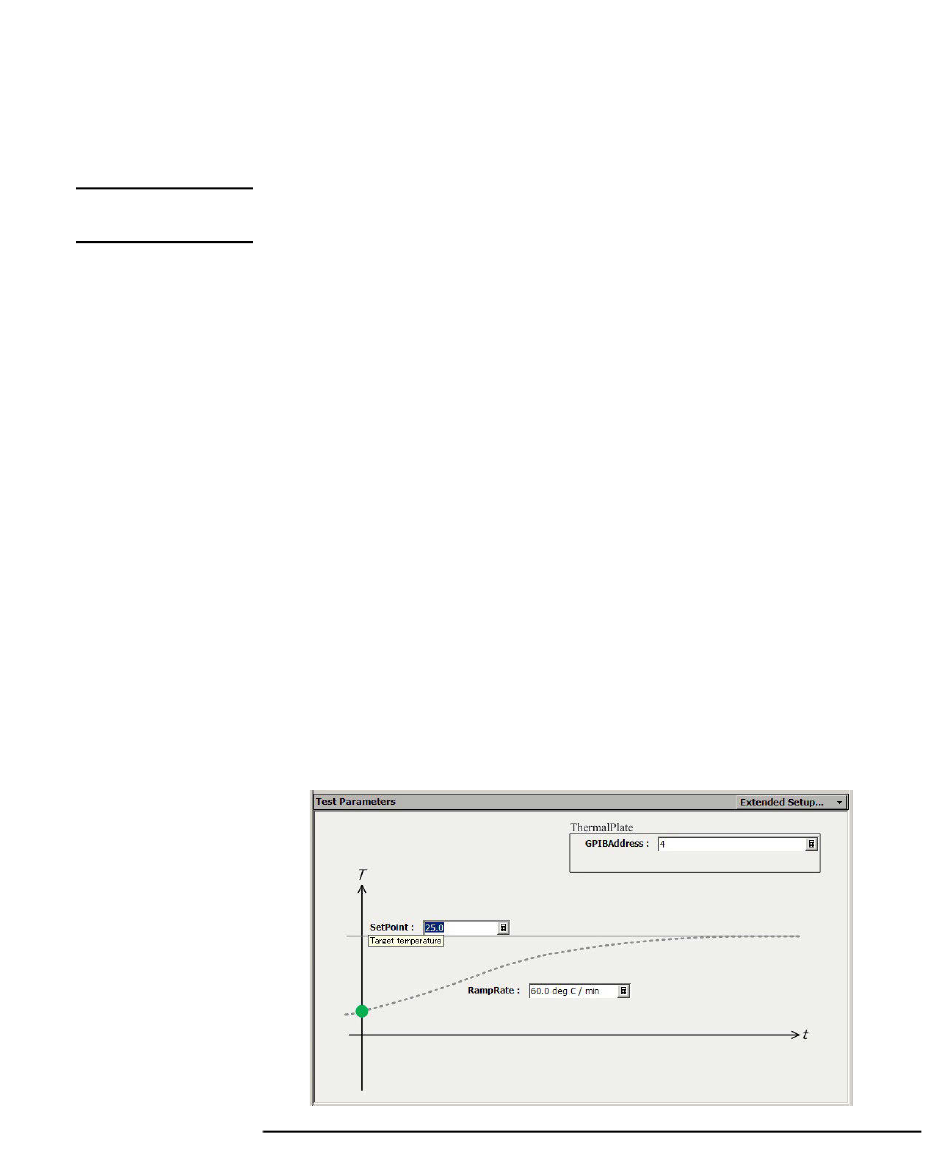

The following example sets the target temperature to 25 °C, and the temperature
slew rate to 60 °C/min.
