FC 300 Selection
4.6.4.3 Frame Size C, T7
60° AVM - Pulse Width Modulation
I out (A)
34
28.9
27.2
20.4
13.6
1 2 4

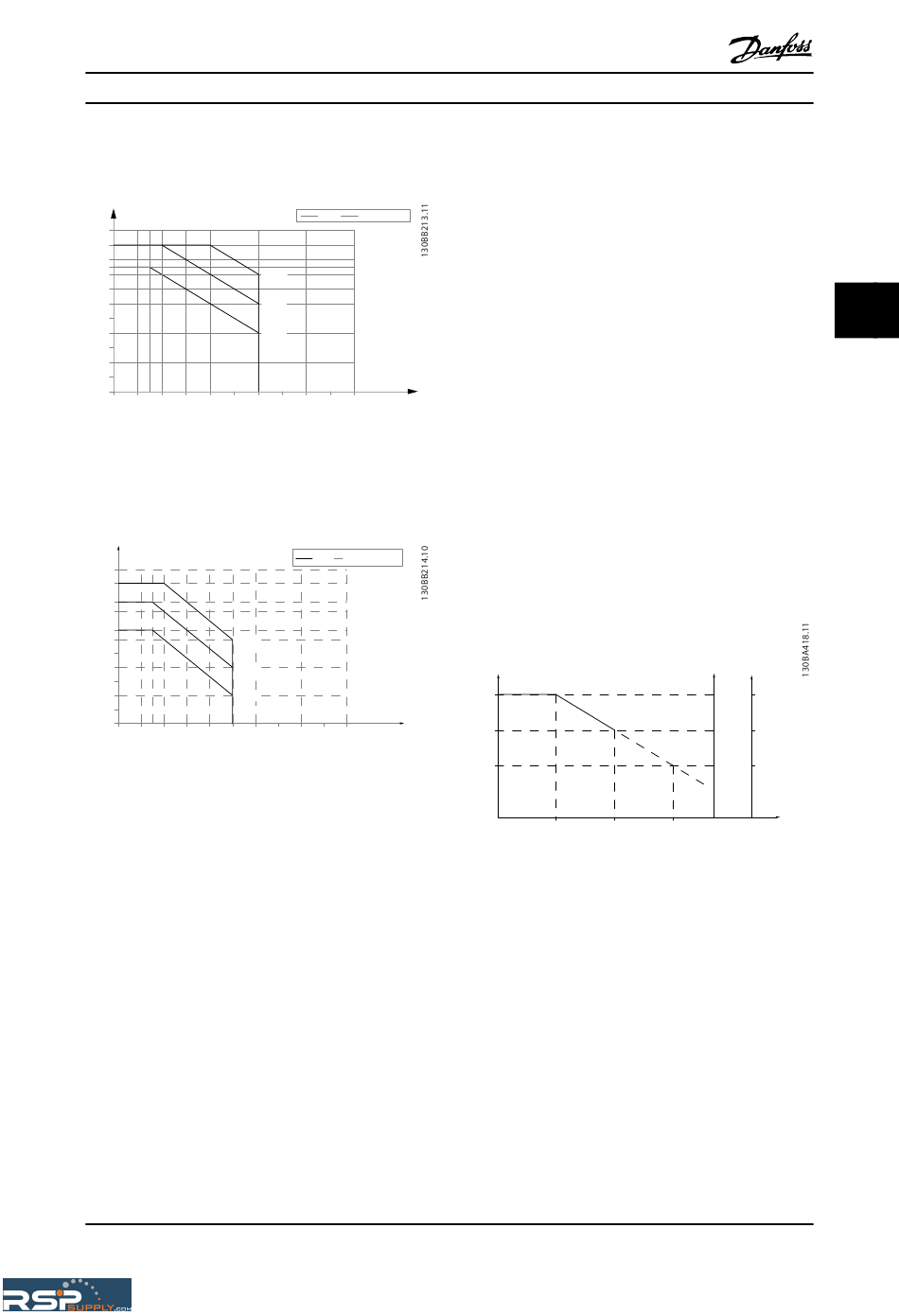

Illustration 4.33 Output current derating with switching
frequency and ambient temperature for frame size C2, 60° AVM.
Note: The graph is drawn with the current as absolute value and
is valid for both high and normal overload.
SFAVM - Stator Frequency Asyncron Vector Modulation
I (A)
out
100
86.6
80
66.6
60
45°C
40
50°C
20
55°C
1 2 4 6
Illustration 4.34 Output current derating with switching
frequency and ambient temperature for frame size C2, SFAVM.
Note: The graph is drawn with the current as absolute value and
is valid for both high and normal overload.
4.6.5 Derating for Running at Low Speed
When a motor is connected to a frequency converter, it is
necessary to check that the cooling of the motor is
adequate.
The level of heating depends on the load on the motor, as
well as the operating speed and time.
Constant torque applications (CT mode)
A problem may occur at low RPM values in constant
torque applications. In a constant torque application s a
motor may over-heat at low speeds due to less cooling air
from the motor integral fan.
Therefore, if the motor is to be run continuously at an RPM
value lower than half of the rated value, the motor must
