Electrical Installation

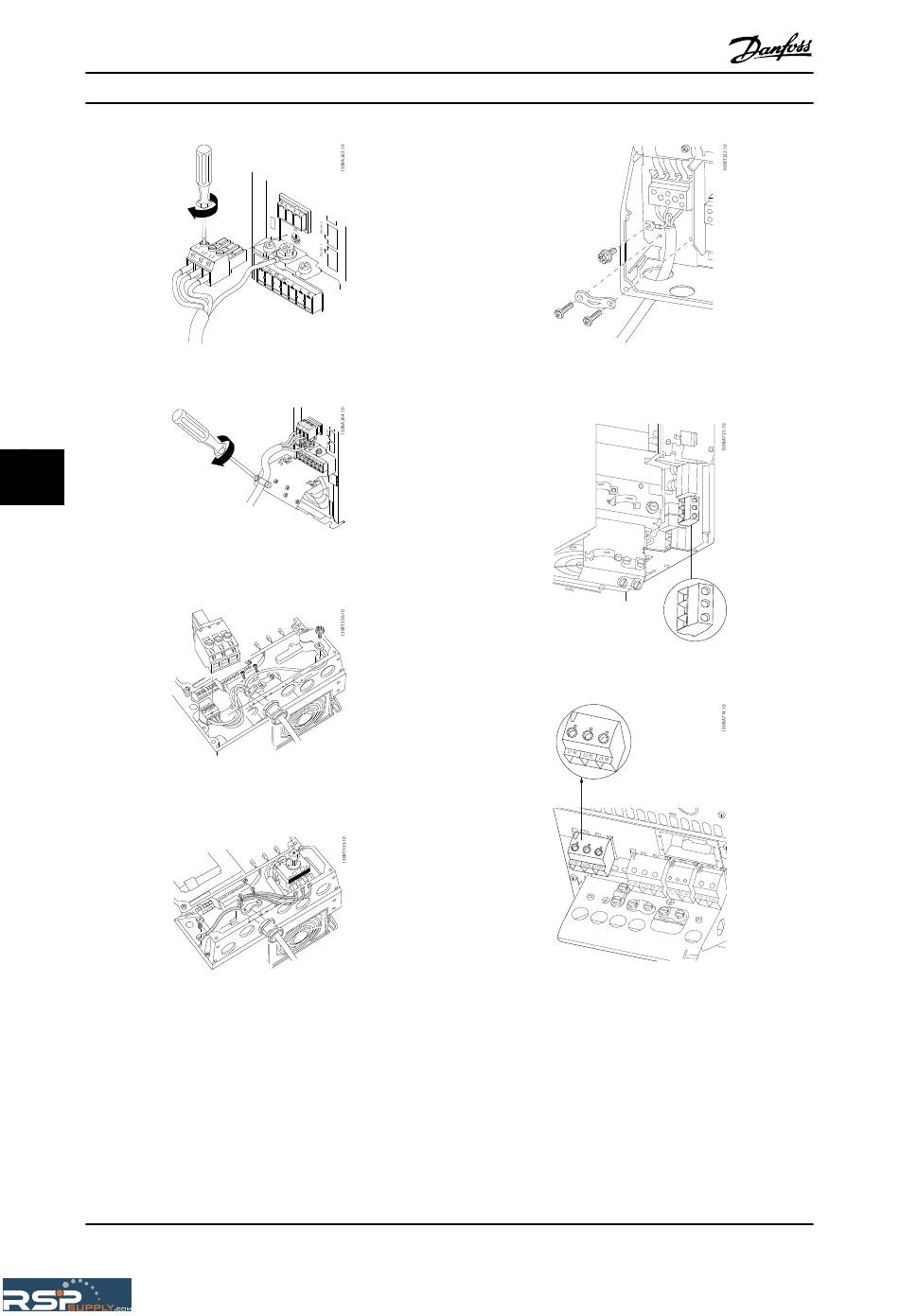

Illustration 7.4 Mounting Mains Plug and Tightening Wires
7 7
Illustration 7.5 Tighten Support Bracket
Mains connector frame size A4/A5 (IP55/66)
Illustration 7.6 Connecting to Mains and Earthing without
Disconnector
Illustration 7.7 Connecting to Mains and Earthing with Discon-
nector
When disconnector is used (frame size A4/A5) the PE must
be mounted on the left side of the frequency converter.
114
