Electrical Installation
Step 1. Locate the motor name plate
NOTE
The motor is either star- (Y) or delta- connected (Δ). This
information is located on the motor name plate data.
7 7
BAUER D-7 3734 ESLINGEN
3~ MOTOR NR. 1827421 2003
S/E005A9
n 31,5
n 1400
COS  0,80
1,7L
B

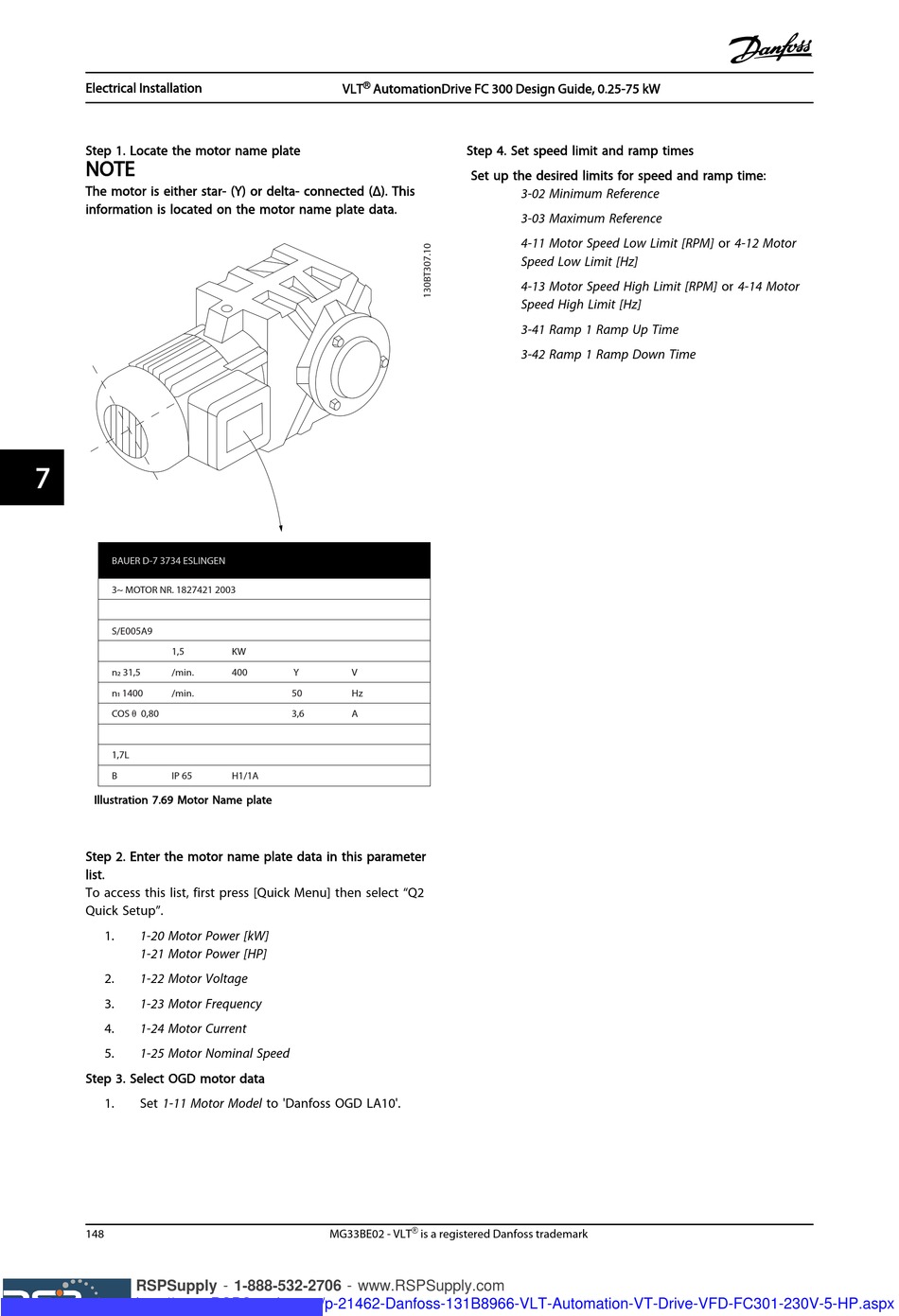

Illustration 7.69 Motor Name plate
Step 2. Enter the motor name plate data in this parameter
list.
To access this list, first press [Quick Menu] then select "Q2
Quick Setup".
1. 1-20 Motor Power [kW]
1-21 Motor Power [HP]
2. 1-22 Motor Voltage
3. 1-23 Motor Frequency
4. 1-24 Motor Current
5. 1-25 Motor Nominal Speed
Step 3. Select OGD motor data
1. Set 1-11 Motor Model to 'Danfoss OGD LA10'.
148
RSPSupply - 1-888-532-2706 - www.RSPSupply.com
http://www.RSPSupply.com/p-21462-Danfoss-131B8966-VLT-Automation-VT-Drive-VFD-FC301-230V-5-HP.aspx
1,5 KW
/min. 400 Y
/min. 50
3,6
IP 65 H1/1A
MG33BE02 - VLT
®
VLT AutomationDrive FC 300 Design Guide, 0.25-75 kW
Step 4. Set speed limit and ramp times
Set up the desired limits for speed and ramp time:
V
Hz
A
®
is a registered Danfoss trademark
3-02 Minimum Reference
3-03 Maximum Reference
4-11 Motor Speed Low Limit [RPM] or 4-12 Motor
Speed Low Limit [Hz]
4-13 Motor Speed High Limit [RPM] or 4-14 Motor
Speed High Limit [Hz]
3-41 Ramp 1 Ramp Up Time
3-42 Ramp 1 Ramp Down Time
