Danfoss VLT AutomationDrive FC 300 Design Manual page 168

Options and Accessories

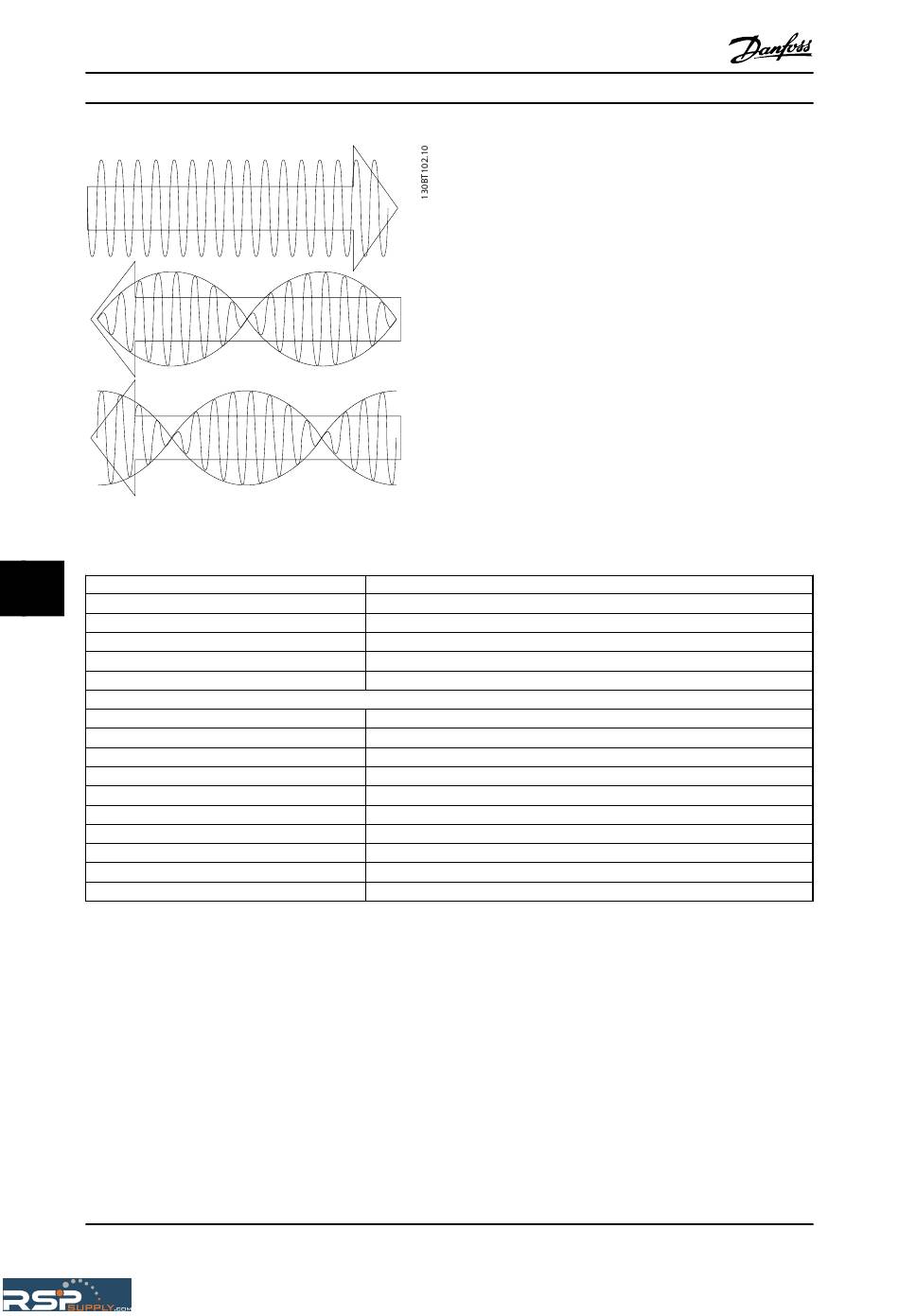

Illustration 9.16 Permanent Magnet (PM) Motor with Resolver as
Speed Feedback
9 9
1-00 Configuration Mode
1-01 Motor Control Principle
1-10 Motor Construction
1-24 Motor Current
1-25 Motor Nominal Speed
1-26 Motor Cont. Rated Torque
AMA is not possible on PM motors
1-30 Stator Resistance (Rs)
30-80 d-axis Inductance (Ld)
1-39 Motor Poles
1-40 Back EMF at 1000 RPM
1-41 Motor Angle Offset
17-50 Poles
17-51 Input Voltage
17-52 Input Frequency
17-53 Transformation Ratio
17-59 Resolver Interface
Table 9.11 Parameters to Adjust
166
RSPSupply - 1-888-532-2706 - www.RSPSupply.com
http://www.RSPSupply.com/p-21462-Danfoss-131B8966-VLT-Automation-VT-Drive-VFD-FC301-230V-5-HP.aspx
®
VLT AutomationDrive FC 300 Design Guide, 0.25-75 kW
Set-up example
In this example a Permanent Magnet (PM) Motor is used
with resolver as speed feedback. A PM motor must usually
operate in flux mode.
Wiring
The max cable length is 150 m when a twisted pair type of
cable is used.
NOTE
Resolver cables must be screened and separated from the
motor cables.
NOTE
The screen of the resolver cable must be correctly
connected to the de-coupling plate and connected to
chassis (earth) on the motor side.
NOTE
Always use screened motor cables and brake chopper
cables.
[1] Speed closed loop
[3] Flux with feedback
[1] PM, non salient SPM
Nameplate
Nameplate
Nameplate
Motor data sheet
Motor data sheet (mH)
Motor data sheet
Motor data sheet
Motor data sheet (Usually zero)
Resolver data sheet
Resolver data sheet
Resolver data sheet
Resolver data sheet
[1] Enabled
®
MG33BE02 - VLT is a registered Danfoss trademark
