Options and Accessories
MCO 305 Control Terminals
For frame sizes A2 and A3, encoder and I/O terminal are
located behind the C option terminal cover, see
Illustration 9.8. MCO CAN bus terminals and debug
terminals (RS-485) are located on the top of the c-option
cover. If these connections are used cut out the plastic
parts above the connectors and mount the cable relief.
9 9

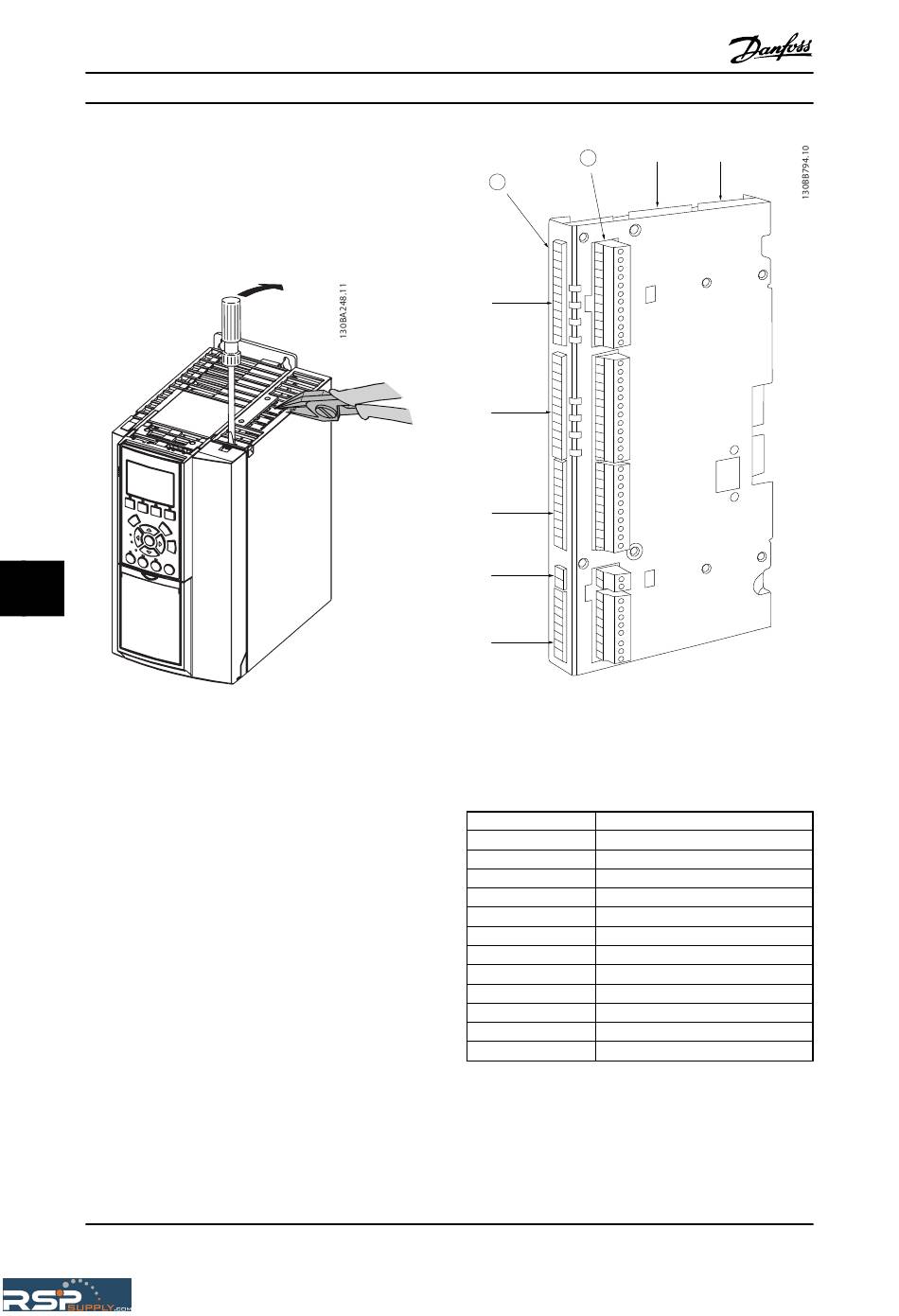

Illustration 9.8 Location of Encoder and I/O Terminals
For frame sizes A5, B1 and B2 all MCO 305 terminals are
located next to the VLT
Remove the front cover to get access.
MCO control terminals are plug connectors with screw
terminals. Terminals X55, X56, X57, X58 and X59 are
duplicated to be used for both bookstyle and compact
frame size.
X55 = Encoder 2
X56 = Encoder 1
X57 = Digital inputs
X58 = 24 V DC supply
X59 = Digital outputs
X62 = MCO CAN Bus
X60 = Debug connections (RS-485)
