Danfoss VLT AutomationDrive FC 300 Design Manual page 177

Options and Accessories
Height A
Frame size type
[mm]
A2 372
A3 372
B3 475
B4 670
C3 755
C4 950
Table 9.17 Dimensions
* If option A/B is used, the depth will increase (see 6.1.2 Mechanical
Dimensions for details)
A
B
C
D
E

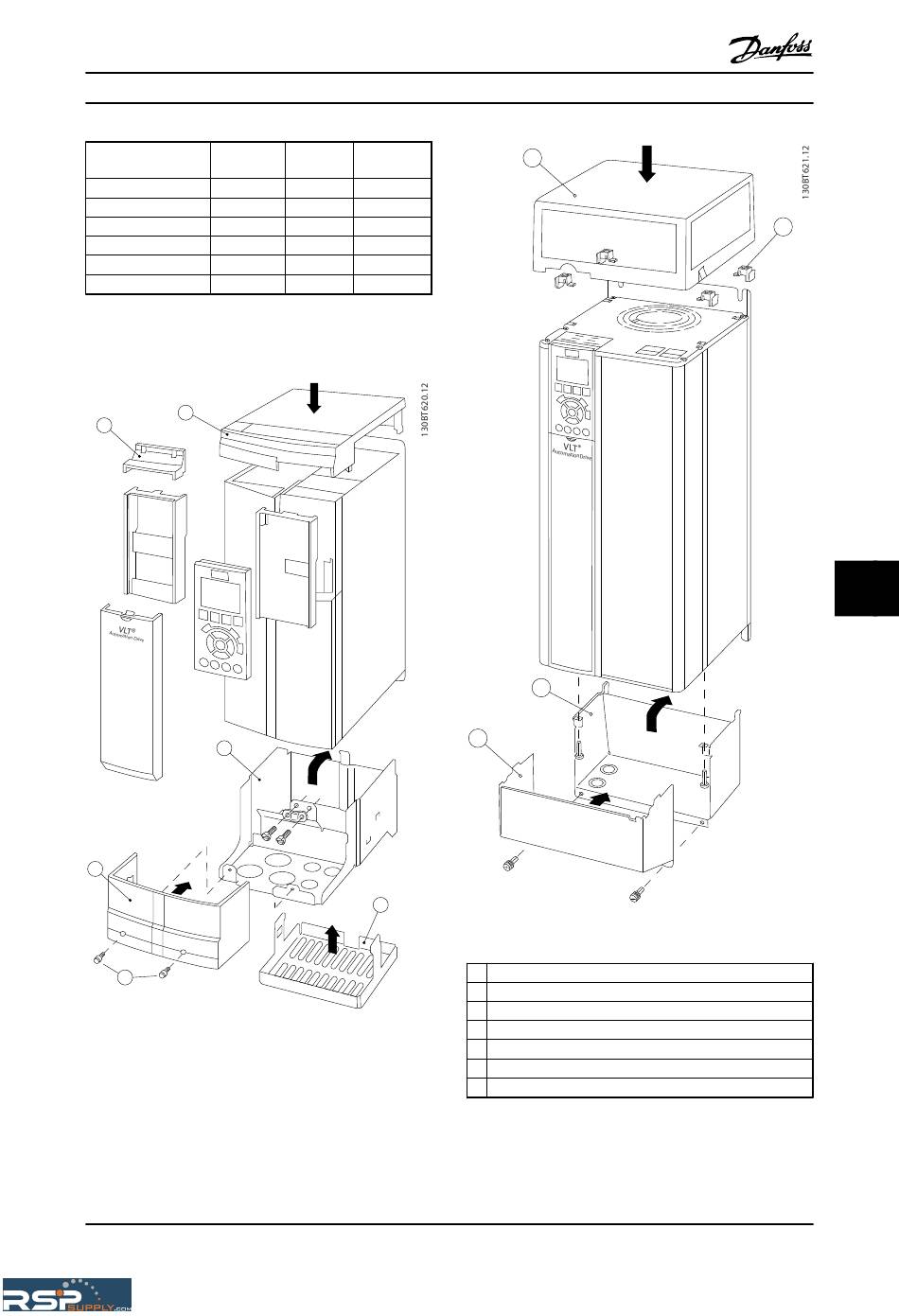

Illustration 9.33 B3 Enclosure
RSPSupply - 1-888-532-2706 - www.RSPSupply.com
http://www.RSPSupply.com/p-21462-Danfoss-131B8966-VLT-Automation-VT-Drive-VFD-FC301-230V-5-HP.aspx
®
VLT AutomationDrive FC 300 Design Guide, 0.25-75 kW
Width B Depth C*
[mm] [mm]
90 205
130 205
165 249
255 246
329 337
391 337
F
®
MG33BE02 - VLT is a registered Danfoss trademark
A
C
D
Illustration 9.34 B4 - C3 - C4 Enclosure
A Top cover
B Brim
C Base part
D Base cover
E Screw(s)
F Fan cover
G Top clip
Table 9.18 Legend to Illustration 9.33 and Illustration 9.33
G
9 9
175
