Electrical Installation
7
7

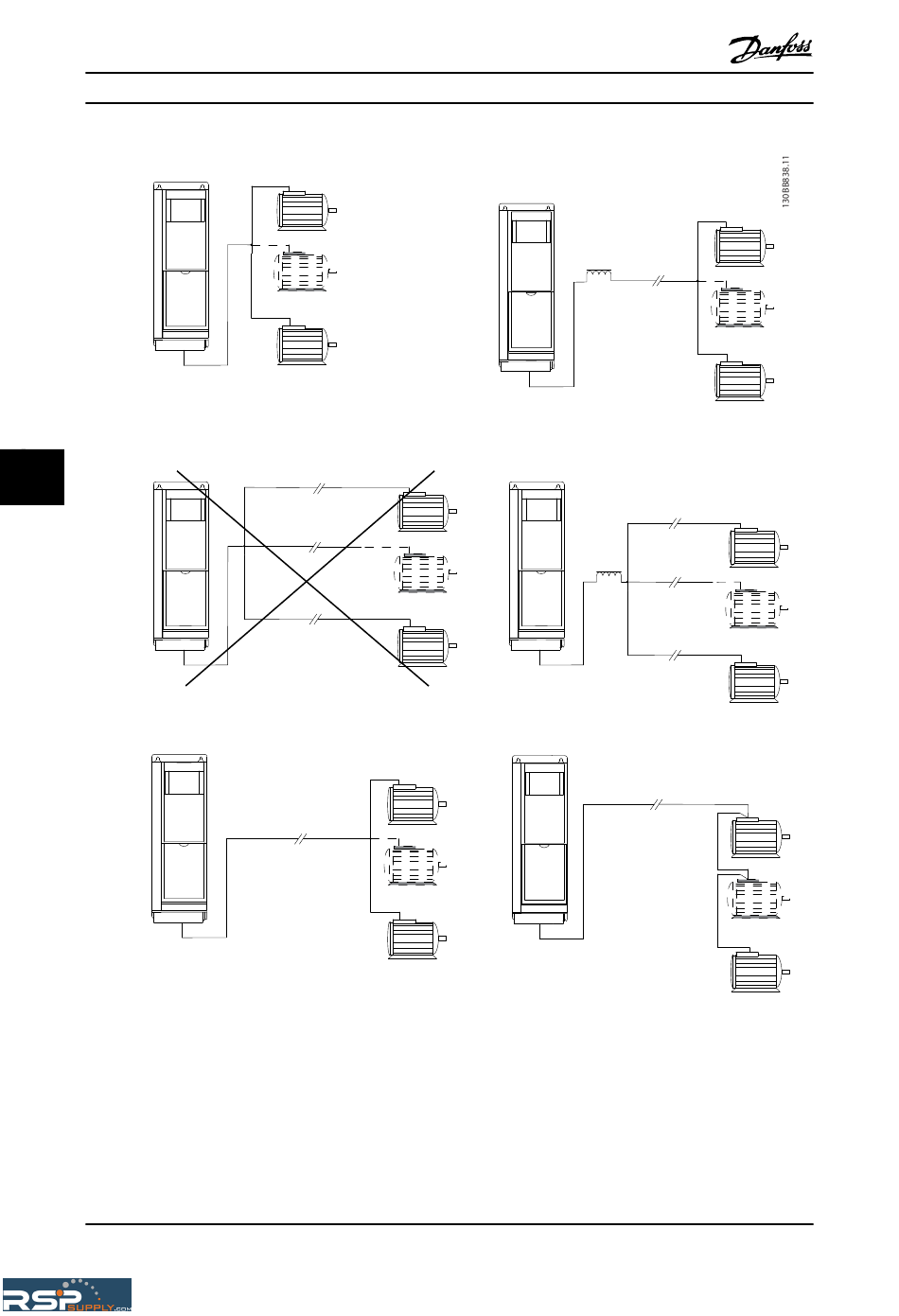

Illustration 7.42 Parallel Motor Connection
c, d) The total motor cable length specified in section 4.5, General Specifications, is valid as long as the parallel cables are
kept short (less than 10 m each).
d, e) Consider voltage drop across the motor cables.
e) Be aware of the maximum motor cable length specified in Table 7.35.
e) Use LC filter for long parallel cables.
