Introduction
Quadrant 2
Resource output
(RPM)
1500
Low reference/feedback
P1
value
High reference/feedback
P2 0
value
-10
-6
-1
1
Terminal X
Terminal X
low
high
-1500
Quadrant 3

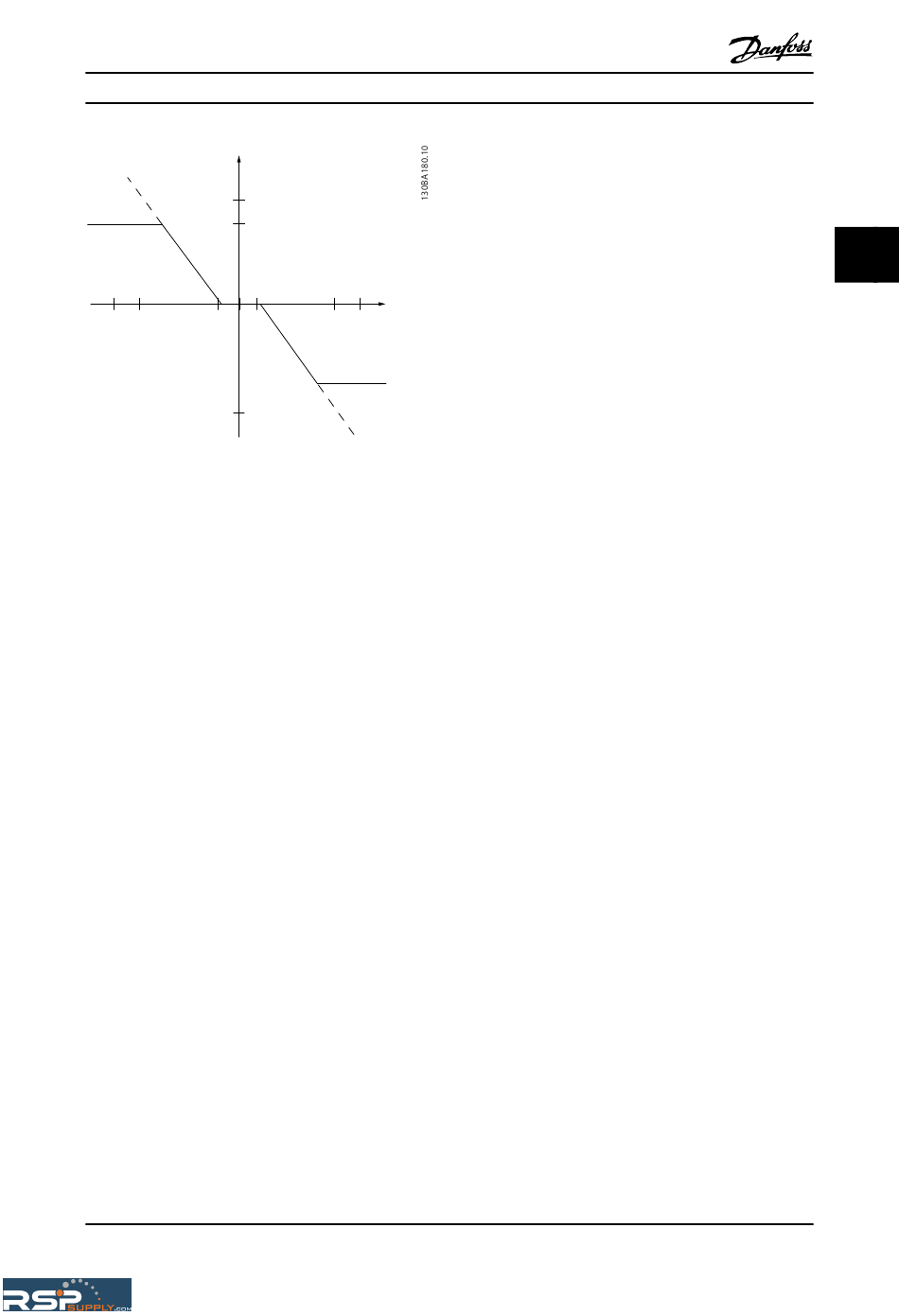

Illustration 3.16 Reverse Dead Band
Thus a reference endpoint of P1 = (0 V, 0 RPM) will not
result in any dead band, but a reference endpoint of e.g.
P1 = (1 V, 0 RPM) will result in a -1 V to +1 V dead band in
this case provided that the end point P2 is placed in either
Quadrant 1 or Quadrant 4.
