Introduction
This method is known as the Ziegler Nichols tuning
method.
NOTE
The method described must not be used on applications
that could be damaged by the oscillations created by
marginally stable control settings.
The criteria for adjusting the parameters are based on
evaluating the system at the limit of stability rather than
on taking a step response. We increase the proportional
gain until we observe continuous oscillations (as measured
on the feedback), that is, until the system becomes
marginally stable. The corresponding gain (K
ultimate gain. The period of the oscillation (P
ultimate period) is determined as shown in Illustration 3.22.
y(t)
P u

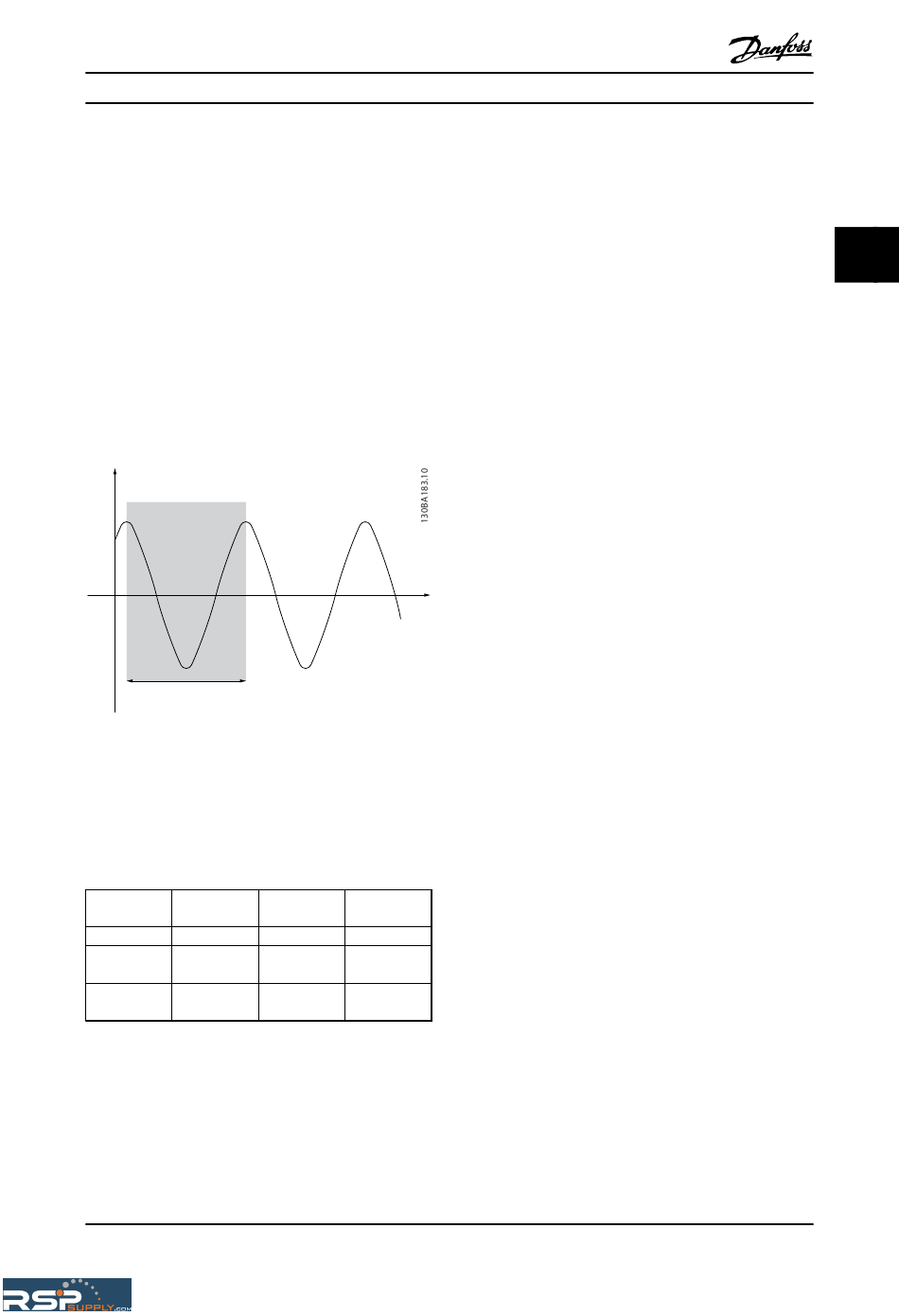

Illustration 3.22 Marginally Stable System
P should be measured when the amplitude of oscillation
u
is quite small. Then we "back off" from this gain again, as
shown in Table 3.10.
K is the gain at which the oscillation is obtained.
u
Type of Proportional
Control Gain
PI-control 0.45 * K
u
PID tight 0.6 * K
u
control
PID some 0.33 * K
u
overshoot
Table 3.10 Ziegler Nichols Tuning for Regulator, Based on a
Stability Boundary
Experience has shown that the control setting according to
Ziegler Nichols rule provides a good closed loop response
for many systems. The process operator can do the final
tuning of the control iteratively to yield satisfactory
control.
