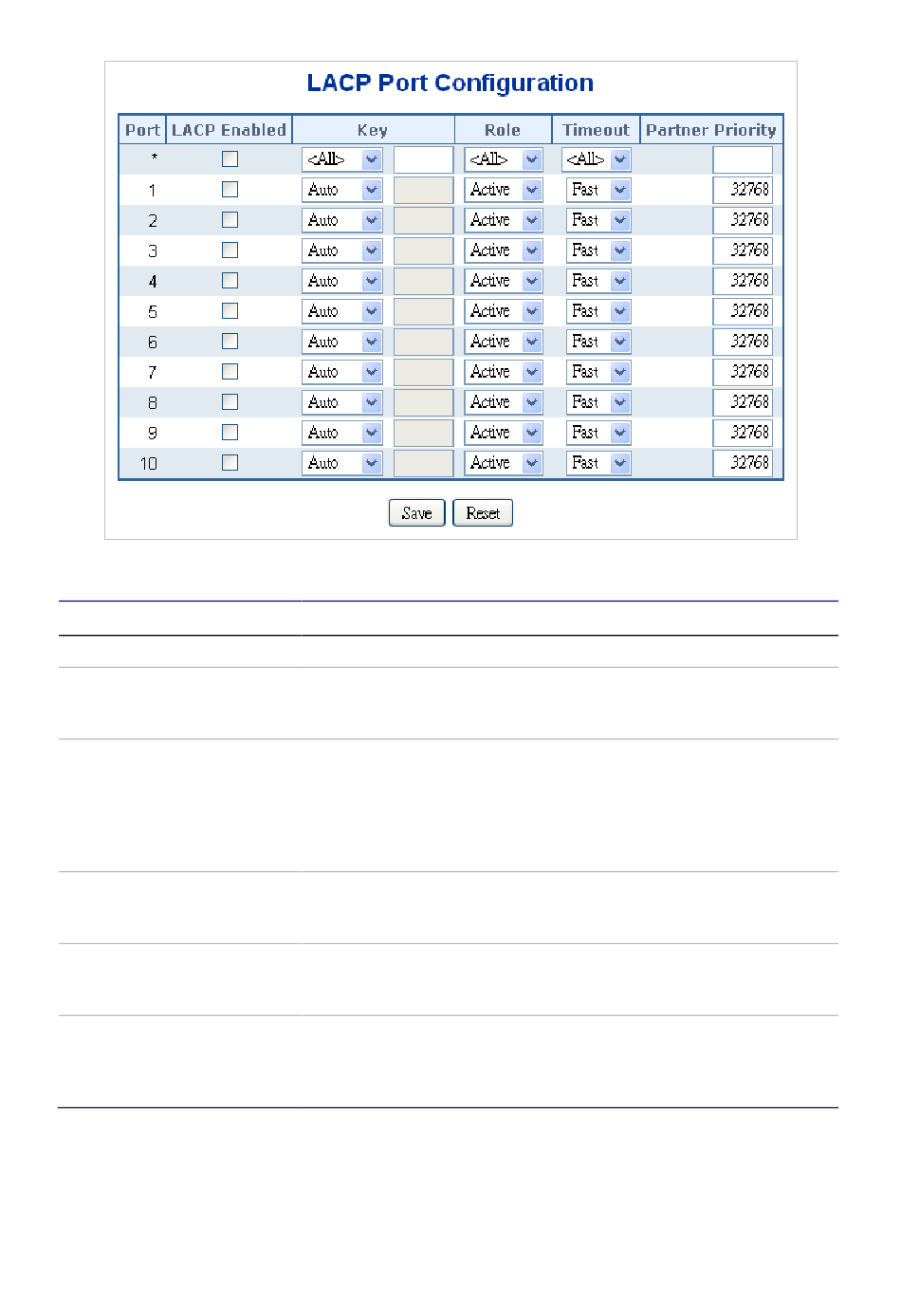

The page includes the following fields:
Object
Port
LACP Enabled
Key
Role
Timeout
Partner Priority
Buttons
• Click Save to save changes.
• Click Reset to undo any changes made locally and revert to previously saved
values.
NS3550-8T-2S Industrial Managed Switch User Manual
Description
The switch port number.
Controls whether or not LACP is enabled on this switch port. LACP
will form an aggregation when two or more ports are connected to the
same partner.
The Key value incurred by the port, range 1-65535. Selecting
(default setting) sets the key as appropriate by the physical link
speed: 10Mb = 1, 100Mb = 2, 1Gb = 3. Using the
user-defined value can be entered. Ports with the same key value
can participate in the same aggregation group, while ports with
different keys cannot.
The Role shows the LACP activity status. The
transmits LACP packets each second, while the
waits for a LACP packet from a partner (speak if spoken to).
The Timeout controls the period between BPDU transmissions.
transmits LACP packets each second, while the
provides a wait for 30 seconds before sending a LACP packet.
The Priority controls the priority of the port. If the LACP partner wants
to form a larger group than is supported by this device, then this
parameter controls which ports will be active and which ports will be
in a backup role. Lower number means greater priority.
Chapter 4: Web management
Auto
Specific setting, a
Active selection
Passive setting
Fast
Slow selection
81
