Chapter 4: Web management

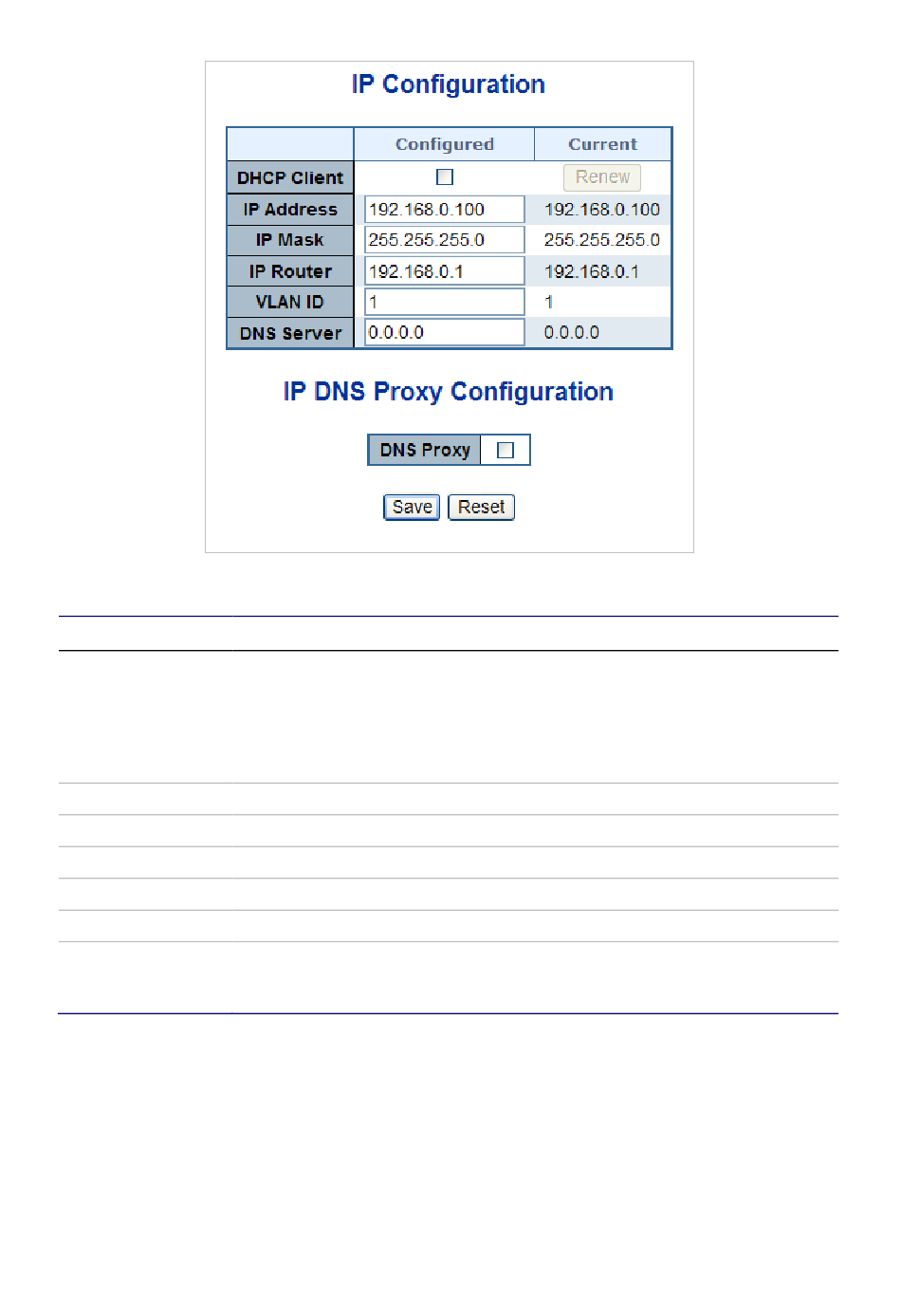

The current column is used to show the active IP configuration.
Object
DHCP Client
IP Address
IP Mask
IP Router
VLAN ID
DNS Server
DNS Proxy
Buttons
• Click Save to save changes.
• Click Reset to undo any changes made locally and revert to previously saved
values.
• Click Renew to renew the DHCP Client. This button is only available if DHCP Client
is enabled.
36
Description
Select this check box to enable the DHCP client. If DHCP fails and the
configured IP address is zero, DHCP will retry. If the DHCP server does not
respond in approximately 35 seconds and the configured IP address is non-
zero, DHCP stops and the configured IP settings will be used. The DHCP
client will announce the configured System Name as host name to provide
DNS lookup.
Provide the IP address of this switch in dotted decimal notation.
Provide the IP mask of this switch dotted decimal notation.
Provide the IP address of the router in dotted decimal notation.
Provide the managed VLAN ID. The allowed range is 1 through 4095.
Provide the IP address of the DNS Server in dotted decimal notation.
When DNS proxy is enabled, DUT will relay DNS requests to the current
configured DNS server on DUT, and reply as a DNS resolver to the client
device on the network.
