Chapter 4: Web management
Buttons
• Click Save to save changes.
• Click Reset to undo any changes made locally and revert to previously saved
values.
• Click Cancel to undo any changes made locally and return to the previous page.
Port classification

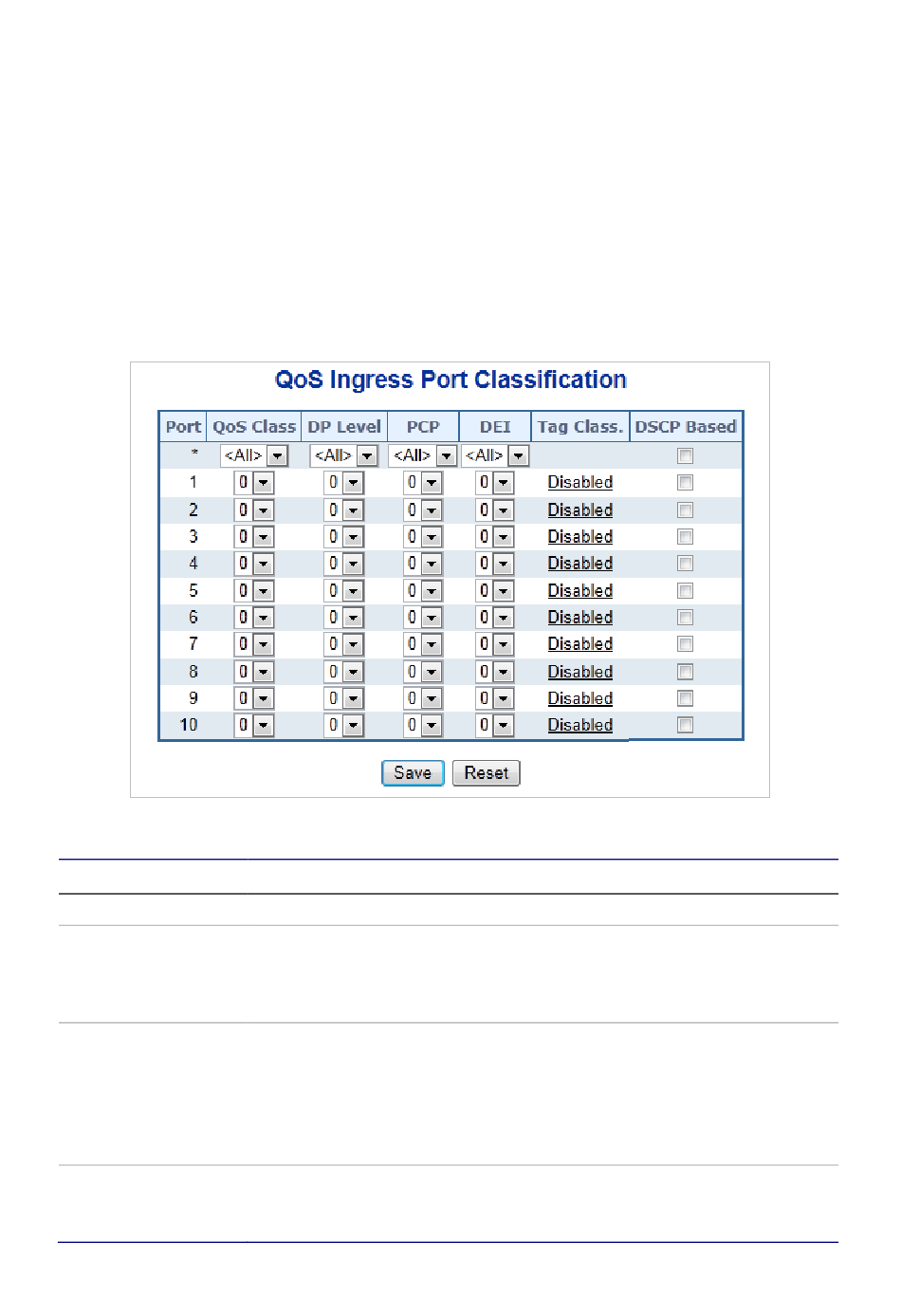

The QoS Ingress Port Classification page permits configuration of the basic QoS
ingress classification settings for all switch ports.
The page includes the following fields:
Object
Port
QoS Class
DP Level
PCP
156
Description
The port number for which the configuration below applies.
Controls the default class of service.
All frames are classified to a QoS. There is a one to one mapping between
CoS, queue, and priority. A QoS class of 0 (zero) has the lowest priority.
means all ports will have one specific setting.
Controls the default drop precedence level.
All frames are classified to a drop precedence level.
If the port is VLAN-aware and the frame is tagged, then the frame is
classified to a DPL that is equal to the DEI value in the tag. Otherwise the
frame is classified to the default DPL. The classified DPL can be overruled
by a QCL entry. All means all ports will have one specific setting.
Controls the default PCP value.
All frames are classified to a PCP value.
If the port is VLAN-aware and the frame is tagged, then the frame is
