Setup steps
1. Create a VLAN group.
Set VLAN Group 1 = Default-VLAN with VID (VLAN ID) =1
Add two VLANs – VLAN 2 and VLAN 3
VLAN Group 2 with VID=2
VLAN Group 3 with VID=3
2. Assign VLAN members:
VLAN 2: Port-1, Port-2, and Port-3
VLAN 3: Port-4, Port-5, and Port-6
VLAN 1: All other ports – Port-7~Port-24

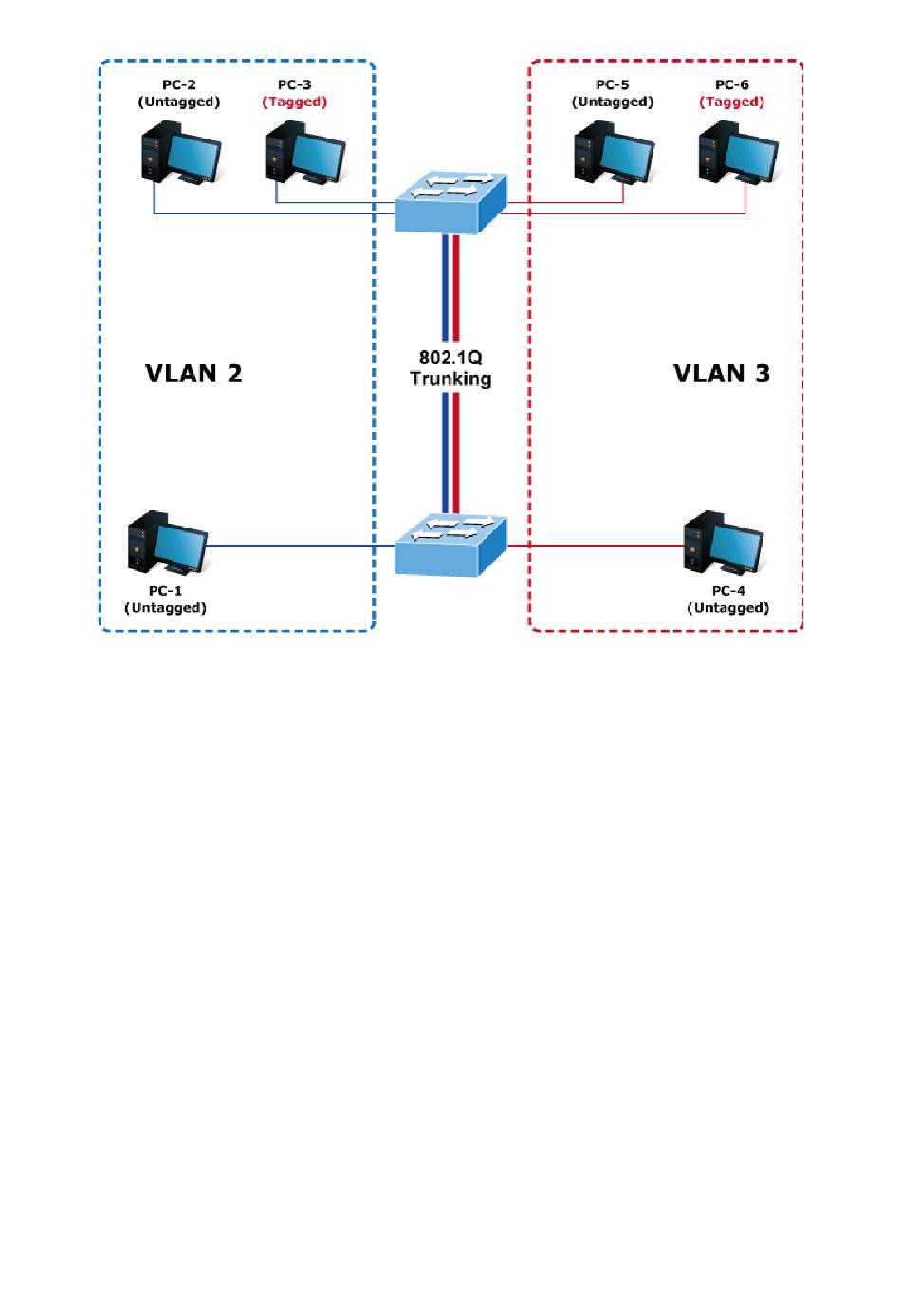

The following steps focus on the VLAN trunk port configuration.
1. Specify Port-8 to be the 802.1Q VLAN Trunk port.
2. Assign Port-8 to both VLAN 2 and VLAN 3 on the VLAN Member configuration
page.
3. Define a VLAN 1 as a "Public Area" that overlaps with both VLAN 2 members and
VLAN 3 members.
4. Assign the VLAN Trunk Port to being the member of each VLAN to be aggregated.
For example, assign Port-8 to be VLAN 2 and VLAN 3 member ports.
