Chapter 4: Web management
Header tags:
Section tags:
Module tags:
Group tags:
Parameter tags:
Configuration parameters are represented as attribute values. When saving the
configuration from the switch, the entire configuration including syntax descriptions is
included in the file. The file may then be modified using an editor and loaded to an
industrial managed switch.
The examples below show a small configuration file only including configuration of the
MAC address age time and the learning mode per port. When loading this file, only the
included parameters will be changed. This means that the age time will be set to 200
and the learn mode will be set to automatic.
Save configuration

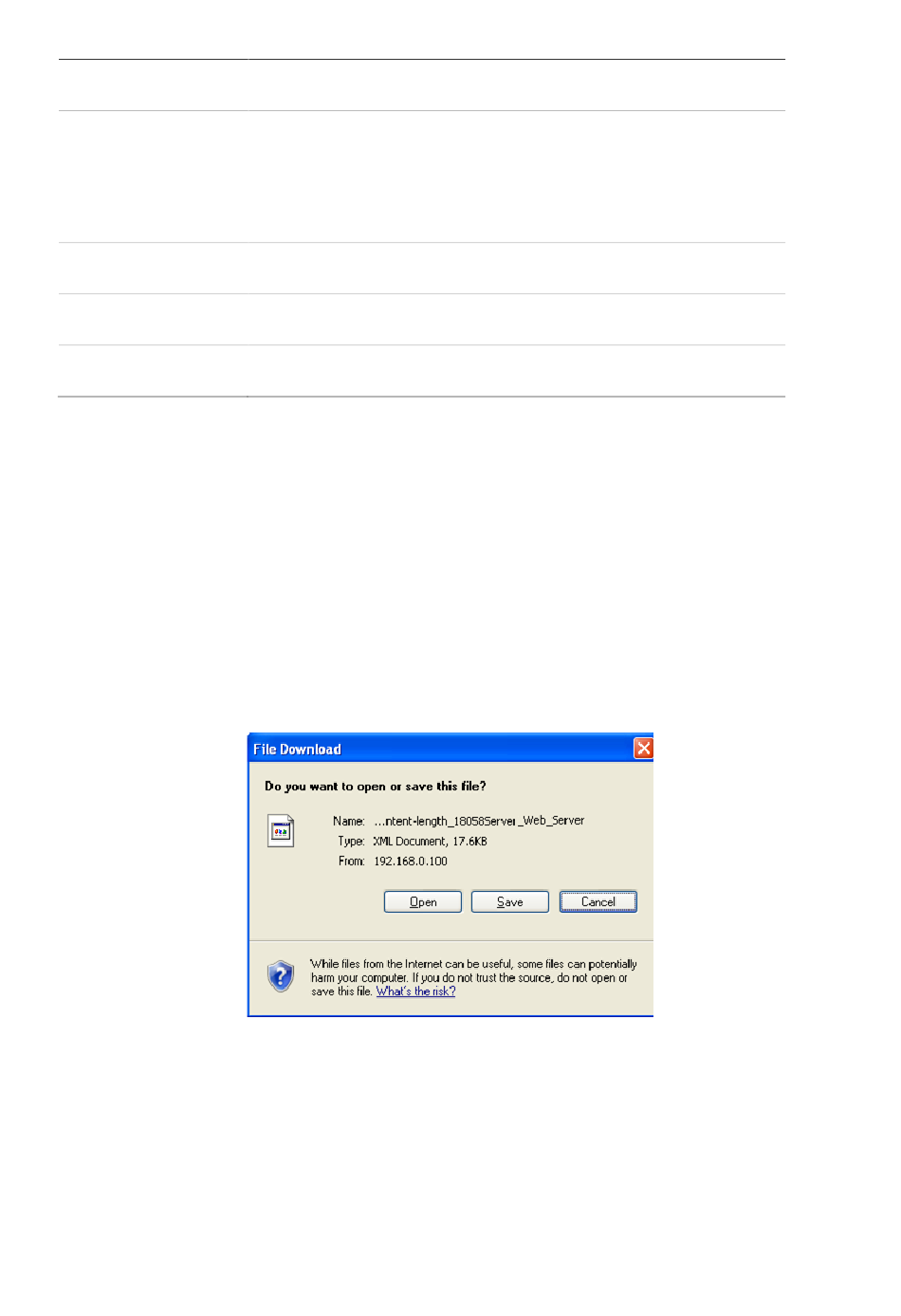

1. Click Save configuration. The following screen appears:
2. Select the path to save the file in the management workstation.
56
<?xml version="1.0"?> and <configuration>. These tags are mandatory
and must be present at the beginning of the file.
<platform>, <global> and <switch>. The platform section must be the
first section tag and this section must include the correct platform ID
and version. The global section is optional and includes configuration
which is not related to specific switch ports. The switch section is
optional and includes configuration which is related to specific switch
ports.
<ip>, <mac>, <port> etc. These tags identify a module controlling
specific parts of the configuration.
<port_table>, <vlan_table> etc. These tags identify a group of
parameters, typically a table.
<mode>, <entry> etc. These tags identify parameters for the specific
section, module and group. The <entry> tag is used for table entries.
