Chapter 4: Web management
The page includes the following fields:
Object
Port
Q0 ~ Q7
Rx/Tx
Buttons
Click
Refresh
to refresh the page.
Click
Clear
to clear the counters for all ports.
Select the
Auto-refresh
refresh occurs every three seconds.

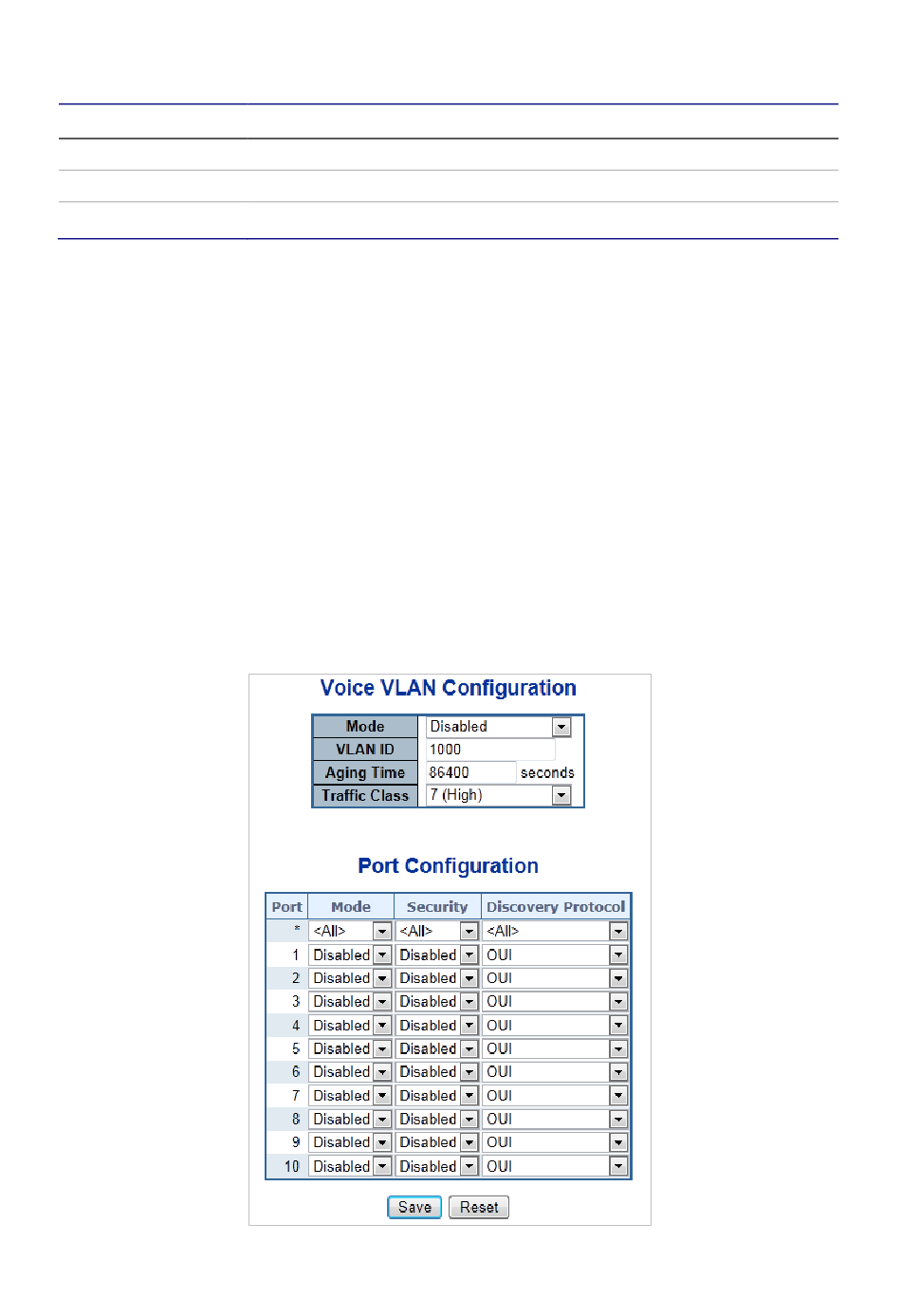

Voice VLAN configuration
The Voice VLAN Configuration page contains the Voice VLAN feature. This enables
voice traffic forwarding on the Voice VLAN, permitting the switch to classify and
schedule network traffic. We recommended that there be two VLANs on a port – one
for voice and one for data.
Before connecting the IP device to the switch, the IP phone should configure the voice
VLAN ID correctly. It should be configured through its own GUI.
172
Description
The logical port for the settings contained in the same row.
There are eight QoS queues per port. Q0 is the lowest priority queue.
The number of received and transmitted packets per queue.
check box to refresh the page automatically. Automatic
