Description of parameters

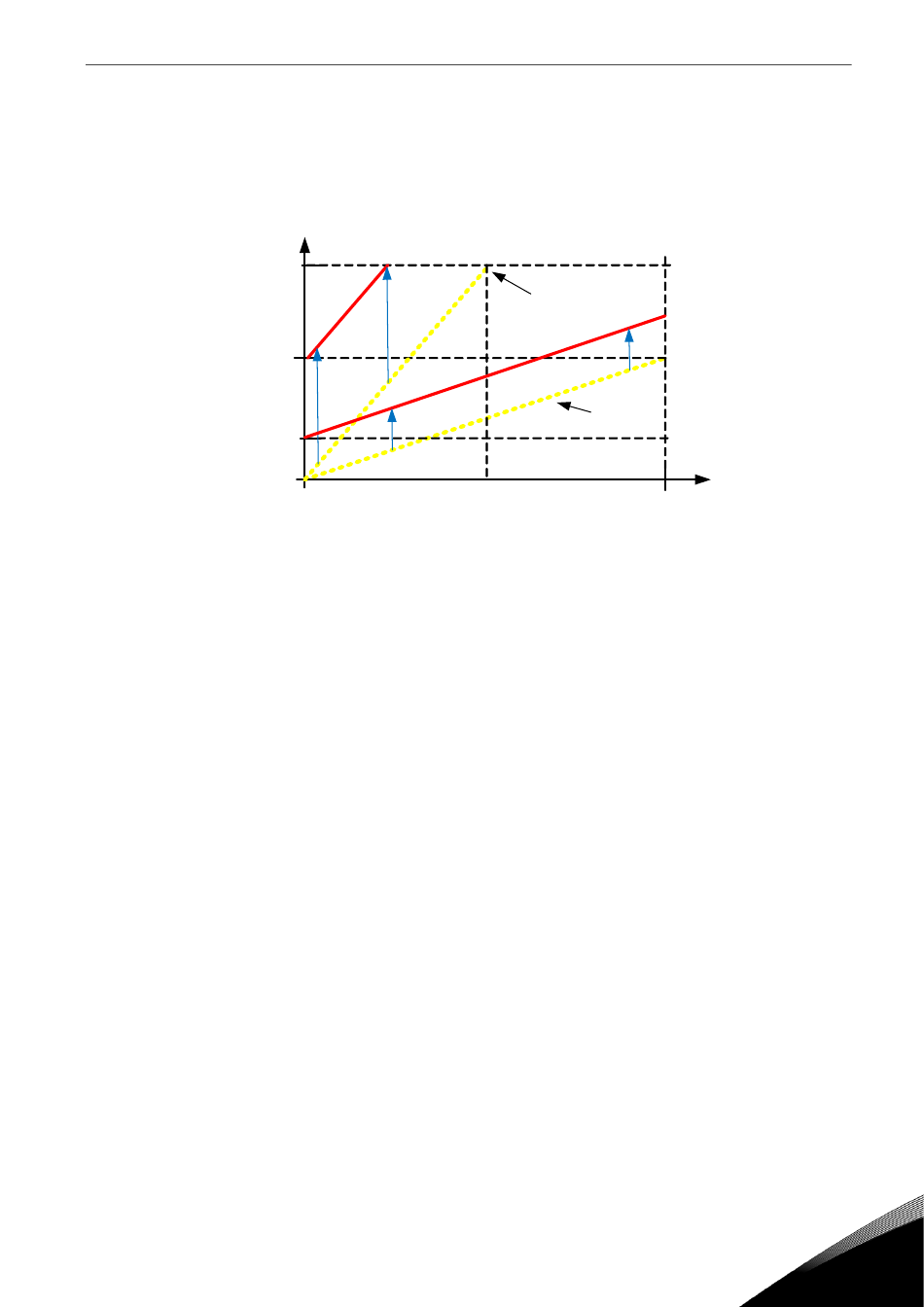

2.5.4.7 Iout 1 Offset
2.5.5.7 Iout 2 Offset
2.5.6.7 Iout 3 Offset
Add –100.0 to 100.0% to the analogue output.
100 %
Analogue
Output
50 %
20 %
0 %
5.5.4

Options

P2.5.7.1 Output Inversion
With this parameter it is possible to select which output signals are inverted.
B00 = +1 = Inver Common Alarm
B01 = +2 = Invert Common Warning
B02 = +4 = Invert delayed output 1
B03 = +8 = Invert delayed output 2
P2.5.7.2 Freq Scale Min AO
This parameter is used to scale the analogue output function 12 / FreqOut, bidirectional.
This parameter defines the frequency where the analogue output is at the minimum. For
example, when it is set to 45.00 Hz, the analogue output is 0 V, 0 mA, or 4 mA depending
on signal selections.
P2.5.7.3 Freq Scale Max AO
This parameter is used to scale the analogue output function 12 / FreqOut, bidirectional.
This parameter defines the frequency where the analogue output is at the maximum. For
example, when it is set to 55.00 Hz, the analogue output is 10 V or 20 mA depending on
signal selections.
24-hour support: +358 (0)201 212 575 • Email: vacon@vacon.com
0 %
Figure 29.
ID1806
ID1807
ID1808
Scaling
200 %
Scaling
50 %
50 %
Function
100 %
Signal
