Description of parameters
P2.14.1.6 Control Output Signal ID
This parameter defines which parameter is forced to On and Off values when selected
input signal exceeds the set limits.
P2.14.1.7 Control Mode
This parameter defines how the value control output behaves.

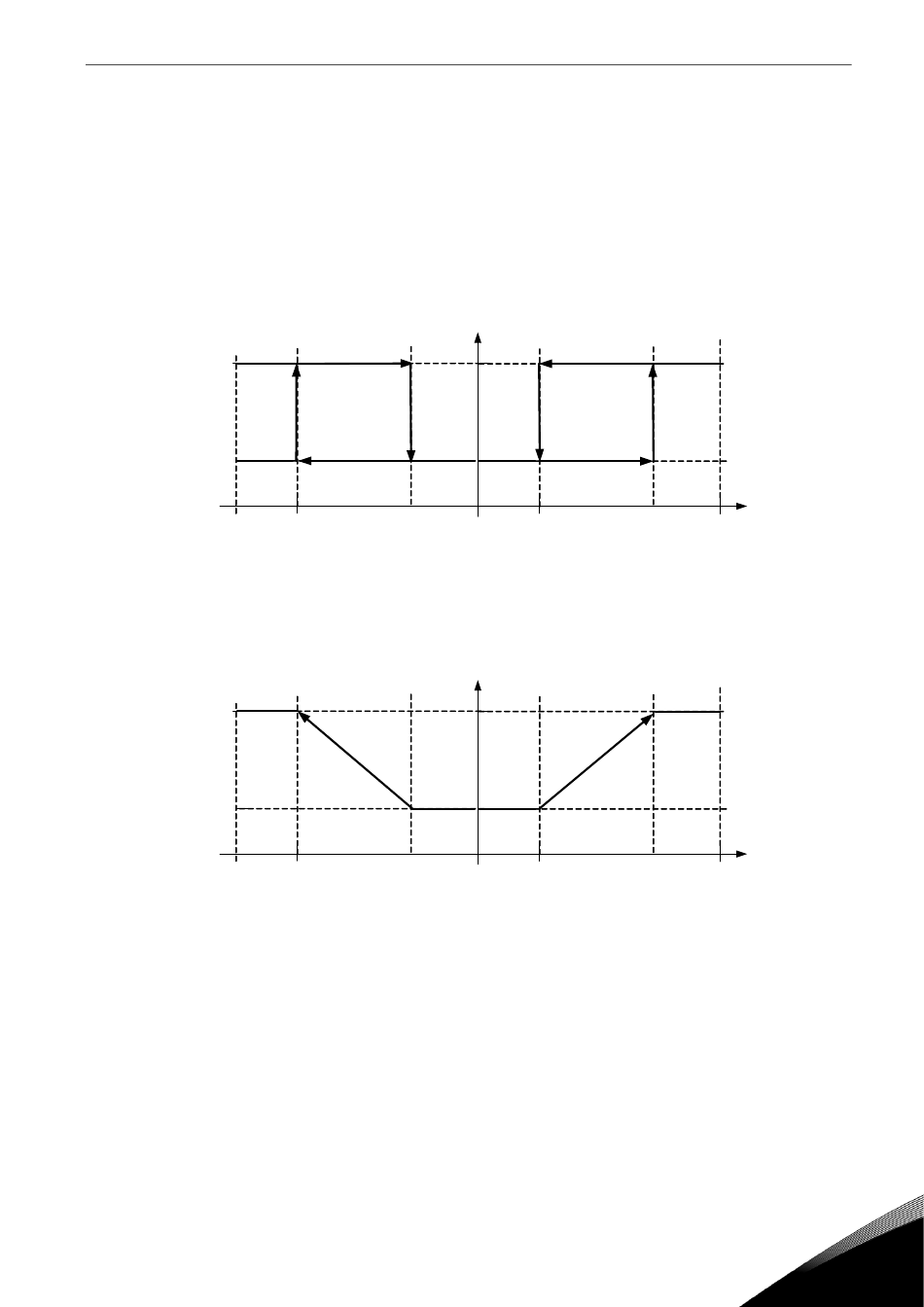

0 = SR ABS
Absolute input value is used to make a step change in the output between On and Off
values.
Control
On
Value
Control
Off
value
1 = Scale ABS
Absolute input value is scaled linearly between On and Off values.
Control
On
Value
Control
Off
value
2 = Scale ABS Inverted
Inverted absolute value is scaled linearly between On and Off values.
