Performance Tests
Probe Adjust Check
C-26

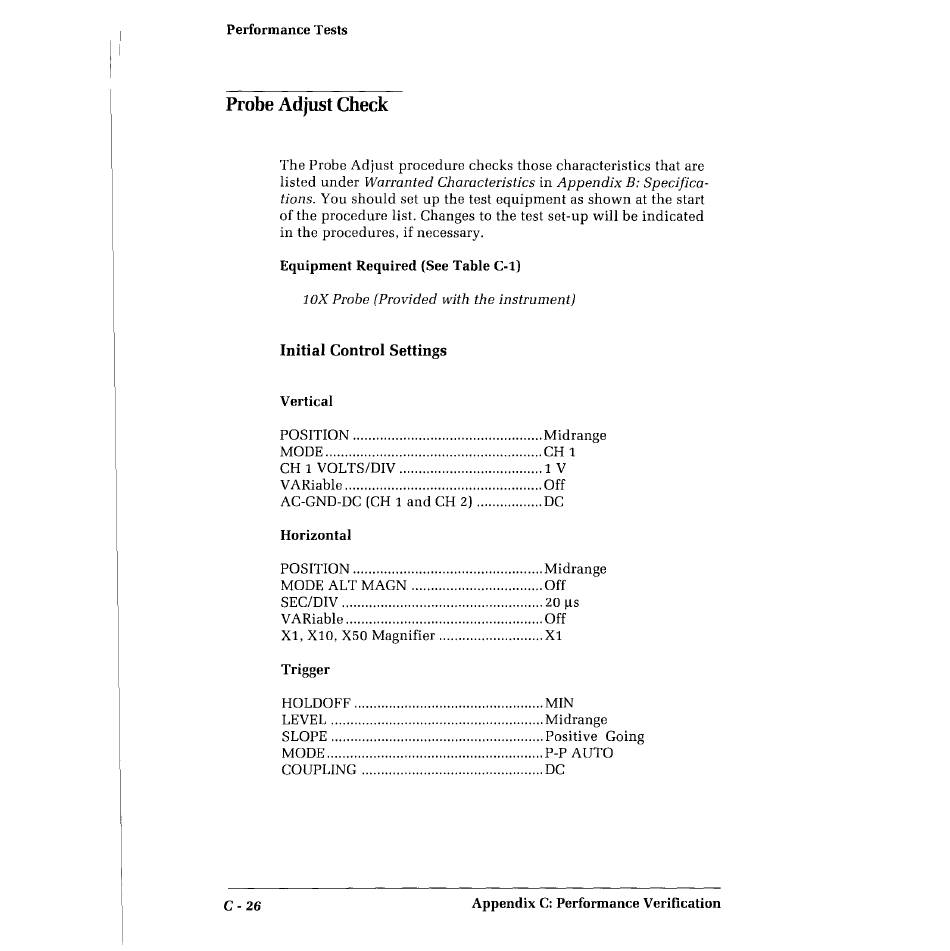

The Probe Adjust procedure checks those characteristics that are
listed under Warranted Characteristics in Appendix B: Specifica-
tions. You should set up the test equipment as shown at the start
of the procedure list. Changes to the test set-up will be indicated
in the procedures, if necessary.
Equipment Required (See Table C-1)
1
OX Probe (Provided with the instrument)
Initial Control Settings
Vertical
POSITION ................................................. Midrange
MODE ........................................................ CH 1
CH 1 VOL TS/DIV ..................................... 1 V
V ARiable ................................................... Off
AC-GND-DC (CH 1 and CH 2) ................. DC
Horizontal
POSITION ................................................. Midrange
MODE ALT MAGN .................................. Off
SEC/DIV .................................................... 20 µs
V ARiable ................................................... Off
Xl, XlO, X50
Magnifier ...........................
Xl
Trigger
HOLDOFF ................................................. MIN
LEVEL ....................................................... Midrange
SLOPE ....................................................... Positive Going
MODE ........................................................ P-P AUTO
COUPLING ............................................... DC
