Table B-18: Typical Characteristics: Triggering System - Tektronix 2212 User Manual

Typical Characteristics

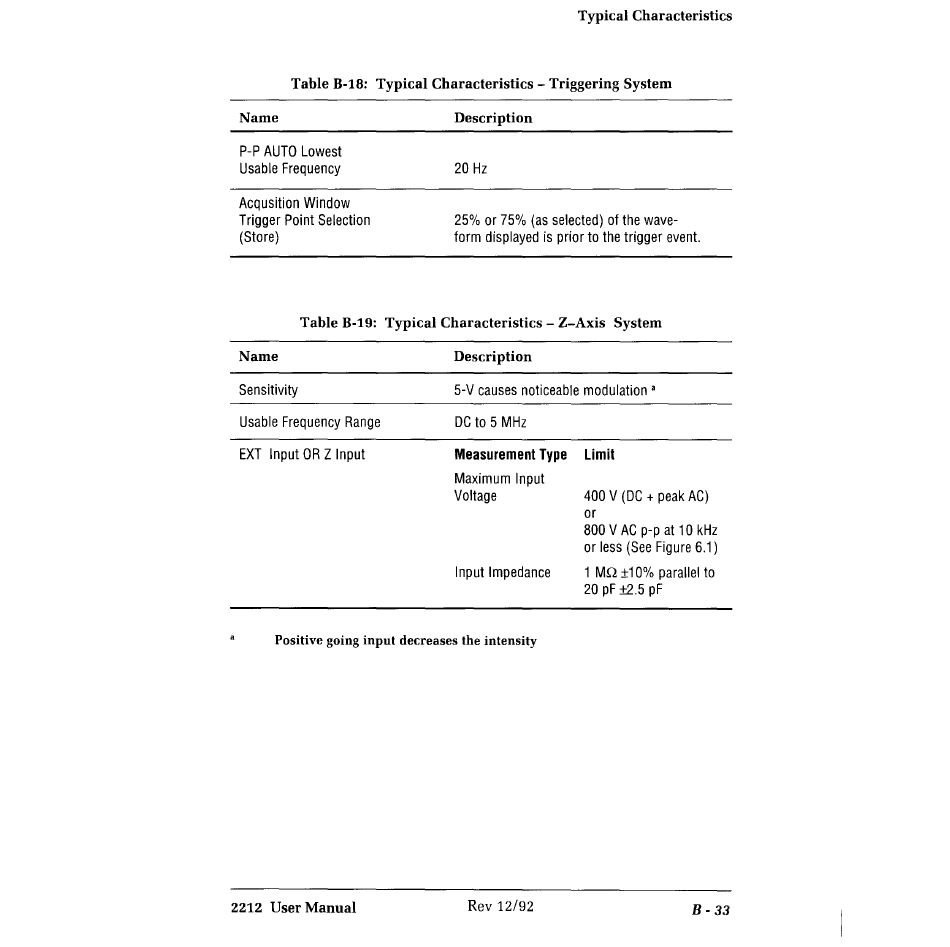

Table B-18: Typical Characteristics - Triggering System
Name
P-P AUTO Lowest
Usable Frequency
Acqusition Window
Trigger Point Selection
(Store)
Description
20 Hz
25% or 75% (as selected) of the wave-
form displayed is prior to the trigger event.
Table B-19: Typical Characteristics - Z-Axis System
Name
Sensitivity
Usable Frequency Range
EXT Input OR Z Input
Description
5-V causes noticeable modulation •
DCto5MHz
Measurement Type Limit
Maximum Input
Voltage
Input Impedance
400 V (DC + peak AC)
or
800 V AC p-p at 10 kHz
or less (See Figure 6.1)
1 Mn ±10% parallel to
20 pf ±2.5 pf
Positive going input decreases the intensity
2212 User Manual
Rev 12/92
B- 33
